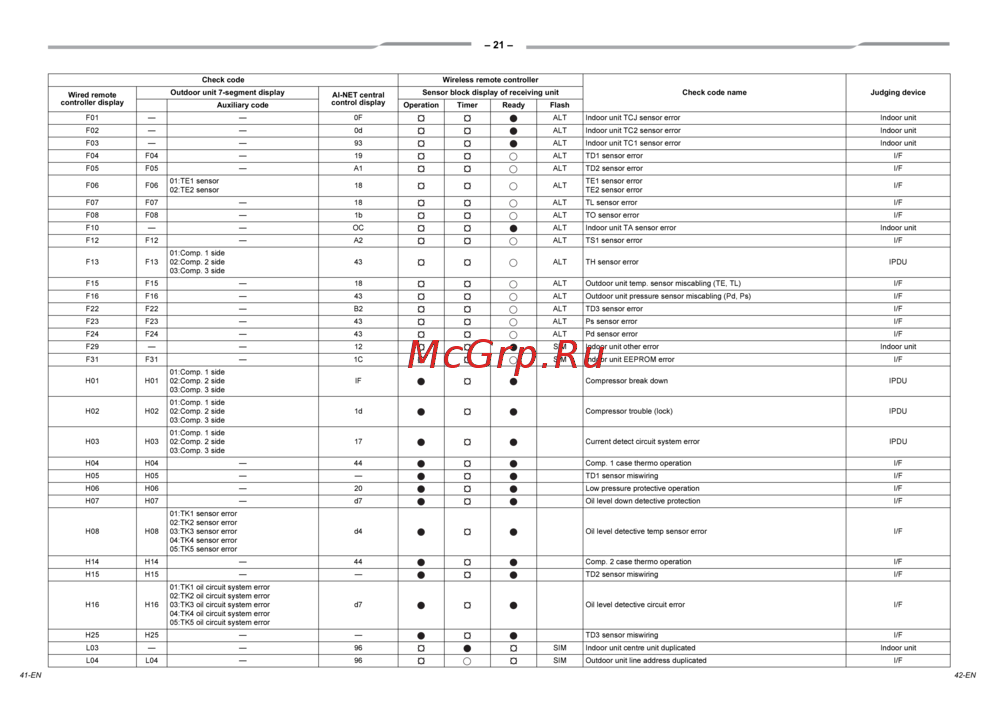

–21–
F01 — — 0F ALT Indoor unit TCJ sensor error Indoor unit
F02 — — 0d ALT Indoor unit TC2 sensor error Indoor unit
F03 — — 93 ALT Indoor unit TC1 sensor error Indoor unit
F04 F04 — 19 ALT TD1 sensor error I/F
F05 F05 — A1 ALT TD2 sensor error I/F
F06 F06
01:TE1 sensor
02:TE2 sensor
18 ALT
TE1 sensor error
TE2 sensor error
I/F
F07 F07 — 18 ALT TL sensor error I/F
F08 F08 — 1b ALT TO sensor error I/F
F10 — — OC ALT Indoor unit TA sensor error Indoor unit
F12 F12 — A2 ALT TS1 sensor error I/F
F13 F13
01:Comp. 1 side
02:Comp. 2 side
03:Comp. 3 side
43 ALT TH sensor error IPDU
F15 F15 — 18 ALT Outdoor unit temp. sensor miscabling (TE, TL) I/F
F16 F16 — 43 ALT Outdoor unit pressure sensor miscabling (Pd, Ps) I/F
F22 F22 — B2 ALT TD3 sensor error I/F
F23 F23 — 43 ALT Ps sensor error I/F
F24 F24 — 43 ALT Pd sensor error I/F
F29 — — 12 SIM Indoor unit other error Indoor unit
F31 F31 — 1C SIM Indoor unit EEPROM error I/F
H01 H01
01:Comp. 1 side
02:Comp. 2 side
03:Comp. 3 side
IF Compressor break down IPDU
H02 H02
01:Comp. 1 side
02:Comp. 2 side
03:Comp. 3 side
1d Compressor trouble (lock) IPDU
H03 H03
01:Comp. 1 side
02:Comp. 2 side
03:Comp. 3 side
17 Current detect circuit system error IPDU
H04 H04 — 44 Comp. 1 case thermo operation I/F
H05 H05 — — TD1 sensor miswiring I/F
H06 H06 — 20 Low pressure protective operation I/F
H07 H07 — d7 Oil level down detective protection I/F
H08 H08
01:TK1 sensor error
02:TK2 sensor error
03:TK3 sensor error
04:TK4 sensor error
05:TK5 sensor error
d4 Oil level detective temp sensor error I/F
H14 H14 — 44 Comp. 2 case thermo operation I/F
H15 H15 — — TD2 sensor miswiring I/F
H16 H16
01:TK1 oil circuit system error
02:TK2 oil circuit system error
03:TK3 oil circuit system error
04:TK4 oil circuit system error
05:TK5 oil circuit system error
d7 Oil level detective circuit error I/F
H25 H25 — — TD3 sensor miswiring I/F
L03 — — 96 SIM Indoor unit centre unit duplicated Indoor unit
L04 L04 — 96 SIM Outdoor unit line address duplicated I/F
Check code Wireless remote controller
Check code name Judging device
Wired remote
controller display
Outdoor unit 7-segment display
AI-NET central
control display
Sensor block display of receiving unit
Auxiliary code Operation Timer Ready Flash
41-EN 42-EN
