2 Design and function
eikon e2s Installation and Operating Manual CE 12

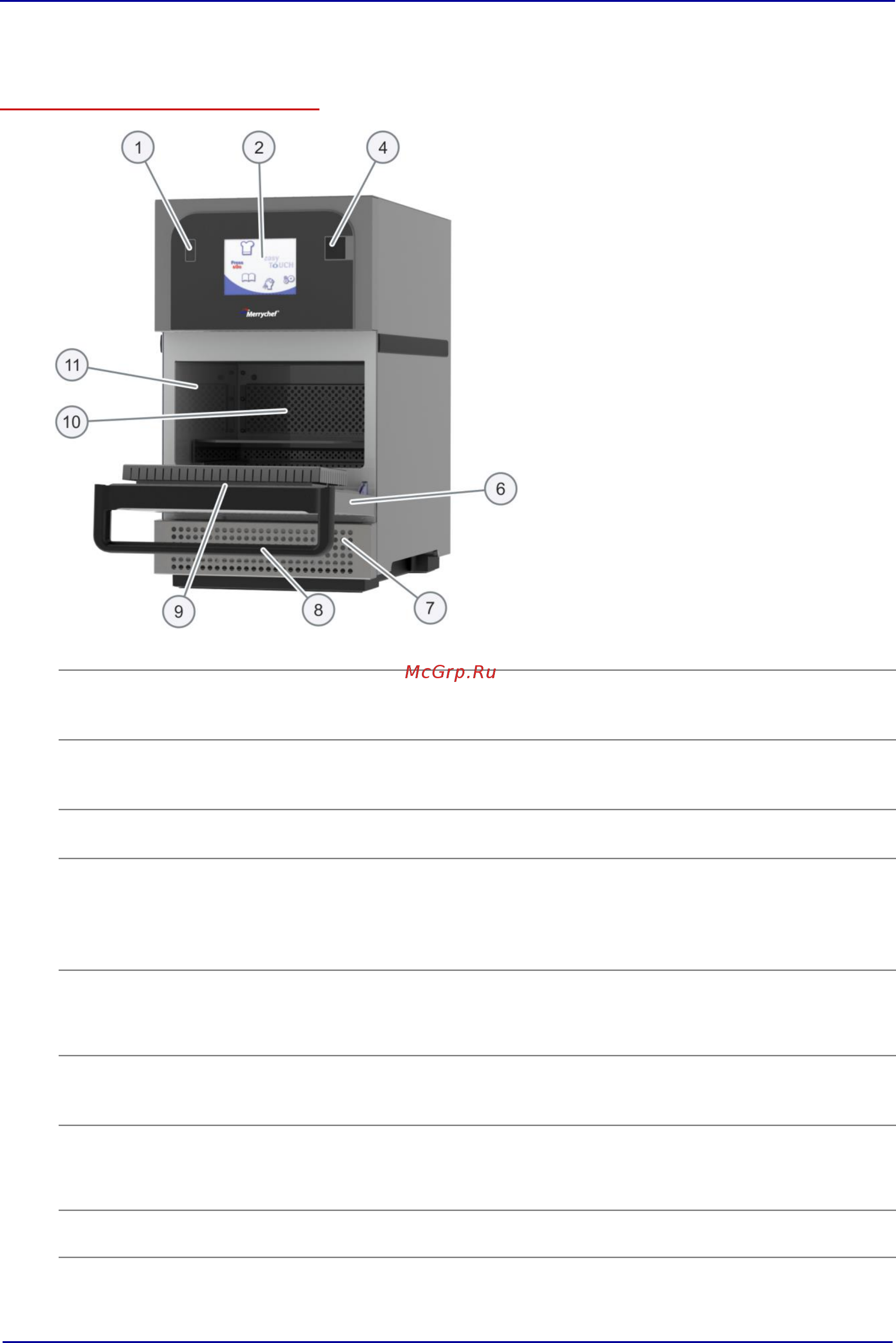

2.1 Design and function of the microwave combination oven
Parts and their function
Item
Name
Function
1
ON/OFF appliance switch
Used to turn the microwave combination oven on and off.
Turning this switch off does not isolate the appliance from the electricity
supply.
2
easyToUCH® screen
control panel
When the appliance is switched on the easyToUCH® screen illuminates the
user interface.
See 'Cooking procedures' on page 61 for details.
3
Nameplate
(no picture)
Located on the rear panel of the appliance the nameplate states the serial
number, model type and electrical specifications.
4
USB port
A USB socket located under the cover allows updates to programs stored on
the appliance.
See USB MenuConnect® Operating Instructions.
See 'Cooking procedures' on page 61 section of this manual, for details of
updating cooking profiles.
5
Air outlets
(no picture)
Air used to cool internal components and steam from the cavity escape
through the air outlet vents located on the rear of the appliance. The air
outlets must be kept free from obstruction and they will not allow microwave
energy to escape into the environment.
6
Appliance door
The door is a precision-made energy barrier with three microwave safety
interlocks. Always keep it clean and do not use it to support heavy objects.
See 'Cleaning procedures' on page 91.
7
Air filter
The air filter situated at the lower front of the appliance is part of the
ventilation system. Keep it free of obstruction and clean it daily as described
under ‘Cleaning procedures’ on page 91. The appliance will not operate
without the air filter fitted.
8
Door handle
The door handle is a rigid bar which is pulled downwards and away from the
appliance to open it.
