1 General information
eikon e2s Installation and Operating Manual CE 8
1.4 Identifying your microwave combination oven

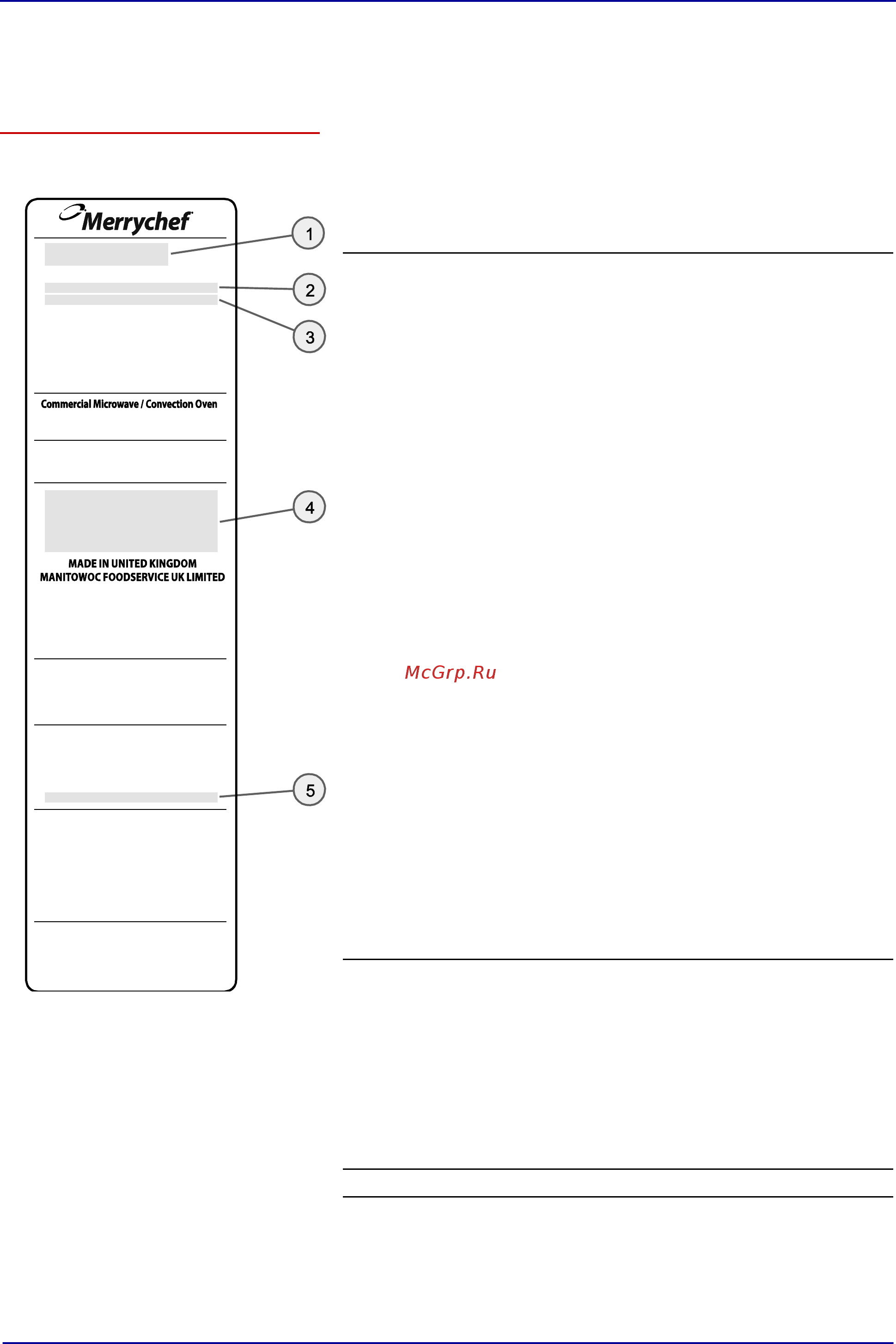

Position of nameplate
The nameplate is located on the rear of your microwave combination oven.
1
Model number
eikon e2s
2
Elements of the item
number
Label
Meaning
Model
e2s
Power output convection
D
2200W
F
2200W / 1300W
G
2200W / 900W
Power output microwave
B
2000W (High Power version)
X
1000W (Standard Power
version)
Voltage
30
230V
MV5
220-230V / 50Hz
MV6
208-240V / 60Hz
00
200V
20
220V
Frequency
5
50Hz
6
60Hz
Lead
A - Z
Example: H = L+N+E (4mm EU)
Plug
A - Z
Example: E = 3-pin plug
Communication
L
USB + LAN
U
USB
Version
A, B
A, B (pre-production)
1, 2, ...
1, 2, ... (serial production)
Accessory / Customer
CF
"Trend" exterior
CL
"Classic" exterior
WW
Specific customer
Region / Country
EU
Europe
US
United States of America
3
Elements of the serial
number
Label
Meaning
Year of manufacture
15
2015
16, ...
2016, ...
Month of manufacture
01
January
02, ...
February, ...
Place of manufacture
2130
Sheffield (UK)
Production number
12345
4
Technical data
5
Date of manufacture
