ENGLISH

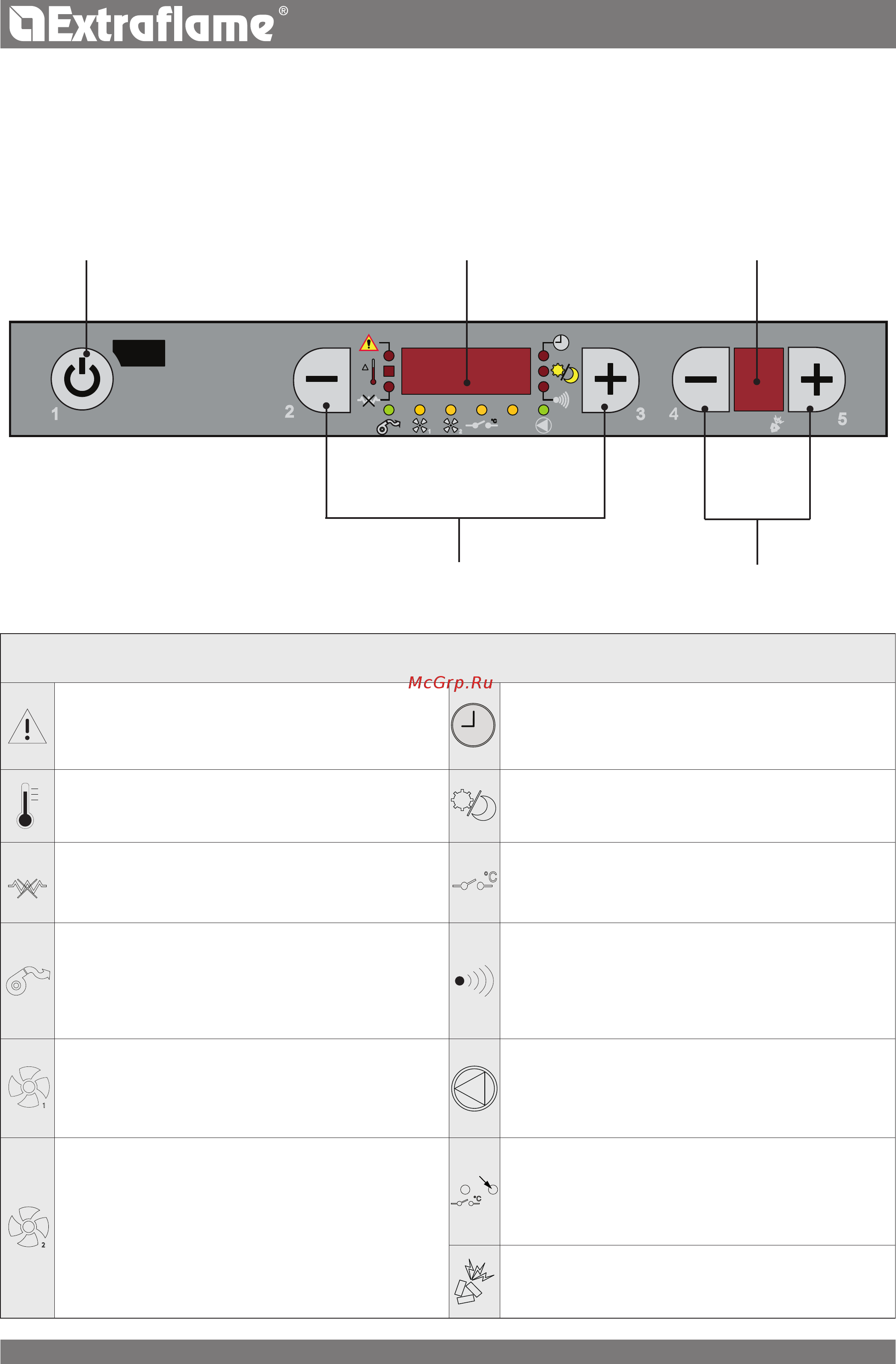

The Display DescripTion of conTrols anD symbols
ON/OFF
BUTTON
DISPLAY OF VARIOUS
TEXT MESSAGES
DISPLAY
OF POWER
TEMPERATURE SETTING
OPERATION POWER ADJUSTMENT
Display icons key
Indicates the presence of an alarm.
On: indicates the presence of an alarm
O: indicates the absence of alarms
Flashing: indicates the deactivation of the depression
sensor.
It indicates weekly programming operation
Indicator on = weekly programming active
Indicator o = weekly programming not active
Indicates the room temperature status
O = the T° read by the probe is over the set temperature
set
On = the T° read by the probe is below the set temperature
indicates the stby function
O = stby deactivated
On = stby activated
Ign-plug
O = ign-plug active
On = ign-plug deactivated
Flashing = ignition phase
Not used
It indicates functioning of the fumes motor
O = fumes motor not working
On = fumes motor working
Flashing = breakdown
it indicates the communication between remote control
and stove. Every time a key is pressed on the remote
control the indicator must switch on. if the indicator is
always on it indicates that the communication between
remote control and stove is blocked.*
1
it indicates functioning of the tangential fan
O = not working
On = working
Flashing = The motor is operating in COMFORT momde
(where present)
Not used
2
Not used
Additional ducted thermostat input status:
On: closed contact (to be reached)
Flashing: the motor is running at minimum, in modulation
mode (input=open)
It indicates the operation of the pellet feed motor.
O = pellet feed motor deactivated
On = pellet feed motor active.
