La Nordica Annabella [10/36] Graziosa plus irma plus novella plus sibilla plus

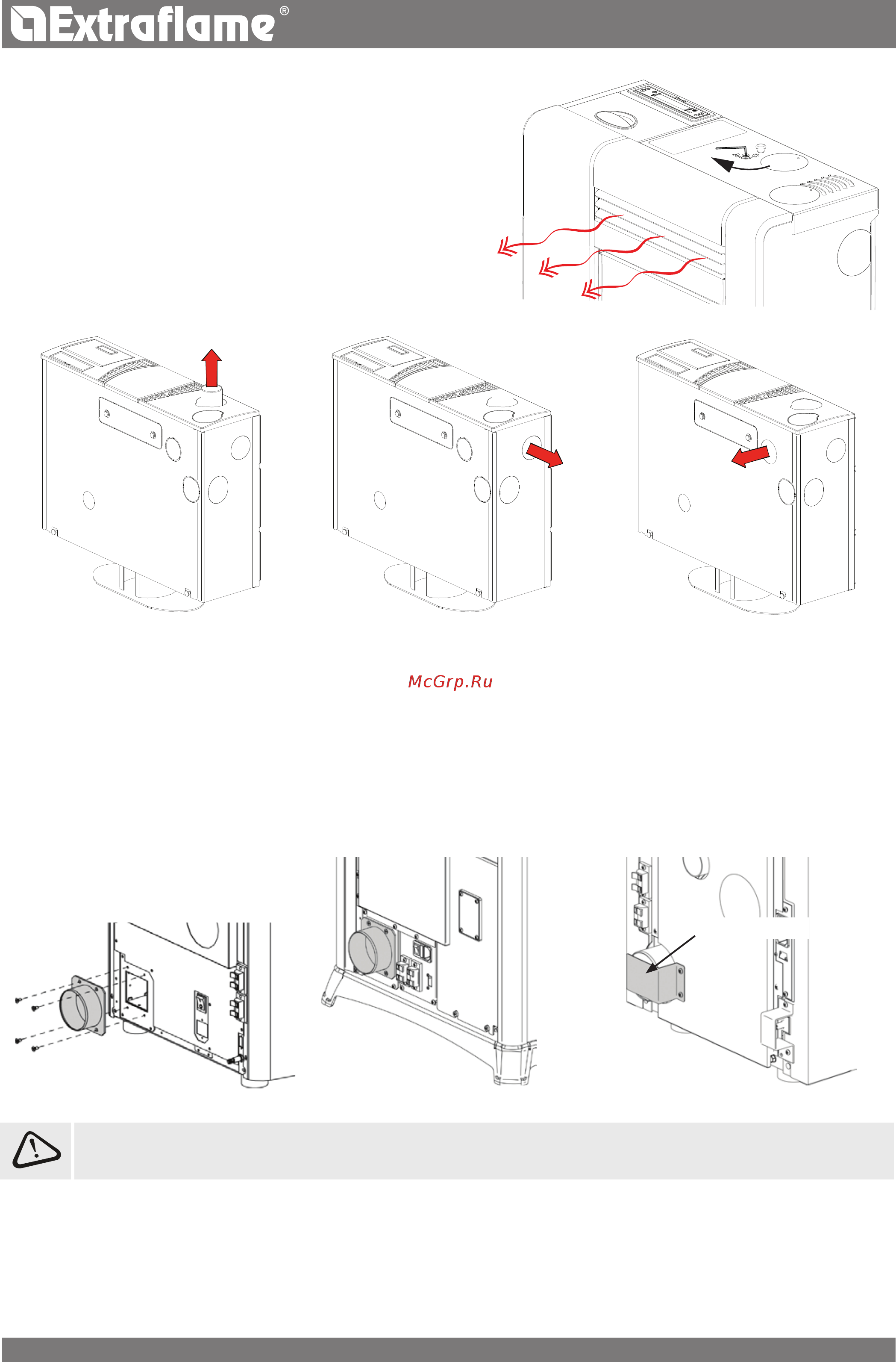

![La Nordica Annabella [10/36] Graziosa plus irma plus novella plus sibilla plus](/views2/1335503/page10/bga.png)
IRMA PLUS GRAZIOSA PLUS - SIBILLA PLUS
NOVELLA PLUS
ENGLISH
emmA plUs & TOsCA plUs
The EMMA PLUS & TOSCA pLUS model oer the possibility to decide where to aim the hot air ow thanks to 2 gate valves moved by 2 levers
positioned inside the pellet tank, which must be activated via the poker supplied
(see gures below).
One can use both outlets on the back of the appliance
Features:
ducting outlet diameter: 80 mm
maximum recommended ducting length 6m
it is not possible to thermostat the ducting
possibility to adjust the fan speed in percentage.
POSITION "C"
POSITION "A"
GRAZIOsA plUs, IRmA plUs, NOvellA plUs & sIbIllA plUs
For GRAZIOSA PLUS, IRMA PLUS, NOVELLA PLUS & SIBILLA PLUS model it is mandatory to duct the hot air.
Features:
ducting outlet diameter: 80 mm
maximum recommended ducting length 6m GRAZIOSA PLUS, IRMA PLUS & SIBILLA PLUS
maximum recommended ducting length 8m NOVELLA PLUS
possibility to thermostat the ducting via an additional thermostat
possibility to adjust the fan speed in percentage.
Remove the cover!
fOR THIs pRODUCT IT Is mANDATORy TO DUCT THe HOT AIR. IT Is NOT pOssIble TO DIsAble THe DUCTING mOTOR.
DO NOT COveR OR ClOse THe DUCTING!
The ducting extension is found in the accessory
pack inside the stove. It is mounted by means of
the 4 supplied screws.
10
