GASTRONOMIEMÜHLEN
|
HORECA GRINDER
3. Description

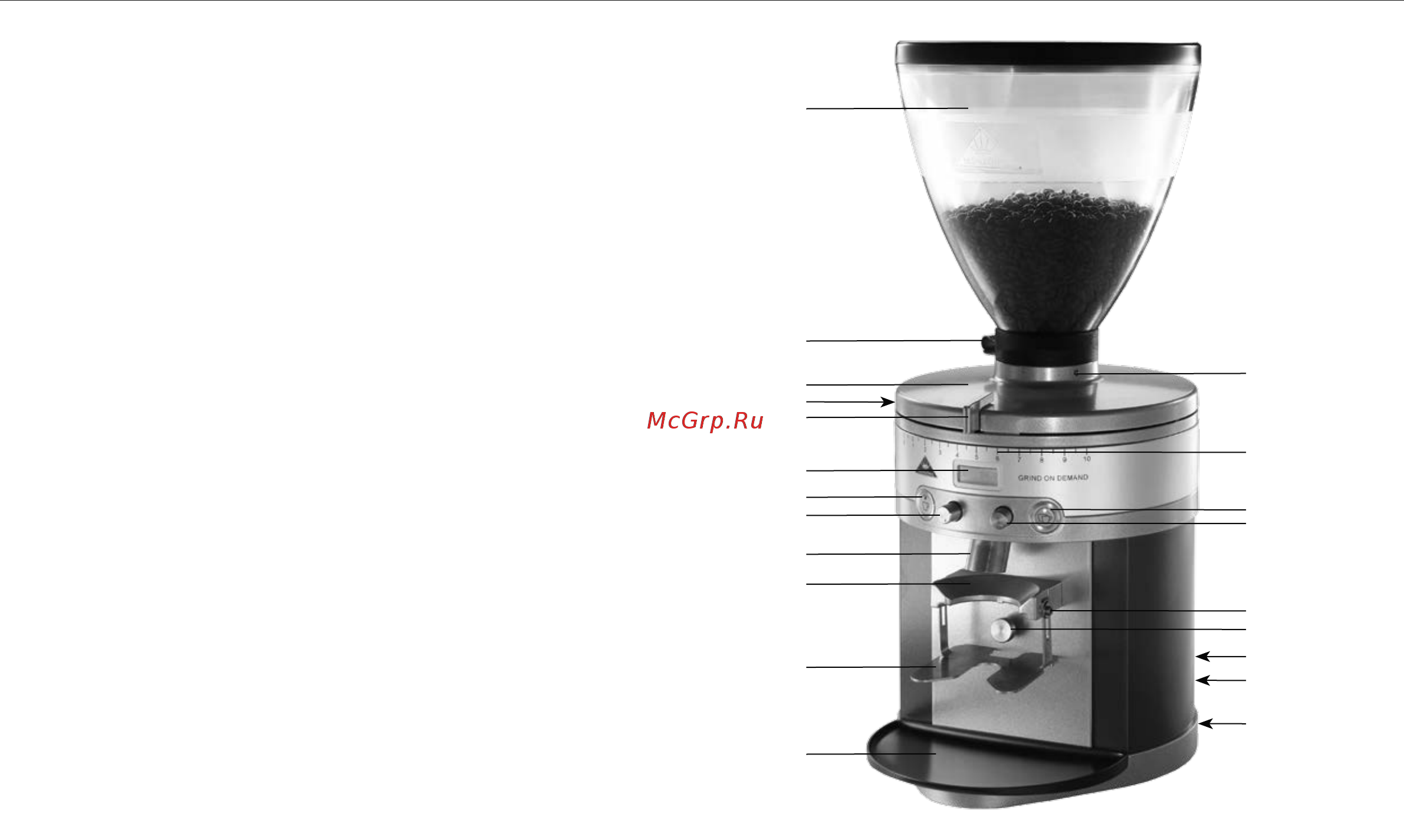

The main components and operating elements are pictured in
the illustration.
Pos. 1 Hopper with lid
Pos. 2 Lock screw for hopper
Pos. 3 Grinding fineness adjustment*
Pos. 4 Lock screw for grind adjustment lid
Pos. 5 Grind adjustment lid
Pos. 6 Grinding fineness scale
Pos. 7 Display
Pos. 8 Single shot pre-selection button
Pos. 9 Single shot timer
Pos. 10 Double shot pre-selection button
Pos. 11 Double shot timer
Pos. 12 Spout
Pos. 13 Port-a-filter mounting
Pos. 14 Port-a-filter rest
Pos. 15 Fastening screw for Port-a-filter rest
Pos. 16 Start / Stop switch
Pos. 17 Drip tray
Pos. 18 Hopper slide
Pos. 19 Main switch (back)
Pos. 20 Trip switch (back)
Pos. 21 Power cable (back)
* for Vario with adjustment screw on the lid
1
18
3
7
8
12
13
14
17
9
4
5
2
6
10
11
15
19
20
21
16
6
