Hoshizaki FM-80KE-N [6/41] English

ENGLISH

For the U.K. and the Republic of Ireland only

* The wires in the mains lead are coloured in accordance with the following code:

Green & Yellow = Earth

Blue = Neutral

Brown = Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the

terminals in your plug, proceed as follows:

The wire which is coloured Green-and-Yellow must be connected to the terminal in the plug which is marked with the letter

E or by the symbol

or coloured Green or Green-and-Yellow. The wire which is coloured Blue must be connected to the

terminal which is marked with the letter N or coloured Black. The wire which is coloured Brown must be connected to the

terminal which is marked with the letter L or coloured Red.

* Should the socket outlets in the installation site not be suitable for the plug supplied with your product, the plug must be

removed (cut off if it is moulded on plug) and an appropriate plug tted.

If the non-rewirable plug has been cut from the power supply cord, it must be disposed of. There should be no attempt to

reuse it. Inserting such a plug into a socket elsewhere presents a serious risk of electrical shock.

* The non-rewirable plug must never be used without a fuse cover being tted.

The correct replacement for the detachable fuse cover is identiable from the manufacturer’s reference number stamped on

the plug.

Supply of replacement fuse covers can be obtained from Hoshizaki Parts/Service Centres.

Fuses should be rated at 13A and approved to BS 1362.

7. WATER SUPPLY AND DRAIN CONNECTIONS

WARNING

Connect to potable cold water supply only.

* The connections to the mains water supply must be made in accordance with the countries’ current requirements of the Water

Supply or Water Fittings Regulations.

* Icemaking water must be potable water. Where scaling can be caused by water quality, installation of an external lter or

softener is recommended. Contact your local water treatment professional or Hoshizaki service agent.

* Water supply pressure should be minimum 0.05 MPa (0.5 bar) and maximum 0.8 MPa (8 bar). If the pressure exceeds 0.8 MPa (8

bar), use a proper pressure reducing valve. Do NOT throttle back the supply tap.

* A plumbing permit and services of a licensed plumber may be required in some areas.

* The icemaker drain is gravity ow, so ensure drain hose has an adequate pitch or fall.

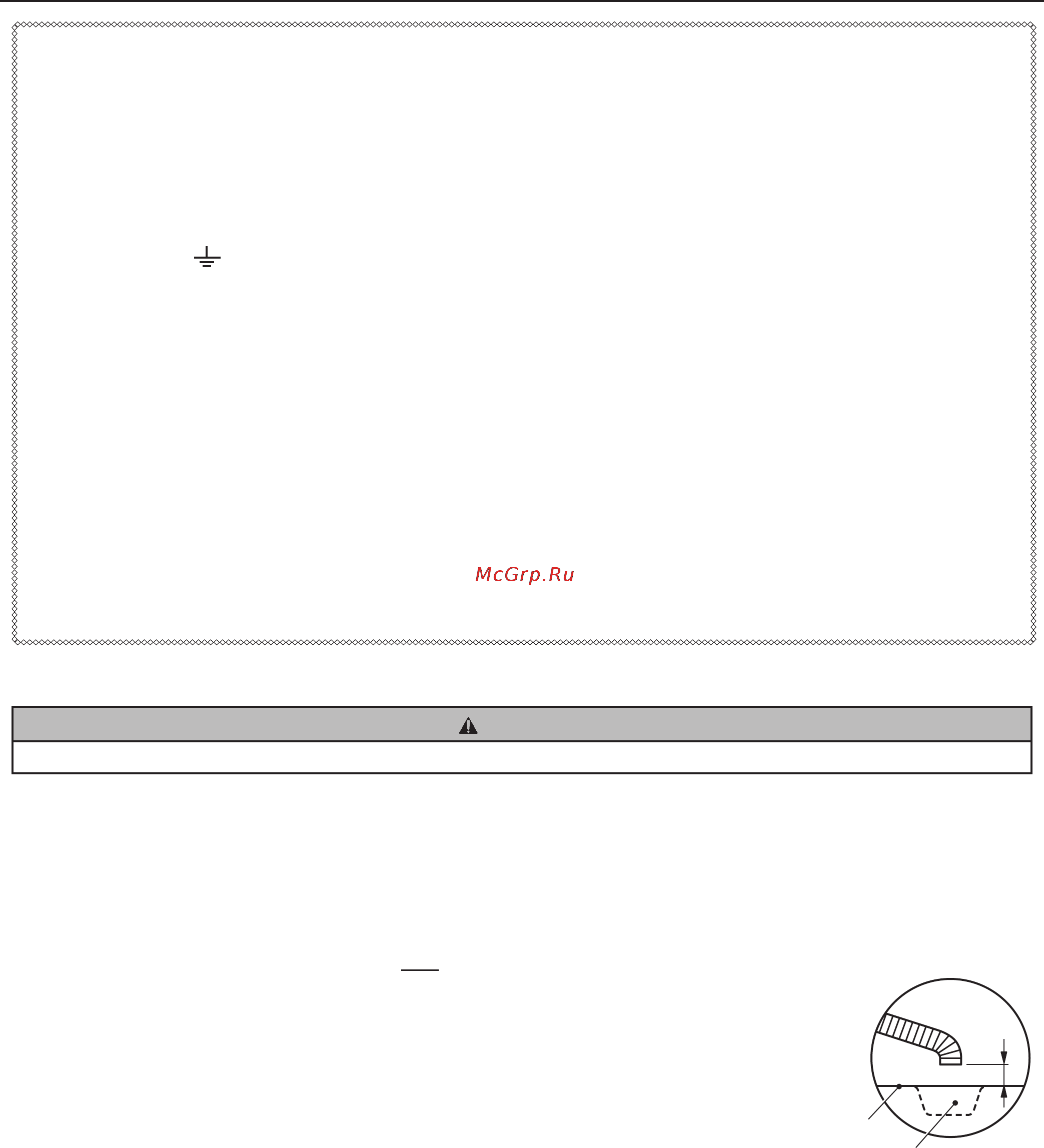

* Drain lines should not be installed directly to the sewer system. A vertical air gap of a minimum of 5

cm should be between the end of the drain hoses from the icemaker and the oor drain.

* Be sure to use the new hose-sets supplied with the appliance. Do not reuse any old hose-sets.

1) Attach the angled end of exible inlet hose (accessory) to the G3/4 tting on the rear of the icemaker as indicated, ensuring

rubber sealing washer is correctly positioned. Hand tighten sufciently to provide leak free joint.

2) Attach the other end of inlet hose to the water tap, noting washer is correctly positioned before hand tightening as above. It is

a wise precaution to have a stop valve within easy reach.

3) Hand tighten grey exible outlet hose (accessory) onto the R3/4 tting on the rear of the icemaker as indicated, ensuring

rubber washer is correctly positioned to obtain a leak free joint. The hose can be cut to length as necessary to suit position of

main drain.

5cm air gap

Drain

Floor
