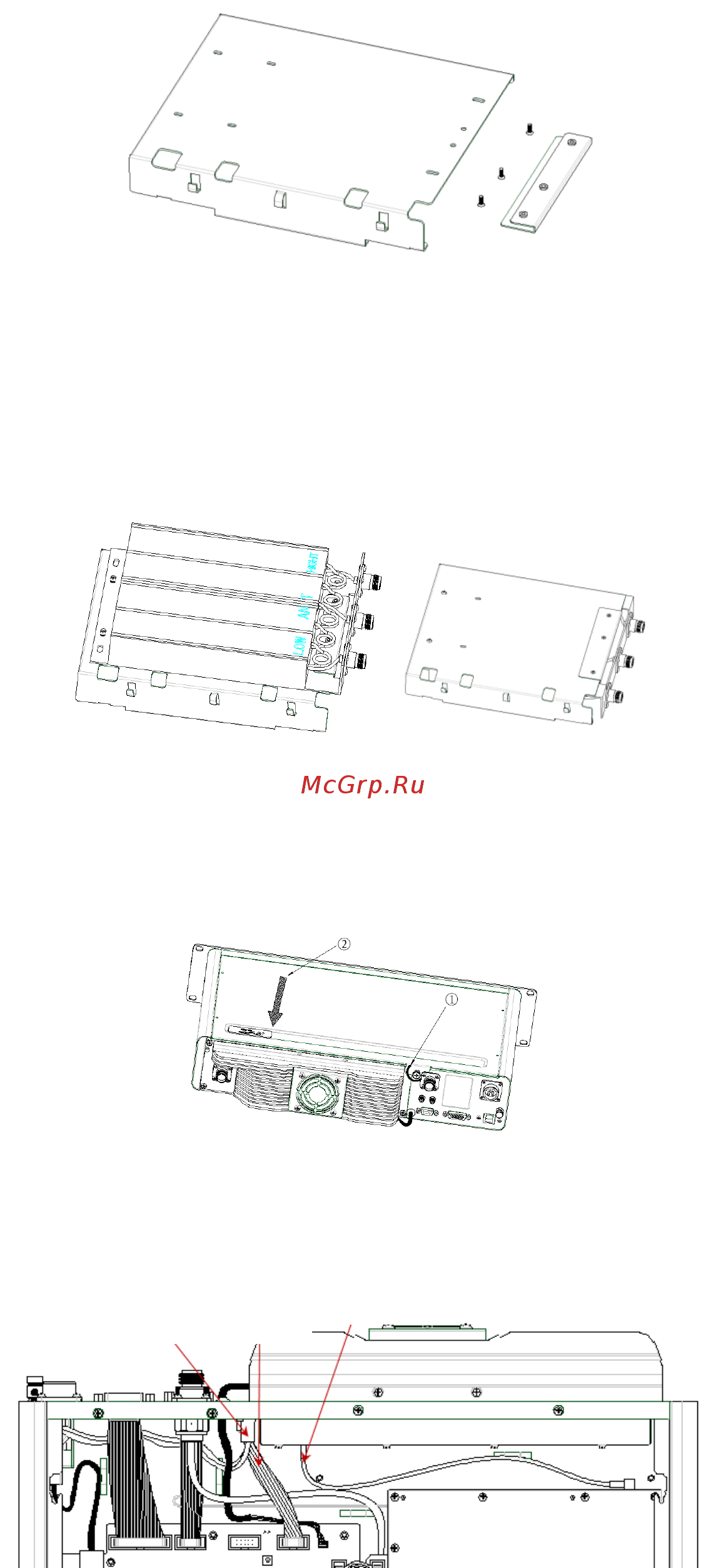

10
2. Install the duplexer onto the bracket. Be sure to observe the specifications of two
antenna interfaces on the duplexer, to determine which one should be connected to
the transmitter. The interface connecting the transmitter should be close to PA
module to reduce RF loss, as shown below:
3. Loosen the screw at the back of the top cover, and then pull the top cover to remove
it.
4. Loosen the 6 screws locking the PA heat sink, disconnect all power, data and RF
cables, and finally remove the heat sink.
5. Connect the RF cable, as shown below.
Power Cord
Data Cable
RF Cable
