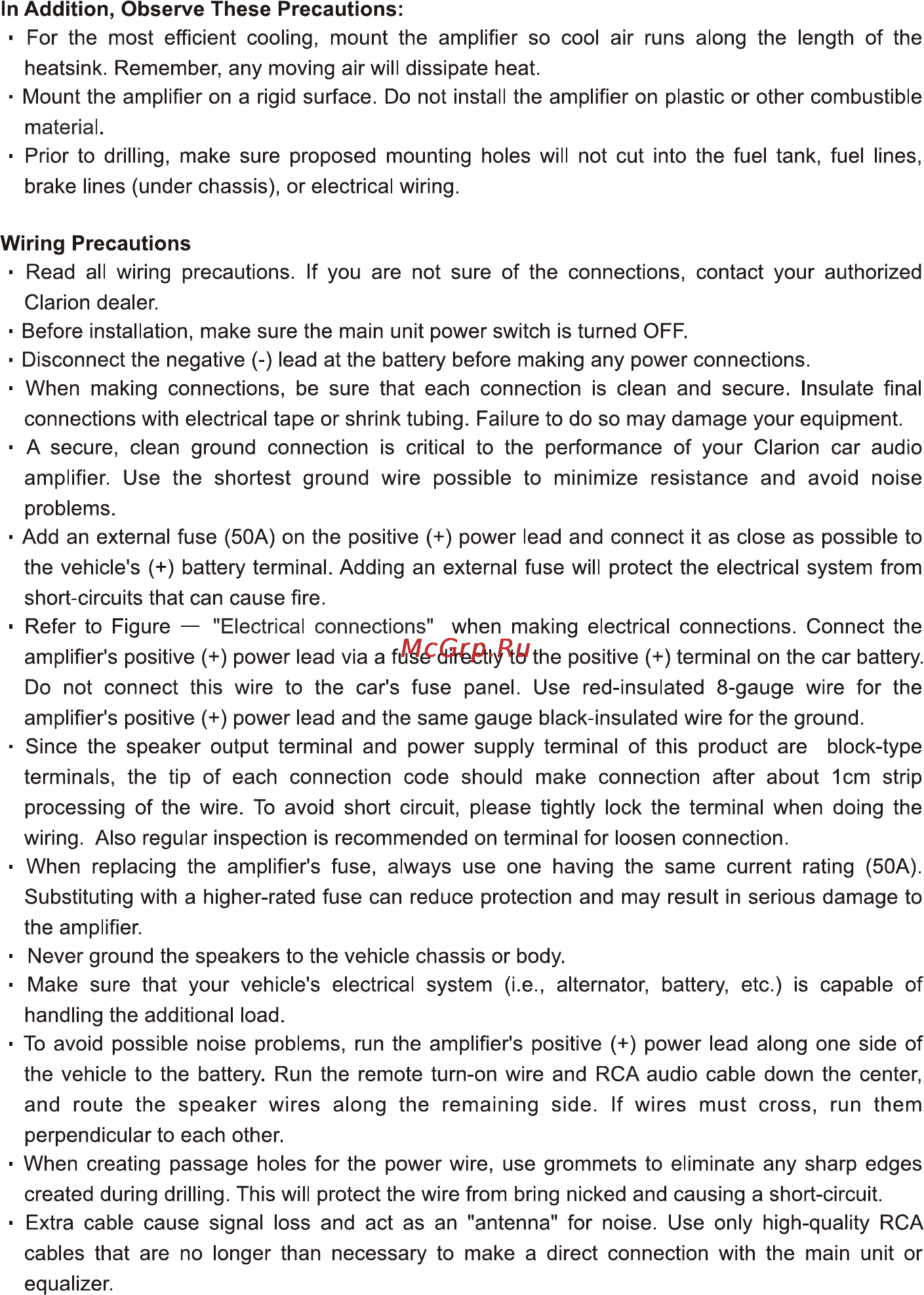

In Addition Observe These Precautions For the most efficient cooling mount the amplifier so cool air runs along the length of the heatsink Remember any moving air will dissipate heat Mount the amplifier on a rigid surface Do not install the amplifier on plastic or other combustible material Prior to drilling make sure proposed mounting holes will not cut into the fuel tank fuel lines brake lines under chassis or electrical wiring Wiring Precautions Read all wiring precautions If you are not sure of the connections contact your authorized Clarion dealer Before installation make sure the main unit power switch is turned OFF Disconnect the negative lead at the battery before making any power connections When making connections be sure that each connection is clean and secure Insulate final connections with electrical tape or shrink tubing Failure to do so may damage your equipment A secure clean ground connection is critical to the performance of your Clarion car audio amplifier Use the shortest ground wire possible to minimize resistance and avoid noise problems Add an external fuse 50A on the positive power lead and connect it as close as possible to the vehicle s battery terminal Adding an external fuse will protect the electrical system from short circuits that can cause fire Refer to Figure Electrical connections when making electrical connections Connect the amplifier s positive power lead via a fuse directly to the positive terminal on the car battery Do not connect this wire to the car s fuse panel Use red insulated 8 gauge wire for the amplifier s positive power lead and the same gauge black insulated wire for the ground Since the speaker output terminal and power supply terminal of this product are block type terminals the tip of each connection code should make connection after about 1cm strip processing of the wire To avoid short circuit please tightly lock the terminal when doing the wiring Also regular inspection is recommended on terminal for loosen connection When replacing the amplifier s fuse always use one having the same current rating 50A Substituting with a higher rated fuse can reduce protection and may result in serious damage to the amplifier Never ground the speakers to the vehicle chassis or body Make sure that your vehicle s electrical system i e alternator battery etc is capable of handling the additional load To avoid possible noise problems run the amplifier s positive power lead along one side of the vehicle to the battery Run the remote turn on wire and RCA audio cable down the center and route the speaker wires along the remaining side If wires must cross run them perpendicular to each other When creating passage holes for the power wire use grommets to eliminate any sharp edges created during drilling This will protect the wire from bring nicked and causing a short circuit Extra cable cause signal loss and act as an antenna for noise Use only high quality RCA cables that are no longer than necessary to make a direct connection with the main unit or equalizer
