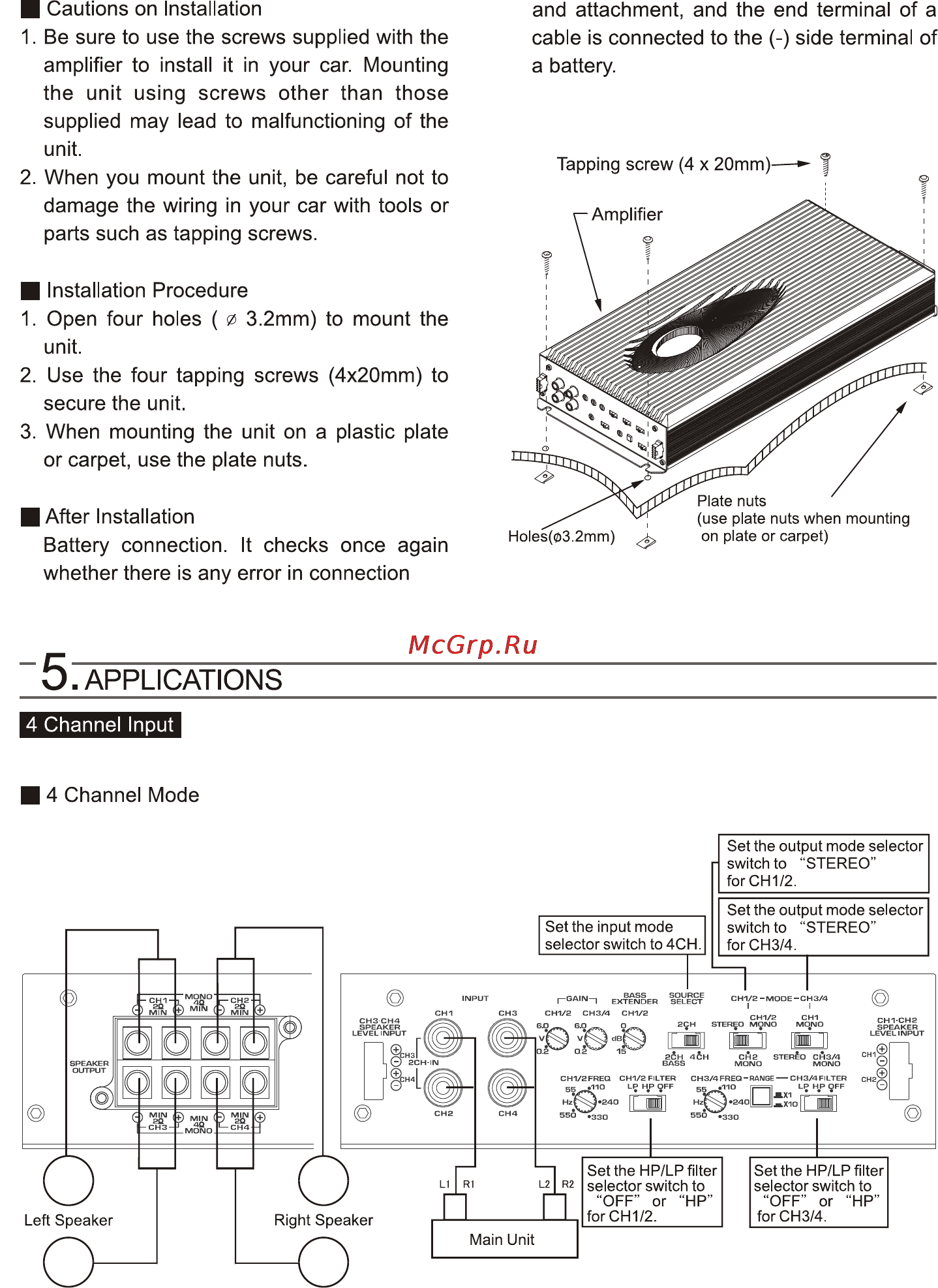

Cautions on Installation 1 Be sure to use the screws supplied with the amplifier to install it in your car Mounting the unit using screws other than those supplied may lead to malfunctioning of the unit 2 When you mount the unit be careful not to damage the wiring in your car with tools or parts such as tapping screws and attachment and the end terminal of a cable is connected to the side terminal of a battery Installation Procedure 1 Open four holes 0 3 2mm to mount the unit 2 Use the four tapping screws 4x20mm to secure the unit 3 When mounting the unit on a plastic plate or carpet use the plate nuts After Installation Battery connection It checks once again whether there is any error in connection 5 APPLICATIONS 4 Channel Input 4 Channel Mode Main Unit
