Portion Control

After cleaning pump and during pump assembly, determine the amount of product you

would like to be dispensed with each full stroke of the pump. Gaging collars are included

with the pump to allow you to change the portion control.

4. INSTALL desired number of gaging collars onto threaded top of pump tube to set

PORTION CONTROL. Each gaging collar added reduces the portion per pump

stroke by .25 ounces.

Portion desired per pump

stroke

Number of Gaging

Collars Needed

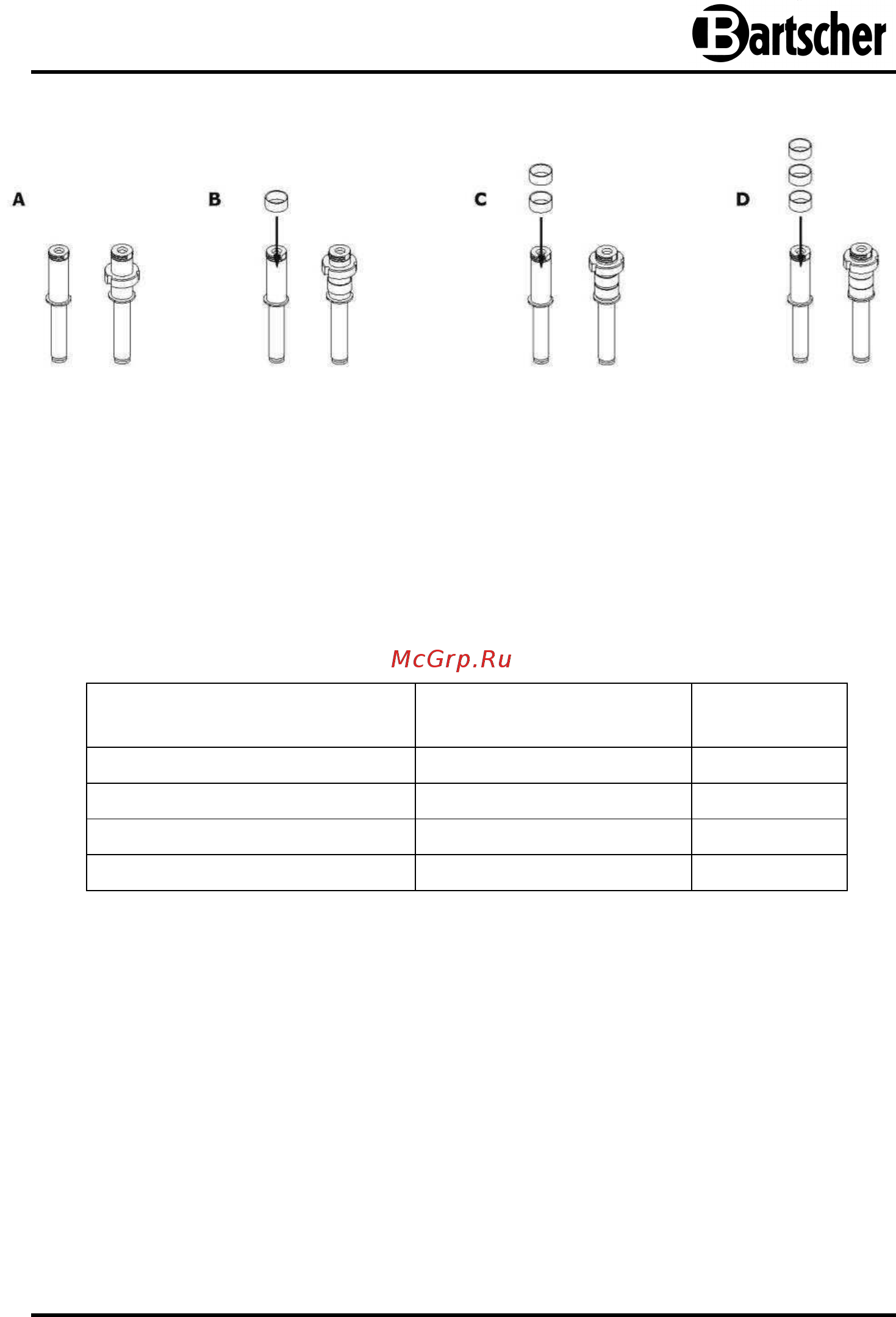

Illustration

1 Ounce 0

3/4 Ounce 1

1/2 Ounce 2

1/4 Ounce 3

5. Completely assemble pump. See „Pump Assembly“.

6. TEST PORTION CONTROL. Put pump in product container and operate pump

several times until only product without air bubbles is delivered with each stroke of

the pump. Then measure the amount of product being delivered through the

discharge tube with each stroke of the pump to assure portion control is satisfactory.
