BEST Shelf [12/40] English

English

in compliance with the instructions provided.

Wear gloves when carrying out installation and

maintenance operations.

AIR VENT

(for ducting versions)

! Prepare the hole and the air vent duct (150 mm

diameter).

! Use a duct of the minimum indispensible length.

! Use a duct with as few elbows as possible (maximum

elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct with an as smooth as possible inside.

! Do not connect the hood to smoke exhaust ducts

stoves, etc).

! For the air vents comply with the provisions laid down

by the competent authorities.

In addition, the air must not be evacuated through a

purpose.

! Fit air intakes in the room to prevent the hood from

creating a negative pressure in the room (which must

not exceed 0.04 mbar); if the hood is used at the

same time as non-electrical equipment (gas-, oil- and

sucked in by the heat source.

FILTERING OR DUCTING VERSION ?

Decide from the outset which type is to be installed.

in the ducting version (if possible).

Ducting version

through an exhaust duct (diameter 150 mm).

Filtering version

back into the room.

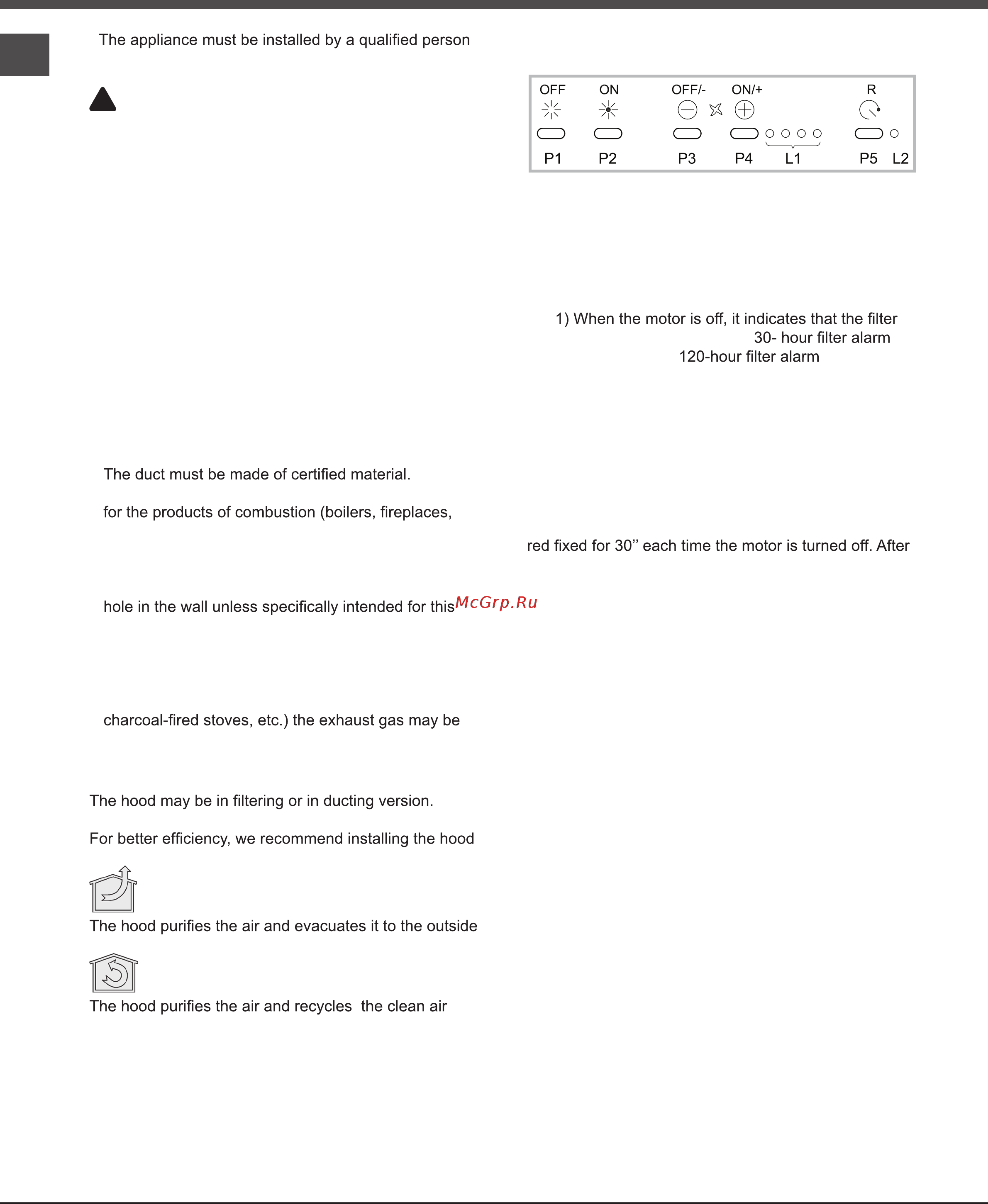

CONTROLS

P1: Lights Off.

P2: Lights On.

P3: Motor Off / Speed -. when held down, the motor is

turned off storing the current speed.

P4: Motor On / Speed +.

P5: 5’ Timer Delay / Filter Alarm Reset function.

L1: The 4 green LEDs indicate set speed.

L2:

alarm is active ON RED FIXED:

ON RED BLINKING:

2) When the motor is on, it indicates that the 5’ timer

function is active by BLINKING GREEN.

5’ timer:

When the function is active, L2 blinks. The motor turns

off after 5’.

Filter alarm:

After 30h of motor operation, the LED L2 comes on

120h of motor operation, the LED L2 comes on red

blinking for 30’’ each time the motor is turned off. To

reset this alarm, press P5 for 2’’ during blinking.

If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

Only for hoods equipped with electronic control:

The 4th speed (intensive) is automatically lowered

to 3rd speed after 5 minutes of operation to

optimise energy consumption.

- If the hood is left on (lights and/or motor), after 10

hours in the absence of commands from the user,

it will automatically switch to OFF condition with all

services switched off.

- The Buzzer emits a “beep” each time that a

command is set from the keyboard or remote

control (optional).

- In the event of interruption of power during the

hood, if you restore the hood in the OFF state,

then the engine must be reactivate manually.
