GAS SUPPLY AND CONNECTION

Check that the gas supply corresponds to that specified on the data plate.

Connection is at the rear of the unit via a 1/2" G male thread. If connection to the supply

pipe is via a flexible hose, ensure that the hose used is suitable for commercial catering

appliances. The hose shall be periodically examined and replaced as necessary.

WARNING: Black domestic hoses are not suitable for this appliance

Connection shall comply with local regulations.

When making the connection to the appliance, secure the hexagon on the fitting to prevent

rotation of the internal pipe work. An isolating cock should be fitted into the supply line

close to the unit, for emergency shutdown or servicing purposes.

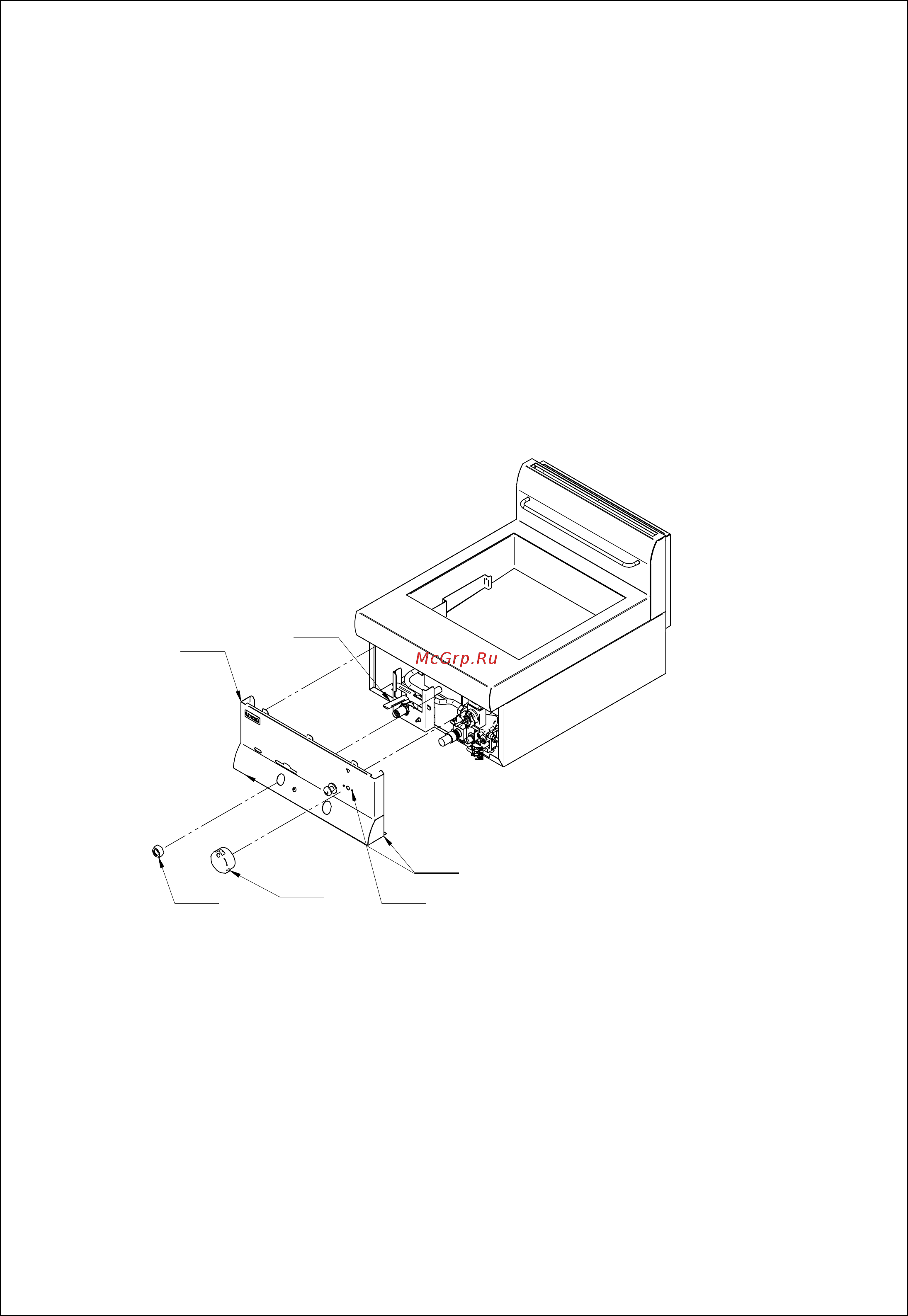

Fig 1

FASCIA PANEL REMOVAL

Removing the facia panel (Fig 1, A)

1. Remove the control knob (Fig 1, C) and undo control thermostat screws (Fig1,

E).

2. Remove drain valve nut (Fig 1, D).

3. Point the drain valve lever directly forward (Fig 1, B).

4. Remove screws from beneath the control panel (Fig 1, F) to allow control panel

to be lifted forward

5. Disconnect igniter lead and remove control panel completely if necessary
