IS355 ECN3592

B C

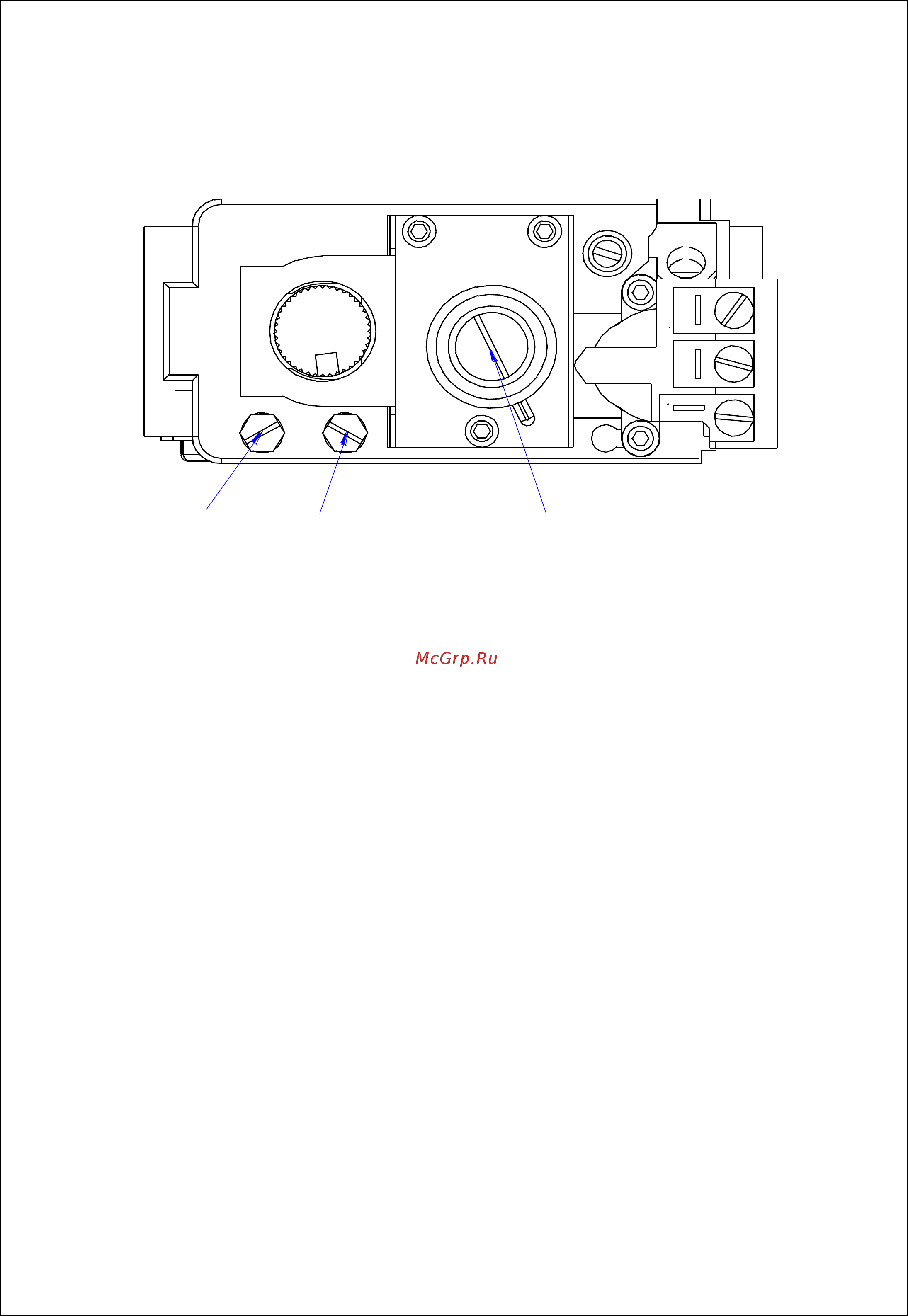

Fig 2.

ADJUSTING BURNER PRESSURE

 After removing the facia panel, (Fig 1) access to the pressure test points on the gas

valves can be obtained.

 Using the test point (Fig 2, A), remove the blanking screw and attach a pressure

gauge to the boss of the test nipple, to check supply inlet pressure. See “technical

data table” page 4.

 Use the test point (Fig 2, B), to set the unit to the appropriate burner pressure. See

“technical data table” page 4.

 Adjustment to the burner pressure is made with burner lit and full on, (refer to

operating instructions)

 Adjustment of the burner pressure is made by removing the governor cap (Fig 2, C)

and turning the screw clockwise to increase the outlet pressure and anticlockwise to

reduce it.

 After setting refit regulator cap and tighten test point screws (Fig 2, A, B, C)

NOTE: appliances operating on Butane gas there may be some „yellowing‟ of the flame at

the burner – this is normal owning to the composition of the gas.
