Curtis GEMSIF30A1000 [32/42] Electrical schematics es6
![Curtis GEMSIF30A1000 [32/42] Electrical schematics es6](/views2/1339022/page32/bg20.png)

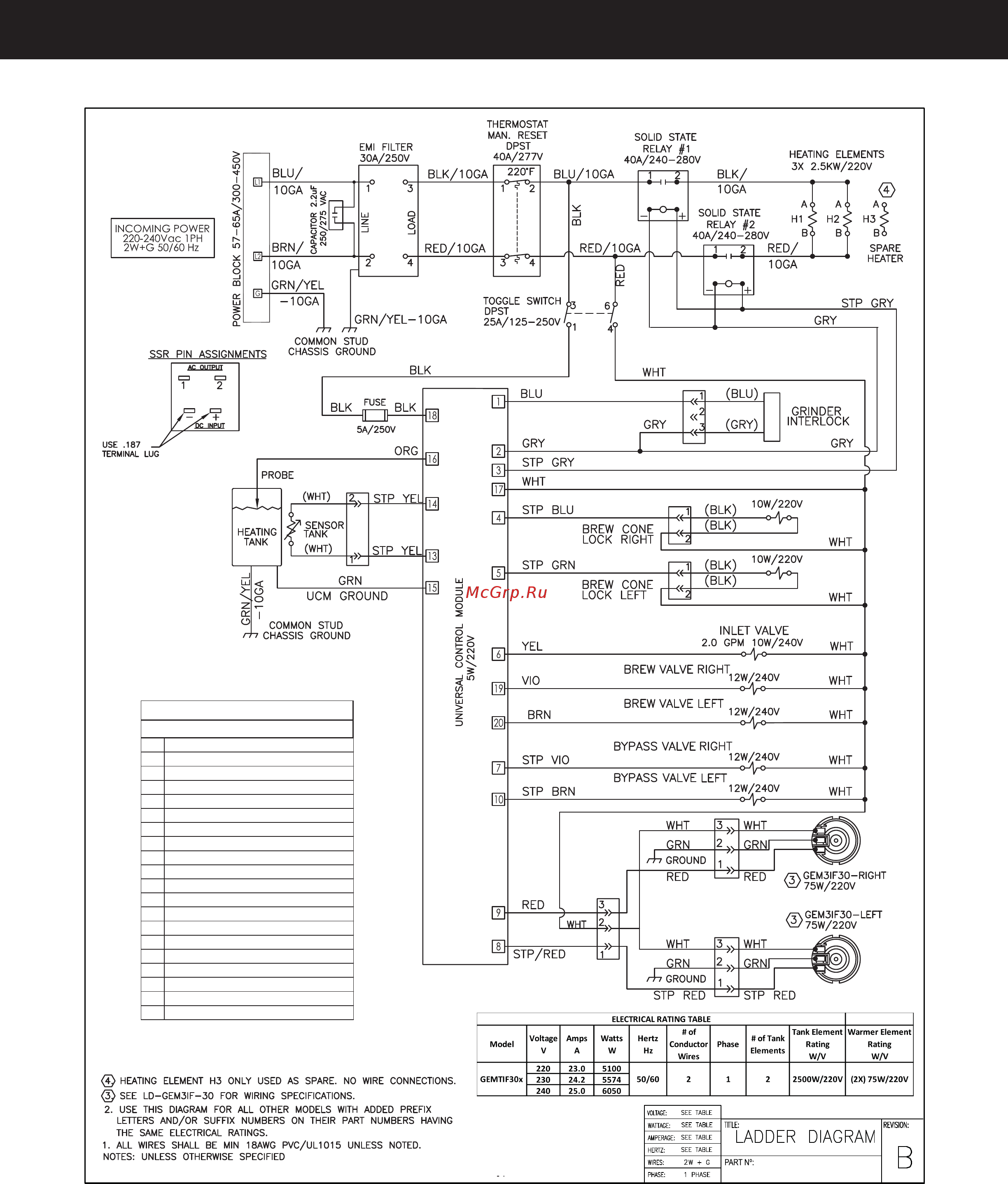

GEMTIF30A1000
ELECTRICAL SCHEMATICS ES6
LD-GEMTIF-30
1
GRINDER INTERLOCK
2
COMMON-SOLID STATE RELAY & GRINDER
3
SOLID STATE RELAY +5 Vdc
4
BREW CONE LOCK RIGHT
5
BREW CONE LOCK LEFT
6
INLET VALVE
7
BYPASS VALVE RIGHT
8
IF WARMER LEFT
9
IF WARMER RIGHT
10
BYPASS VALVE LEFT
11
NOT USED
12
NOT USED
13
TANK TEMPERATURE SENSOR
14
TANK TEMPERATURE SENSOR
15
UCM GROUND
16
WATER LEVEL PROBE
17
220-240V L2
18
220-240V L1
19
BREW VALVE RIGHT
20
BREW VALVE LEFT
UCM Pin Assignments
20 Pin Connector
(&.5*'"&-&$53*$"-4$)&."5*$ø /$
