Installation

5 Installation

5.1 Electrical connection

General information

Check the grid characteristics against the

data indicated on the plate. The

identification plate bearing the technical

data, serial number and brand name is

visibly positioned on the appliance. Do not

remove this plate for any reason.

Perform the ground connection using a wire

that is 20 mm longer than the other wires.

The appliance is provided with a five-core

H07RN-F cable (5 x 2.5 mm² referring to

the cross section of the internal conductor).

Connection modes:

• 380-415 V 3N~

5 x 2.5 mm² five-core cable.

Fixed connection

Fit the power line with an omnipolar circuit

breaker in compliance with installation

regulations.

The circuit breaker should be located near

the appliance and in an easily reachable

position.

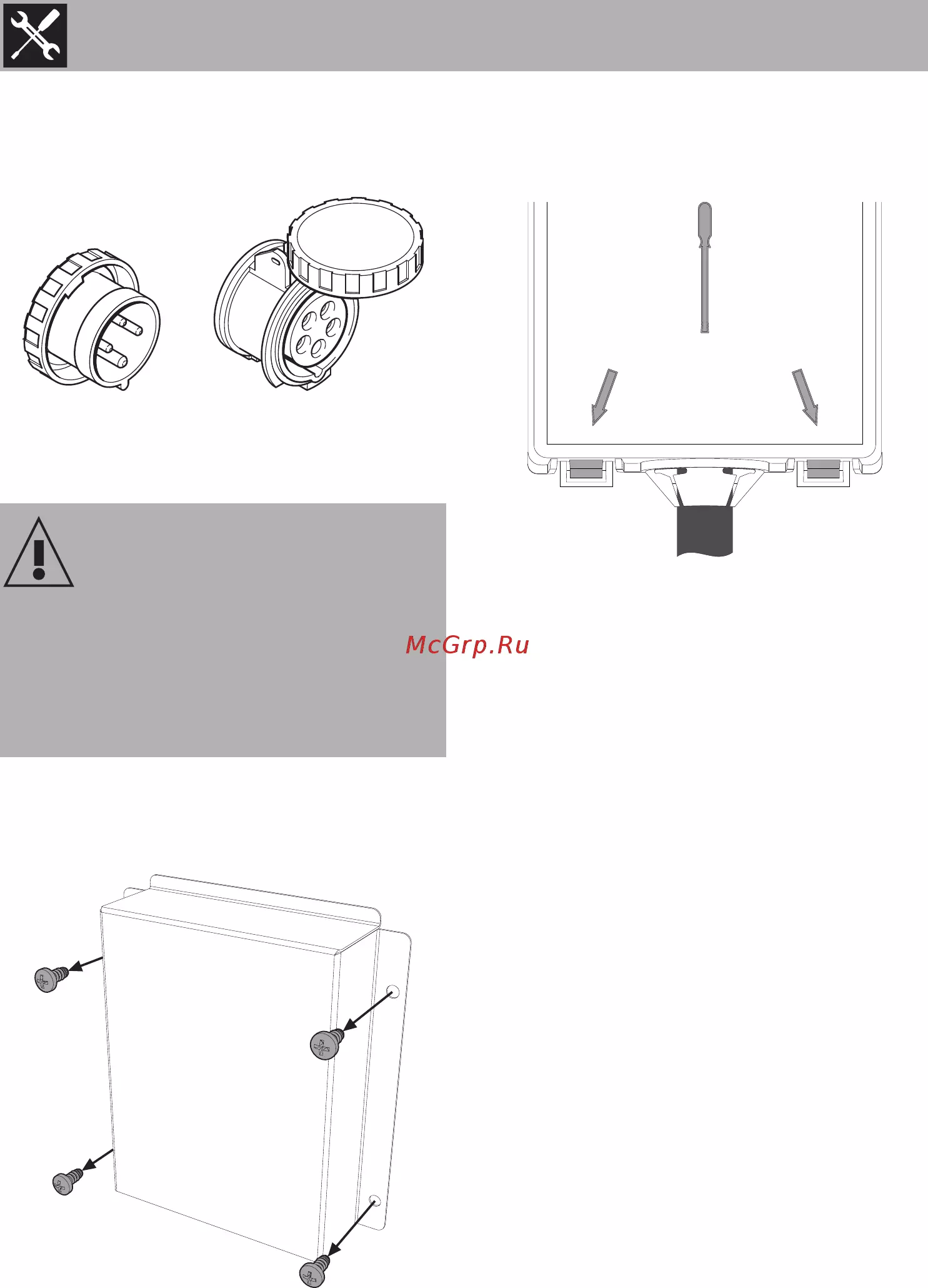

Connection with plug and socket

To connect:

380-415 V 3N~

with 5 x 2.5 mm² five-core cable.

Check that the plug (not supplied) and

power socket are compatible and of

adequate capacity for the maximum current

draw of the appliance.

The terminal indicated by symbol

links up parts that are normally

earthed. Connect the appliances

appropriately using this terminal in

order to make sure that they are

equipotential.

If the phase voltage drops below

190V~, the performance of the

oven may suffer, not due to the

product itself.

The values indicated above refer

to the cross-section of the internal

conductor.
