Commax CAV-705U [5/27] Parts and functions
![Commax CAV-705U [5/27] Parts and functions](/views2/1341764/page5/bg5.png)
4
No.
1
2
3
4
5
6
No.
7
8
9
10
11
PartPart
LCD & TOUCH SCREEN
Speaker
Power LED
MIC
Emergency button
Monitoring button
Guard button
Door release button
Talk button
Power switch
Wiring connector

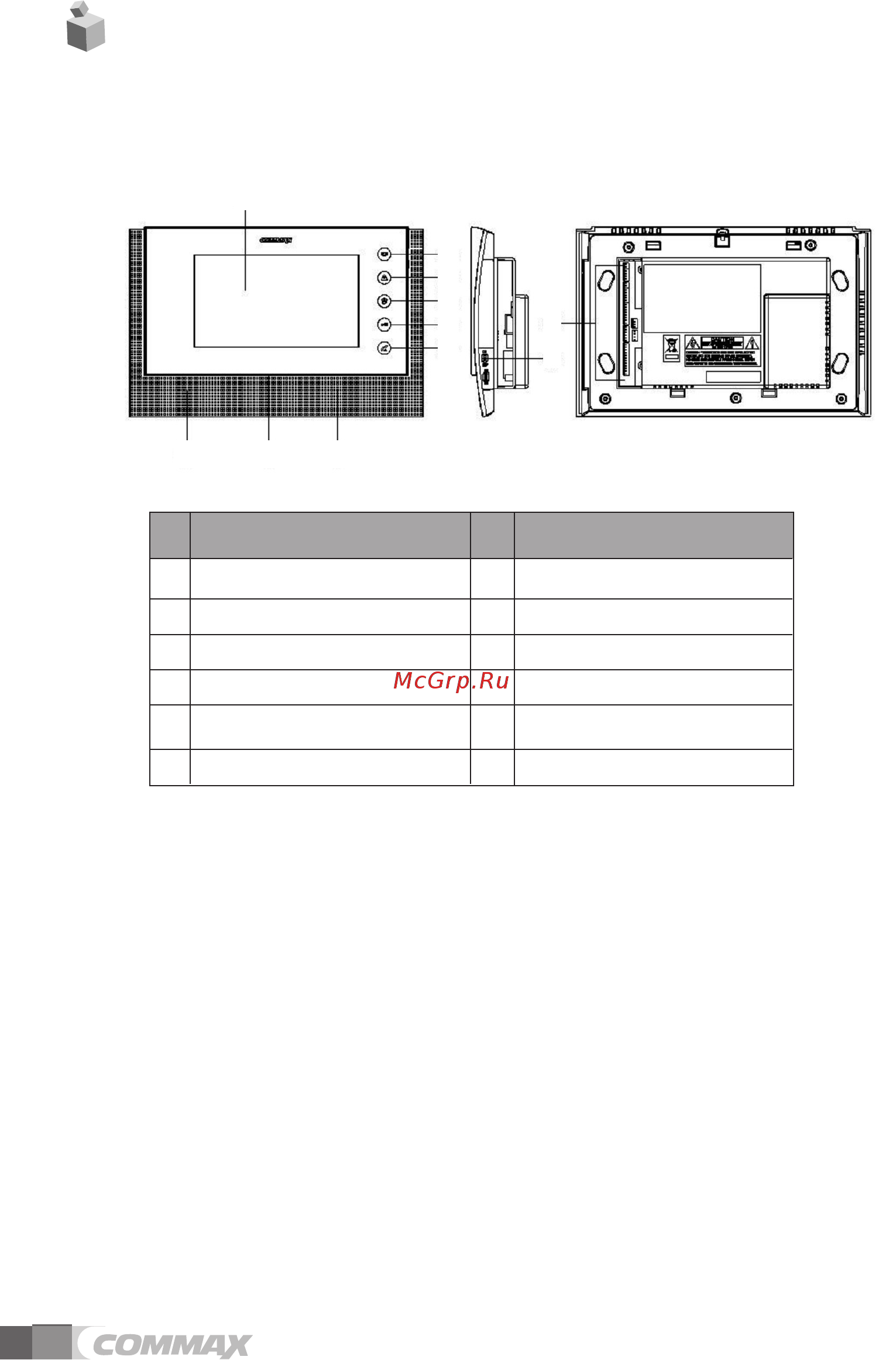

3. Parts and functions
①
② ③ ④
⑤
⑥
⑦
⑧
⑩
⑪
⑨
CAV-705U
The product has hands-free conversation function : Please, press conversation
button to initiate or end a call
(Remark : When in stand by mode, only power button is on.)
▶
The product is designated as Master and can be connected to multiple Slave units.
(Cannot be used as Slave terminal)
▶
In case if multiple video-phone terminals are installed and the line of one terminal is busy, other
terminal can overtake the call.
▶
In case if the line is busy and the call comes to the busy line, call notification only comes to the
terminal where call is directed
▶
In case of emergency, notification is directed to all installed devices. Setting and resetting the
emergency situation are only available on terminals where 'Setting and resetting' button is
installed
In case if alarm is emitted, conversation through video phone terminal will be forcibly terminated.
(Alarm : emergency, Notification 1(Fire), Notification 2(Gas), Burglar 1, Burglar 2)
