Commax CDV-40Q [5/15] Part names and functions

2.Part names and functions

Contents

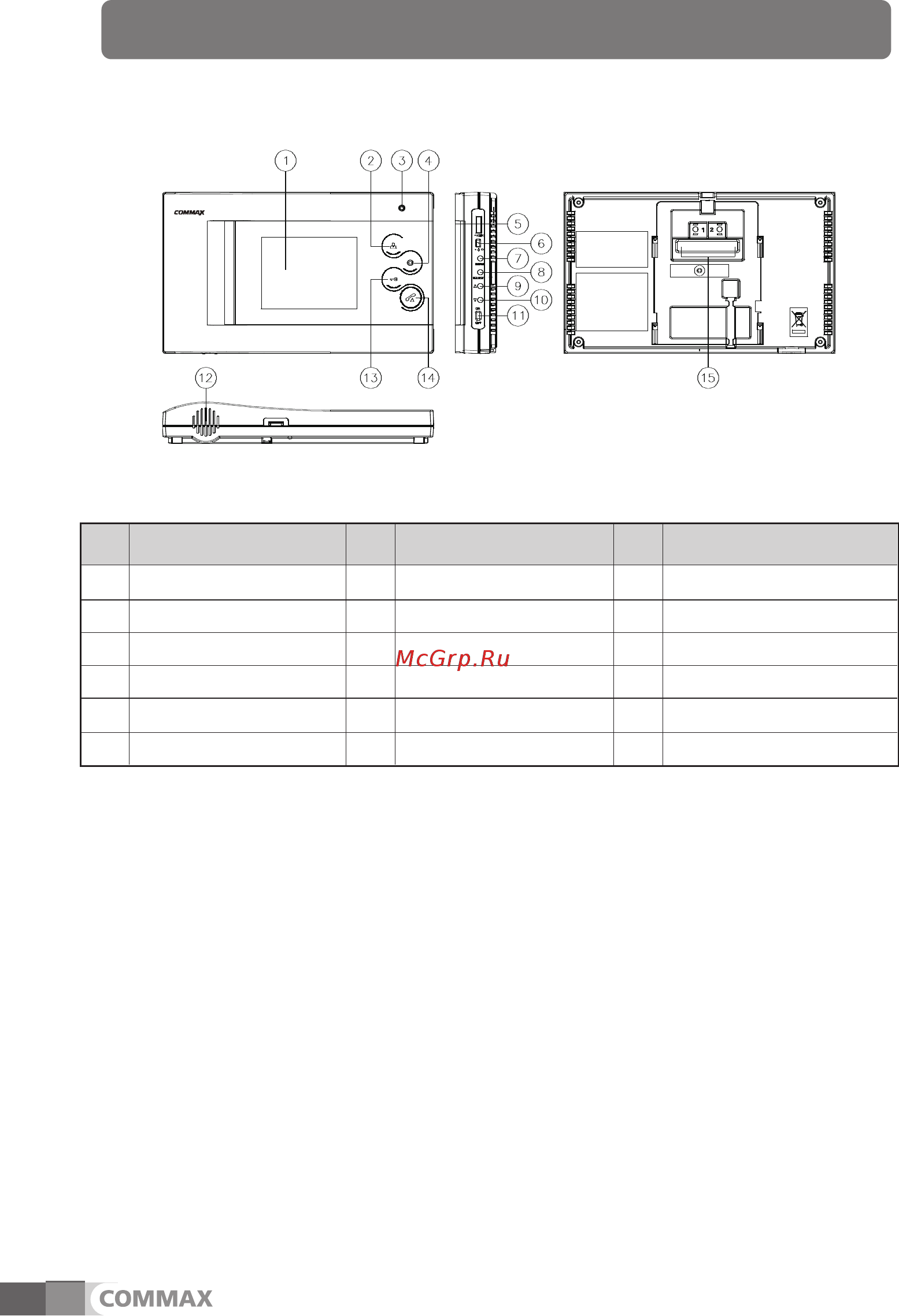

Monitor

Monitor button

Microphone

Interphone button

Talk volume control dial

Ringing tone control dial

Open button

Talk button

Terminal for external

connection

MENU button

SEL button

UP button

DOWN button

Power switch

Speaker

내용 내용No. 번호 번호

※ Use of two door cameras setting

In order to use two door cameras at the same time, please remove the short-pin from

the back of the panel. A short-pin is installed as a factory default.

(Use a short-pin: Activate Camera 1 terminal only / Removed status: Activate Camera 1

& 2 terminal)
