󰢟 Note

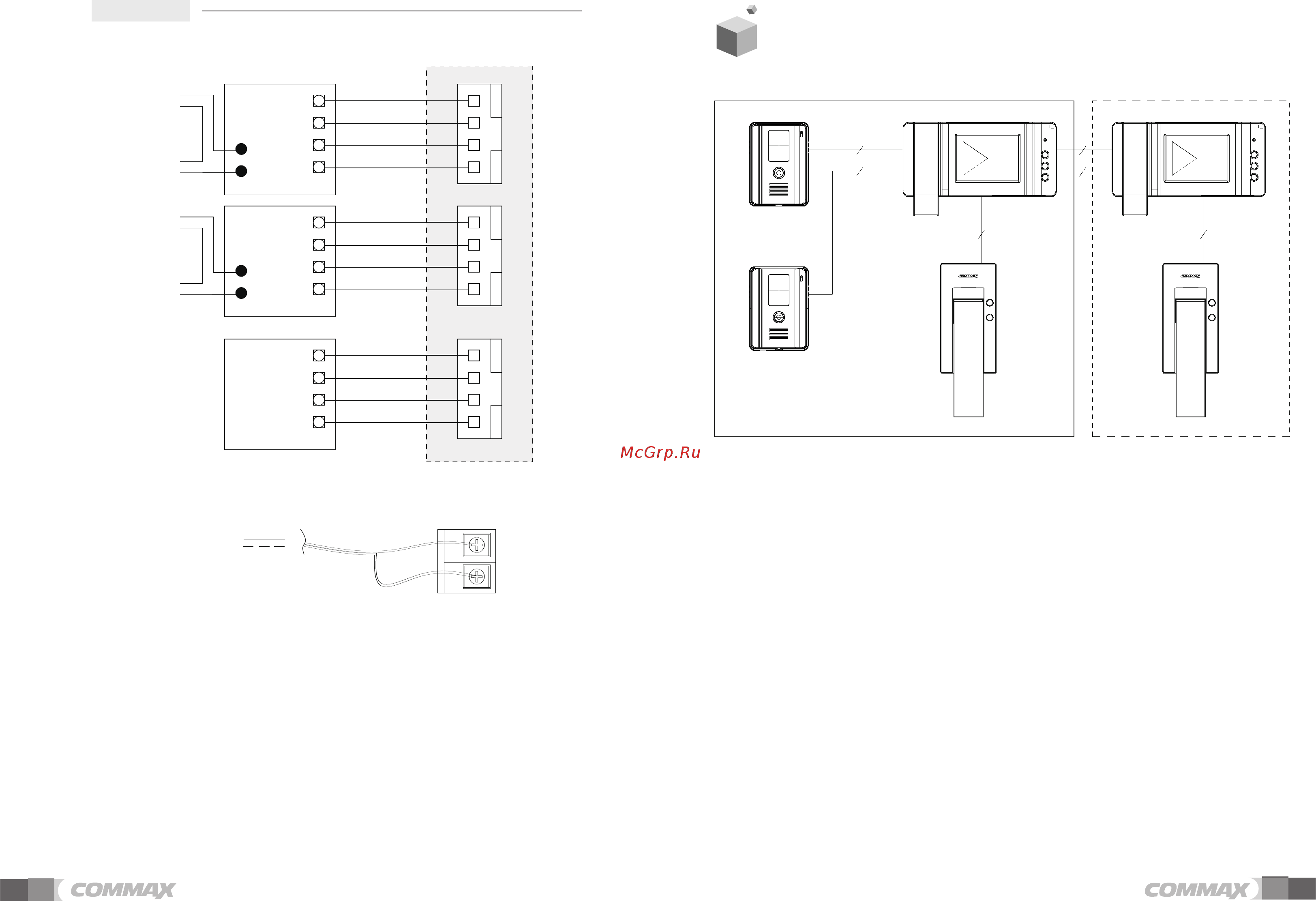

1. Please be careful for mis-wiring and mis-cabling which may
cause a short circuit between wires, or the malfunction of the
product.
2.
Please power off when connecting a monitor (CDV-50P/50PD) to a
door camera. (DRC-40CK)
DC17- 30V
S1
S2
DOOR RELEASE
#1 (RE)
#2 (BL)
#3 (YE)
#4 (WH)
#1 (RE)
#2 (BL)
#3 (YE)
#4 (WH)
#1 (RE)
#2 (BL)
#3 (YE)
#4 (WH)
CAMERA 1 ①
②
③
④
CAMERA 2 ①
②
③
④
INTERPHONE ①
②
③
④
POWER SOURCE
POWER SOURCE
DOOR RELEASE
CDV-50PCDV-50PD
CDV-50PD
DRC-40CK
DP-4VH
>151?-"0/"7
󰢞 When an addtionanl monitor and an interphone connection is added
to this system, this might affect audio and video quality.
DP-4VHDP-4VH
󰢞 Extendable
CDV-50P/50PDCDV-50P/50PD
DRC-40CK
DRC-40CK
4 4
44
44
