Commax CCU-232AGF [5/11] The name function

No.

PartPart

Household input & output

Common line input

Program terminal

Connect terminal

Power Input Terminal

STATUS LED

ID SWITCH

POWER SWITCH

3. The name & Function

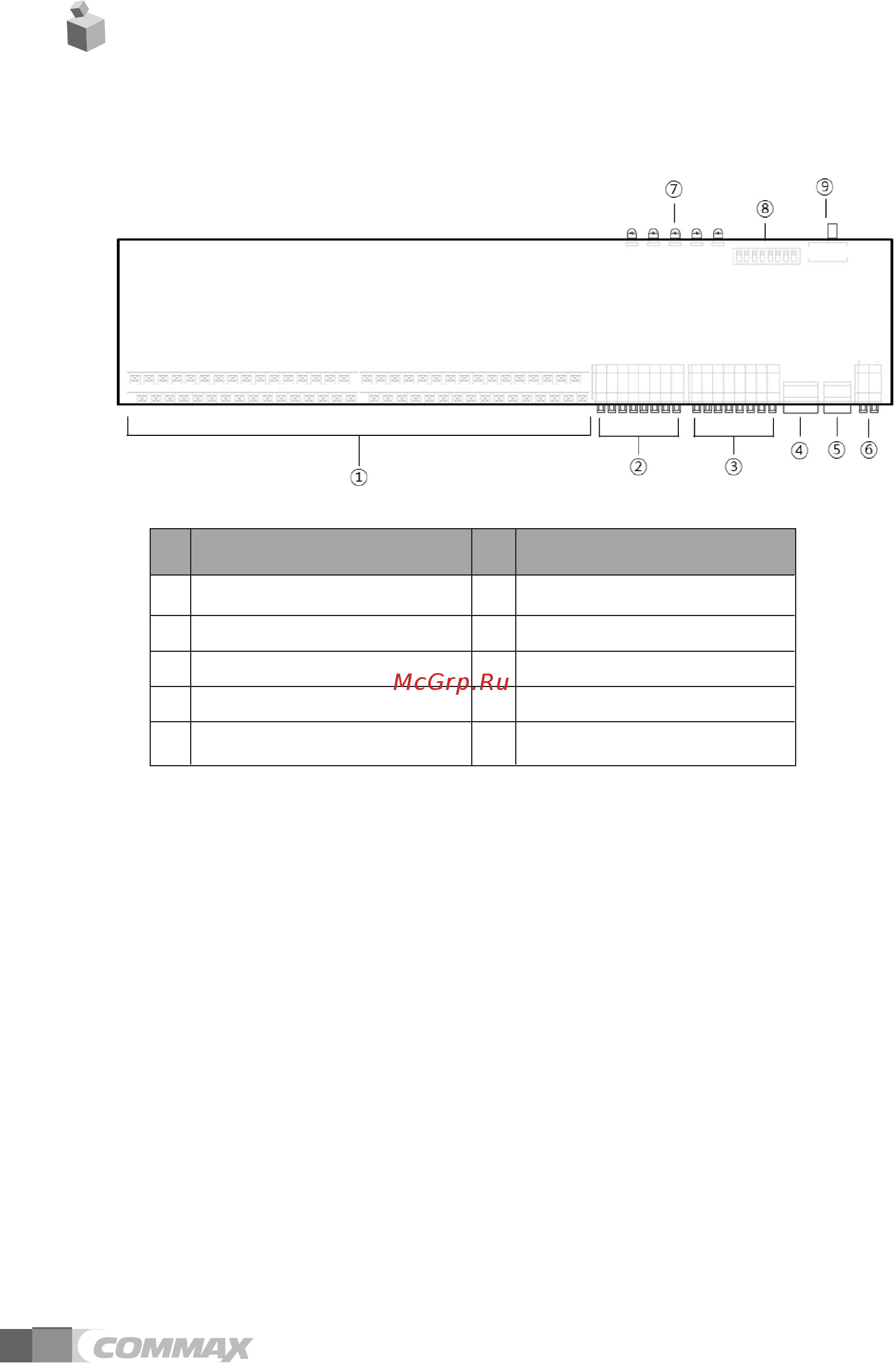

3-1. Draft & Table Name

3-2. FUNCTION

①

Household in& output terminal : house hold call line input terminal.

②

Common line output terminal : Distributor Common line output terminal

③

Common line input terminal :

Lobby Common line & Distributor common line input terminal

④

Program terminal : This product is a terminal for program download.

⑤

RS-232 Connection terminal : you can use it If you change settings by a PC.

⑥

Power input terminal : RF-24AS Adaptor connection terminal.

⑦

Status LED : LED is on depending to the status.

1) Power LED : The LED is on when the power is on.

2) Lobby call LED : The LED is on when calling between HOUSEHOLD & LOBBY.

Guard call LED : The LED is on when calling between Household & Guard or House

hold.

4) Data LED : The LED is on when transferring data between devices.

5) Error check LED : The LED is on when Error.

⑧

The Switch to set up the ID : This is The DIP SWITCH to set the ID.

⑨

Power switch : ON/OFF SWITCH FOR POWER.
