Clarion CJ-5600E [7/10] Connections
![Clarion CJ-5600E [7/10] Connections](/views2/1003437/page7/bg7.png)
7
English

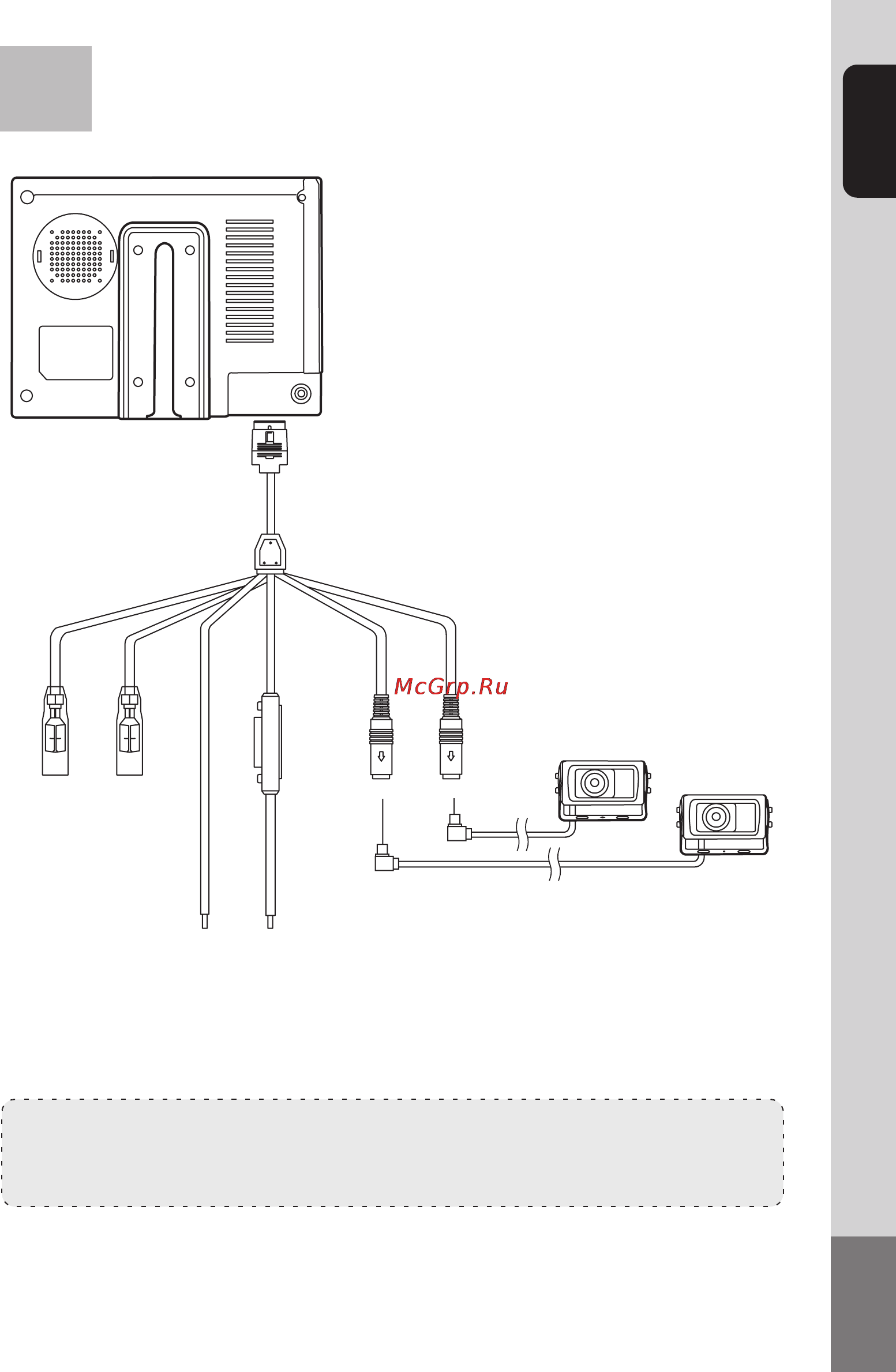

5. Connections
*3
*3
*2
*2
*1
*1
GREEN
(CAMERA2)
BLACK
(CAMERA1)
BLACK
GROUND
RED
POWER
DC12V
~24V
CAMERA2
CAMERA1
CAMERA1
(Sold Separately)
CAMERA2
(Sold Separately)
*1
Use a Clarion camera.
*2
A relay cable, sold separately, is required
for connecting the camera.
*3
Use tape to keep the connection between
the monitor cable and the camera relay
cable secure.
BLACK (CAMERA-1, priority) Standby + (for rear-view)
Connect this cable to “+” of back gear lamp.
GREEN (CAMERA-2) Standby + (for side-view)
Connect this cable to “+” of turn signal lamp.
CJ-5600E.book 7 ページ ２００７年２月７日 水曜日 午前９時２５分
