ENG

Operation Manual

sVEN 314

5. PREPARATION AND OPERATION

Speaker placement

• Place the speakers symmetrically to the listener at least one meter away.

• Place MSS far away from monitors and TV sets, as insigniﬁcant image distortion in these supersensitive

devices is possible.

MSS Connecting

SVEN 314 Multimedia USB Speaker System can be connected to virtually any audio source: a МР3/CD,

PC sound card, etc. (see Fig. 2)

• Plug the USB cable g to the USB port on your computer or laptop (see Fig. 2).

• Plug the 3.5 mm mini-jack (green) of the signal cable to an audio source.

• Plug 3.5 mm mini-jack (pink) of the signal cable to the microphone jack on the PC control panel.

• Adjust volume level to its minimum by turning VOLUME volume control wheel c down until it stops.

• Turn on the MSS power supply, shift POWER switch b. Power LED a will illuminate.

• Turn on the audio source and adjust the speakers’ volume at your discretion by means of Windows

facility or VOLUME control wheel c.

• Plug a headphone into the headphone jack d, and a microphone into the microphone jack e (see.

Fig. 2).

Notes:

• Place the speakers symmetrically to the listener.

• Connect the speakers to a USB port of your laptop or PC, otherwise please use an active USB

hub.

• After turning off the computer or laptop unplug the USB device.

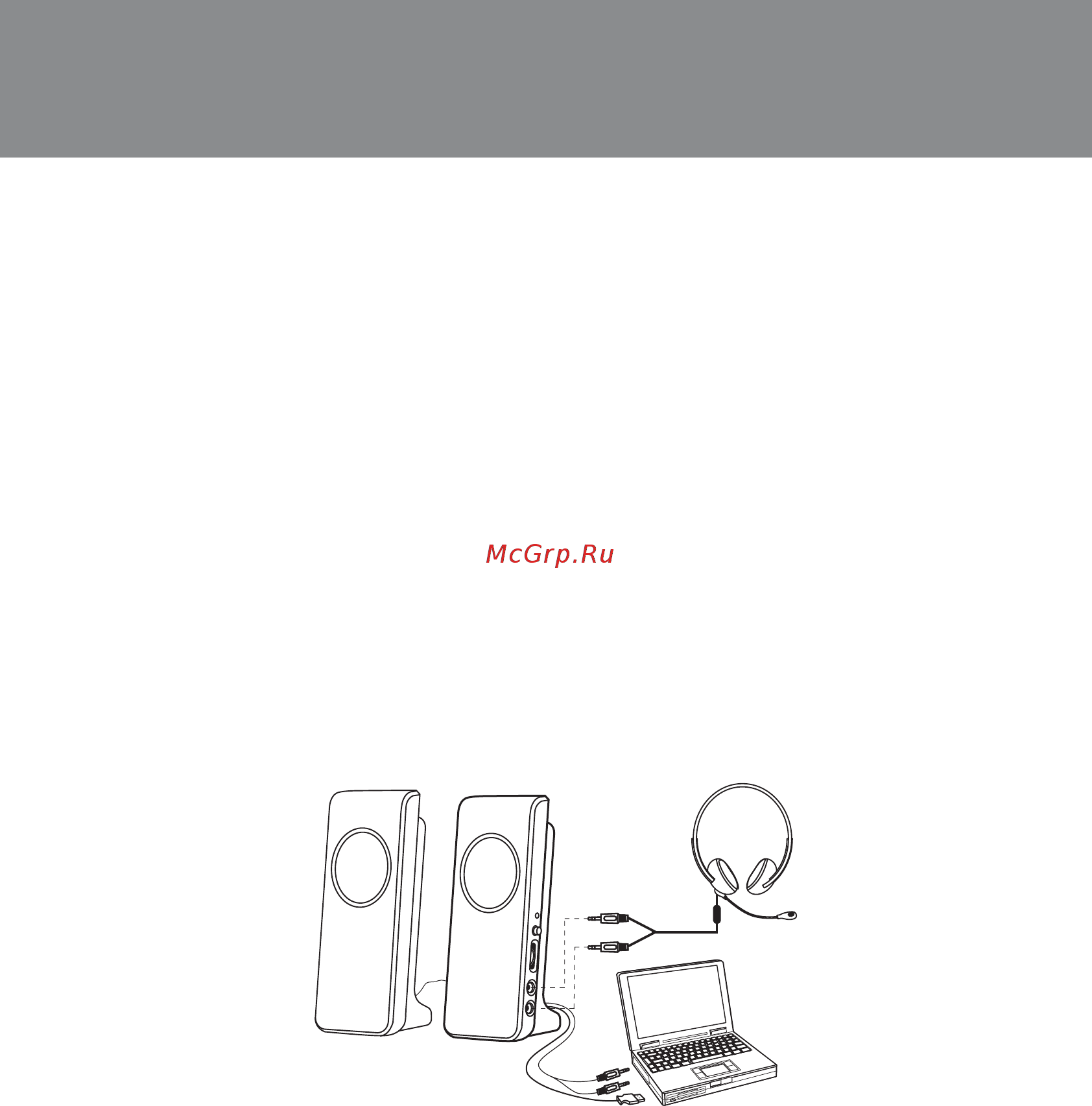

Fig. 2. Connection diagram
