4.3 ASSEMBLY STEPS U1x

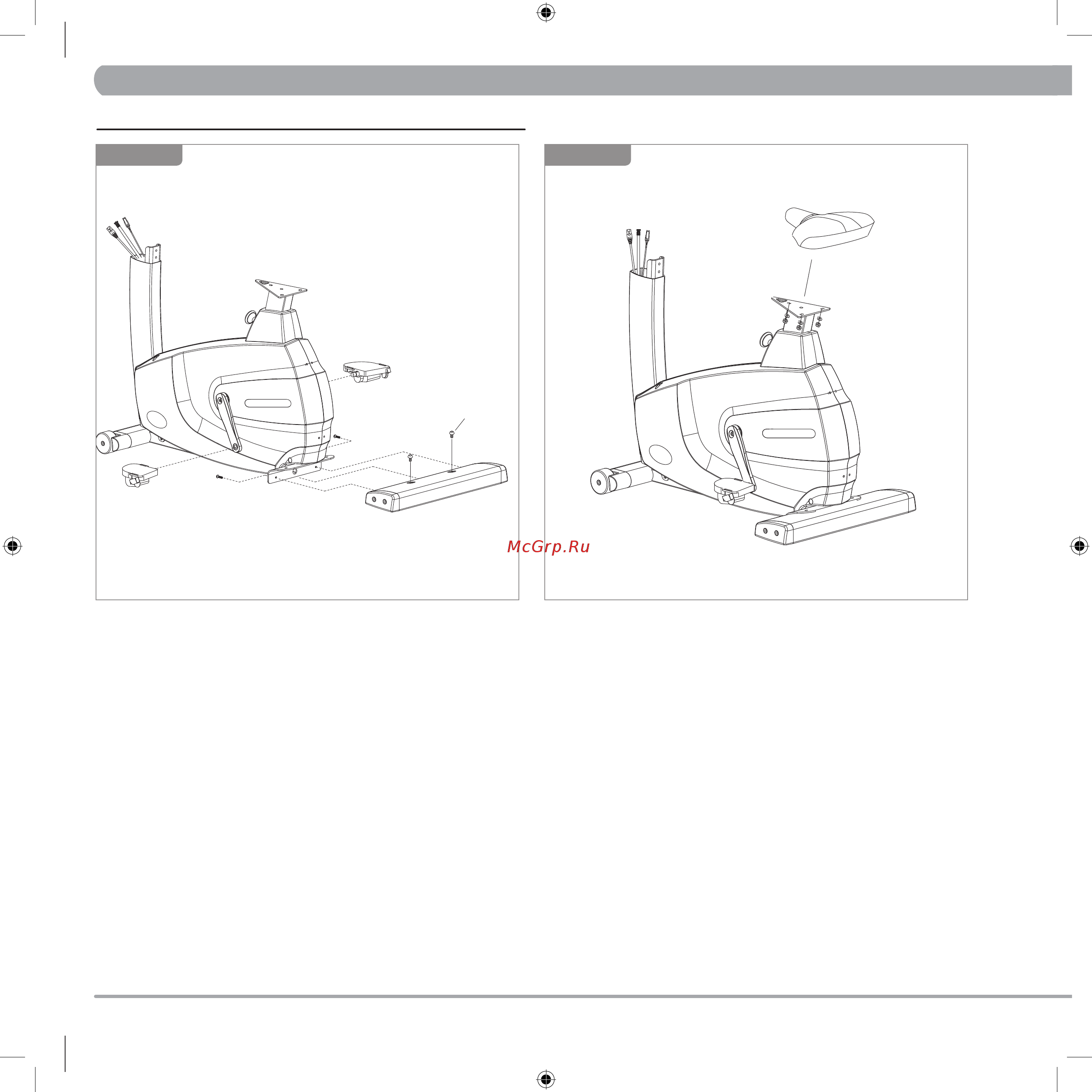

REAR FOOT

Install the rear foot in position at the rear of the bike with the mating

holes in the frame bracket. Insert the four bolts (Z01) through the frame

bracket and rear foot. Using the #6 Allen Wrench (Z31) tighten the

screws completely.

PEDALS

Install the pedals on the pedal cranks using the Open Wrench (Z32). The

Matrix logo of the pedal strap must point upward.

NOTE: Be careful to align the threads correctly to avoid damage. A little

grease on the threads should help the pedals to screw in easily and cor-

rectly. Turn the left pedal spindle counterclockwise when threading into

the crank arm, and turn the right pedal

Z01

STEP 1

CHAPTER 4: Bike parts and assembly Guides

Remove the nuts from the bottom of the seat. Attach the seat to the seat

post with the nuts you just removed. Tighten them with the

Open Wrench (Z32).

Z01

STEP 2
