6
English
[SRC / ] Button
• Power/Toggle the audio source
[BAND / ] Button
• Select tuner band / Dial / Answer
[MENU / ] Button
• MP3/WMA mode – Search function.
• BT mode – Terminate call
• CD mode – No function.
• RADIO mode – PTY select.
• AUX mode – No function.
[ ] Button
• Press to eject disc.
[ , ] Buttons
• Previous / next track
• Search (long press)
[OPEN] Button
• Unlock the front panel.
[PS / AS] Button
• Scan play / Preset scan
• Auto memory store (long press)
[SOUND] Button
• Sound effect setting
[VOLUME] Knob
• Adjust volume level / Conrm (press)
[TA] Button
• Trafc announcement
[1–6] Buttons
• [1] Button: Scan play / Preset station 1.
• [2] Button: Repeat play / Preset station 2.
• [3] Button: Random play / Preset station 3.
• [4] Button: Play / Pause / Top play (long
press) / Preset station 4.
• [5] Button: Previous folder / Preset station
5. 10 tracks down (long press)
• [6] Button: Next folder/Preset station 6.
10 tracks up (long press)
[ D ] Button
• Display switch
• System setup (long press)
[ MIC ] Hole
• Internal microphone

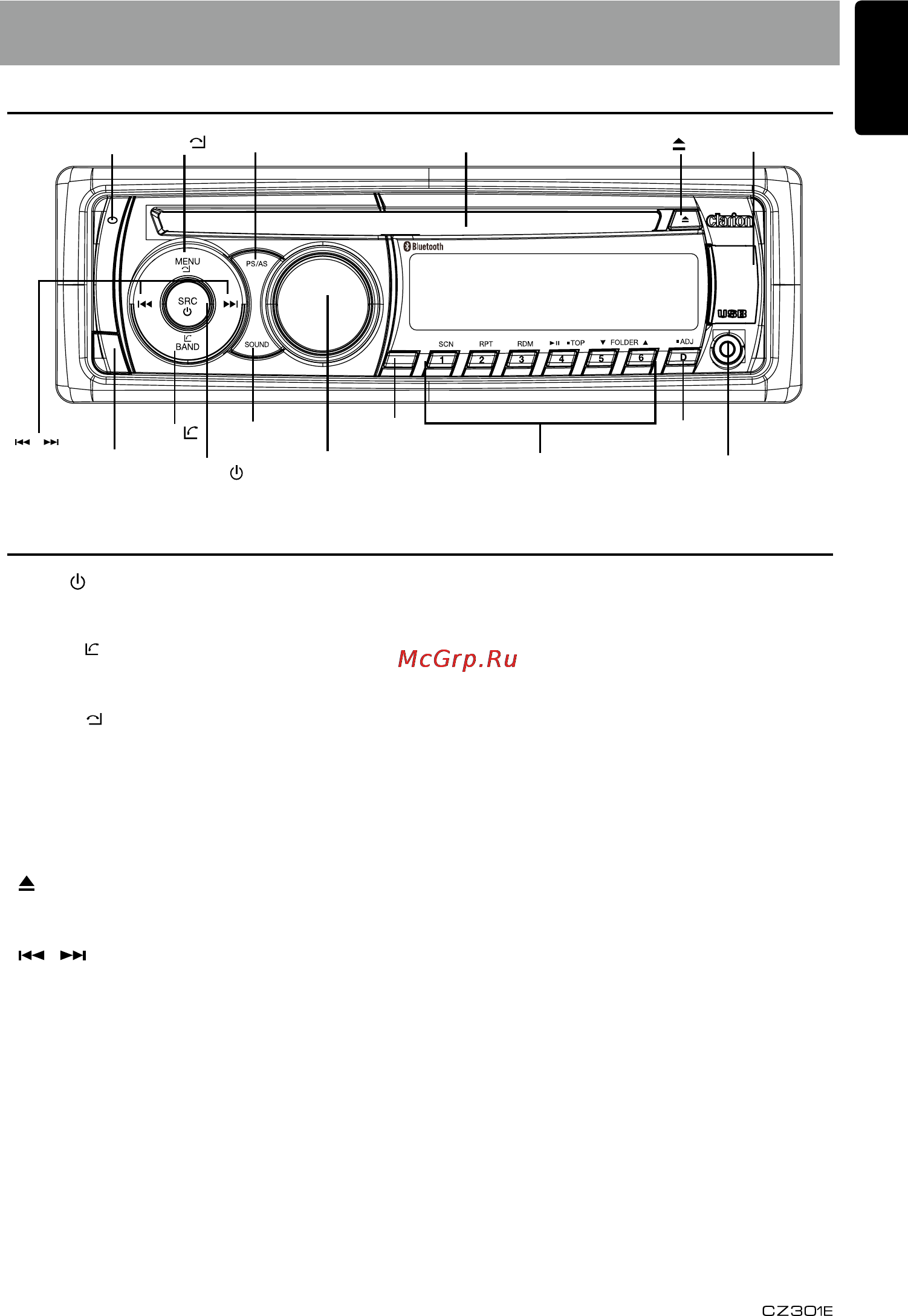

3. CONTROLS
Operational Panel
Names of Buttons
[ , ]
[OPEN]
[MENU / ]
Disc Slot
[ ]
[PS/AS]
[SOUND]
[VOLUME]
[1~6]
AUX Jack
USB connector
[TA]
TA
[BAND / ]
[ SRC
/ ]
[ D ]
[MIC]
