Connection to electric main
IMPORTANT!
Prior to connecting the tank water heater, make sure
that the water heater is properly grounded. Proper
grounding is important to minimize electric shocks
and risk of fire. The power cord is equipped with a plug
with a grounding pin. The appliance must be used
with a properly grounded power outlet. If the outlet,
you are intending to use, is not properly grounded or
grounded by a time-delay fuse or a circuit breaker,
contact a qualified electrician to install a proper outlet.
IMPORTANT!
To provide reliable operation and safe use of the
water heater, prior to the first run check if it is properly
connected to the 230V AC mains. The water heater to
be connected must be securely linked with the earth
circuit of your electric mains. If the water heater is
not grounded, then in case of a short circuit GFCI,
supplied with the heater, may not operate. It is
dangerous.
IMPORTANT!
Wall outlet should be rated on voltage not lower than
10А, electric main cabel with cooper section not
lesser then 3х1,5 mm
2
(for cooper).
Electric plug of the device corresponds one block
with GFCI.
1. The water heater is designed to be connected to 230V single-phase
electric main. Prior to connecting make sure that parameters of the electric
main in the place of connection correspond to parameters, specified on the
identification plate with technical parameters of the appliance. You should
follow the current electrical safety code when installing the water heater.
2. The power outlet must be properly grounded. The outlet must be
designed for rated current not less than 10A. The power outlet and plug
must always be dry to prevent current leakage. Regularly check if the
power plug is tightly connected to the outlet. Do it in the following order:
insert the power plug into the outlet, switch off the water heater after half-
hour operation and unplug the cord, check if the plug is heated by your
hand. If the plug is heated over 50°C, then to prevent damages, accidents
and fire as a result of bad electrical contact, replace the outlet with a new
one. A specialist must do this.
3. Power cord of the appliance is a single unit with GFCI (Ground Fault
Circuit Interrupter).

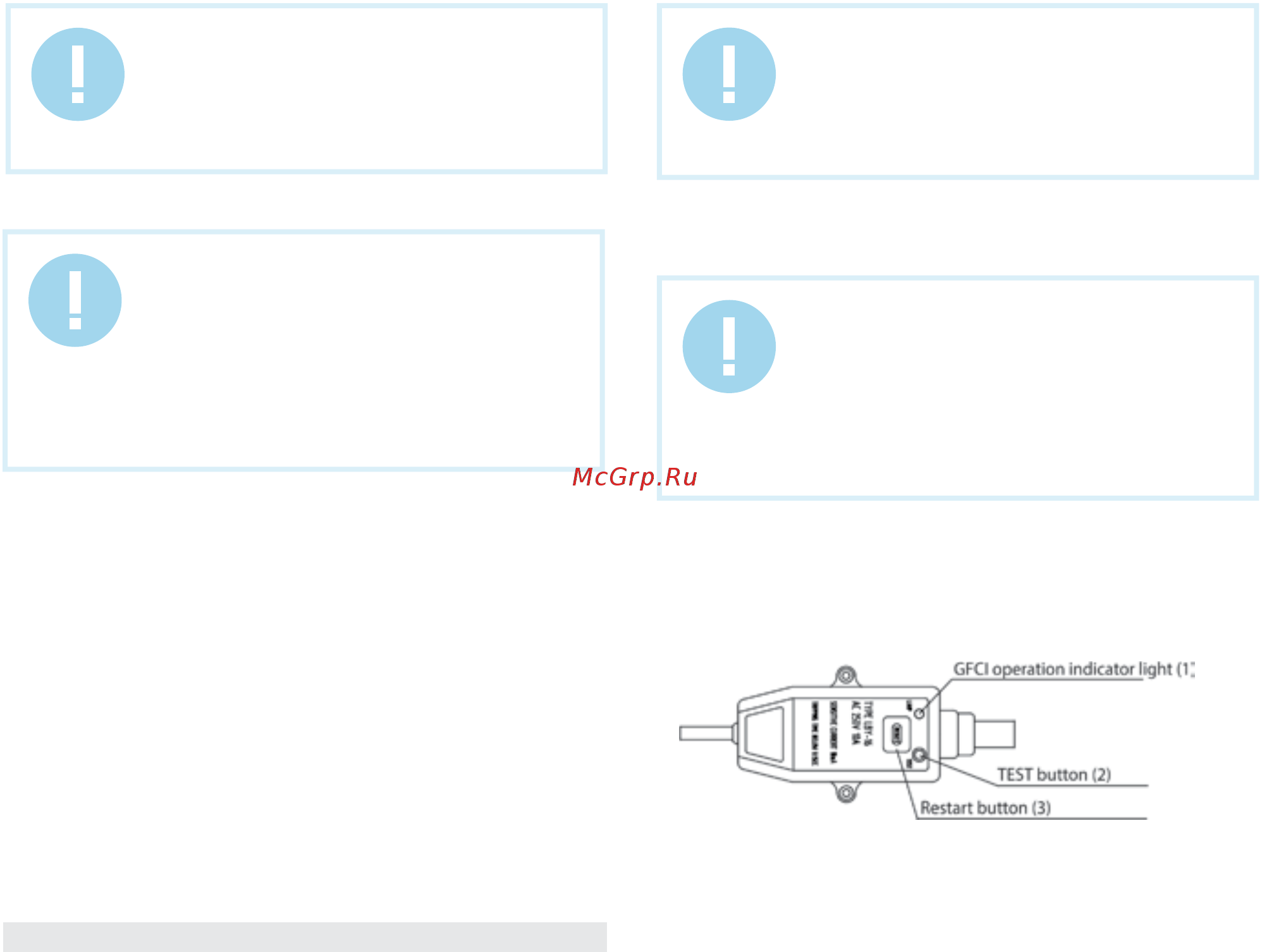

GFCI (Ground Fault Circuit Interrupter) (Fig. 9)
1. Connect the cable to the mains, indicator (1) will light up.
2. Press button (2) for testing, voltage will be cut off, indicator (1) will light
down and restart button (3) will go upwards.
3. Press button (3) to restart the appliance, voltage will be restored and
indicator (1) will light up.
Electric socket should be no lower, than 10A, power card with copper inner
part, cross-section of copper should be not less, than 3x1,5 mm
2
.
Electric plug has combined with GFCI.
Fig. 9
IMPORTANT!
If water in the installation location contains a large
amount of calcium, manganese or iron salts, then
IT IS NECESSARY to mount a respective filter in
the delivery system to reduce the amount of scale
generated in the tank and on the heating element.
