www.timberk.com • electrical storage water heater
10
IMPORTANT!
To provide reliable operation and safe use of the
water heater, prior to the first run check if it is properly
connected to the 230~V AC mains. The water heater to
be connected must be securely linked with the earth
circuit of your electric mains. If the water heater is not
grounded, then in case of a short circuit GFCI, supplied
with the heater, may not operate. It is dangerous.

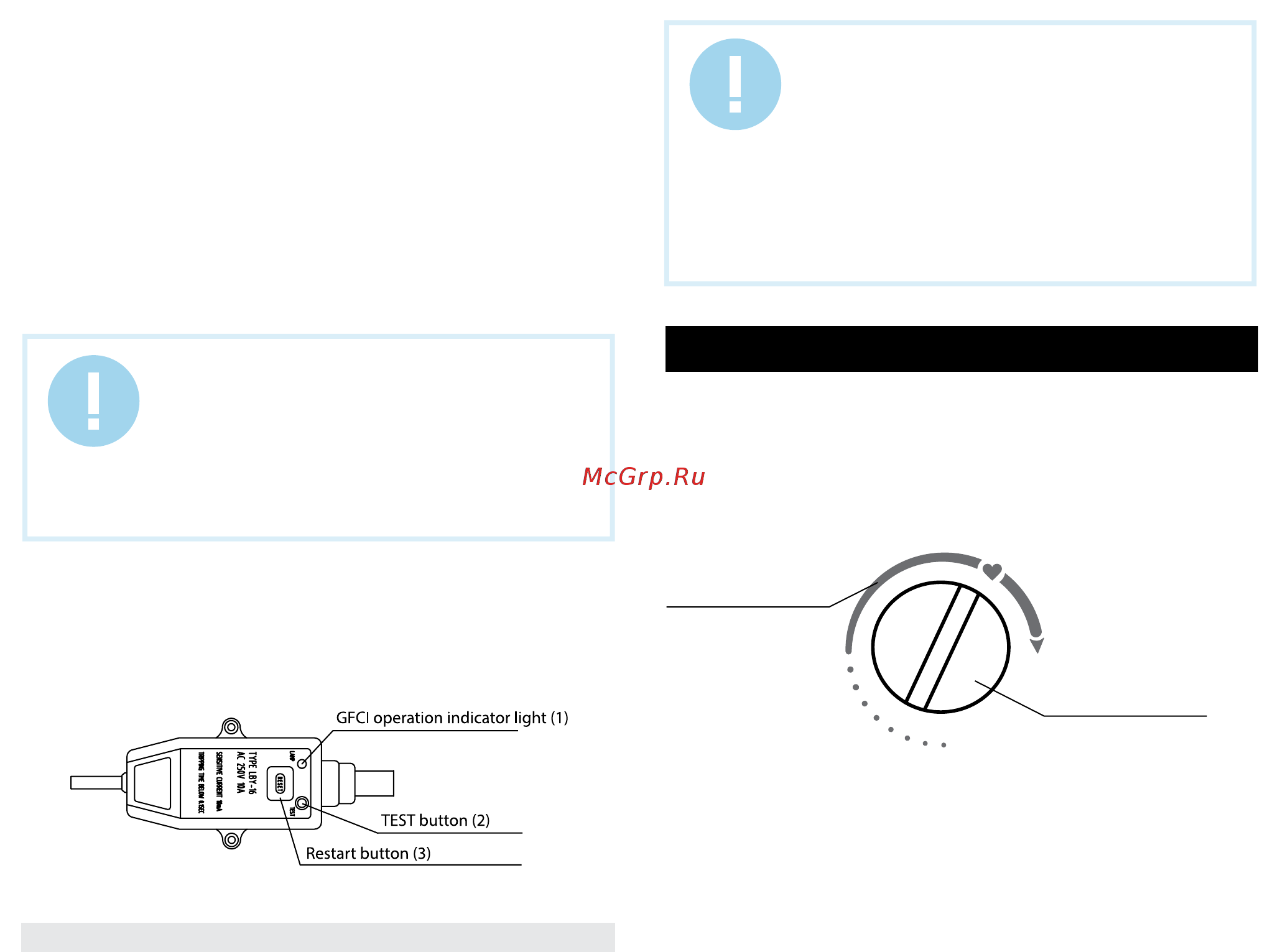

GFCI (Ground Fault Circuit Interrupter) (Fig. 8)
1. Connect the cable to the mains, indicator (1) will light up.
2. Press button (2) for testing, voltage will be cut off, indicator (1) will light
down and restart button (3) will go upwards.
3. Press button (3) to restart the appliance, voltage will be restored and
indicator (1) will light up.
IMPORTANT!
- if pressing test button (2) voltage is not cut off and/or
indicator (1) continues to be lighted, it means that GFCI
safety device is not operating properly.
- if pressing restart button (3) voltage is not restored
and/or indicator (1) doesn’t light up, it means that the
water heater is not operating properly. In both cases
disconnect the water heater and call the service center.
- to reduce the risk of an electric shock, do not
disassemble, remove or fill liquid in this appliance.
8. WATER HEATER CONTROL
Control panel for the following models:
SWH RS1 30 V/SWH RS2 30 H
SWH RS1 50 V/SWH RS2 50 H
SWH RS1 80 V/SWH RS2 80 H
SWH RS1 100 V/SWH RS2 100 H
Fig. 8
Fig. 9
Indication light
Indication thermostat
handle
identification plate with technical parameters of the appliance. You should
follow the current electrical safety code when installing the water heater.
2. Power outlet must be designed for rated current not less than 10A,
copper stranded power cord not less than 3 x 1.5 mm
2
in cross section
(for copper).
3. The power outlet and the plug must always remain dry to prevent current
leakage. Regularly check if the power plug is tightly connected to the outlet.
Do it in the following order: insert the power plug into the outlet, switch off
the water heater after half-hour operation and unplug the cord, check if
the plug is heated by your hand. If the plug is heated over 50 °C, then to
prevent damages, accidents and fire as a result of bad electrical contact,
replace the outlet with a new one. A specialist must do this.
4. Power cord of the appliance is a single unit with GFCI (Ground Fault
Circuit Interrupter).
