www.timberk.com • electrical storage water heater

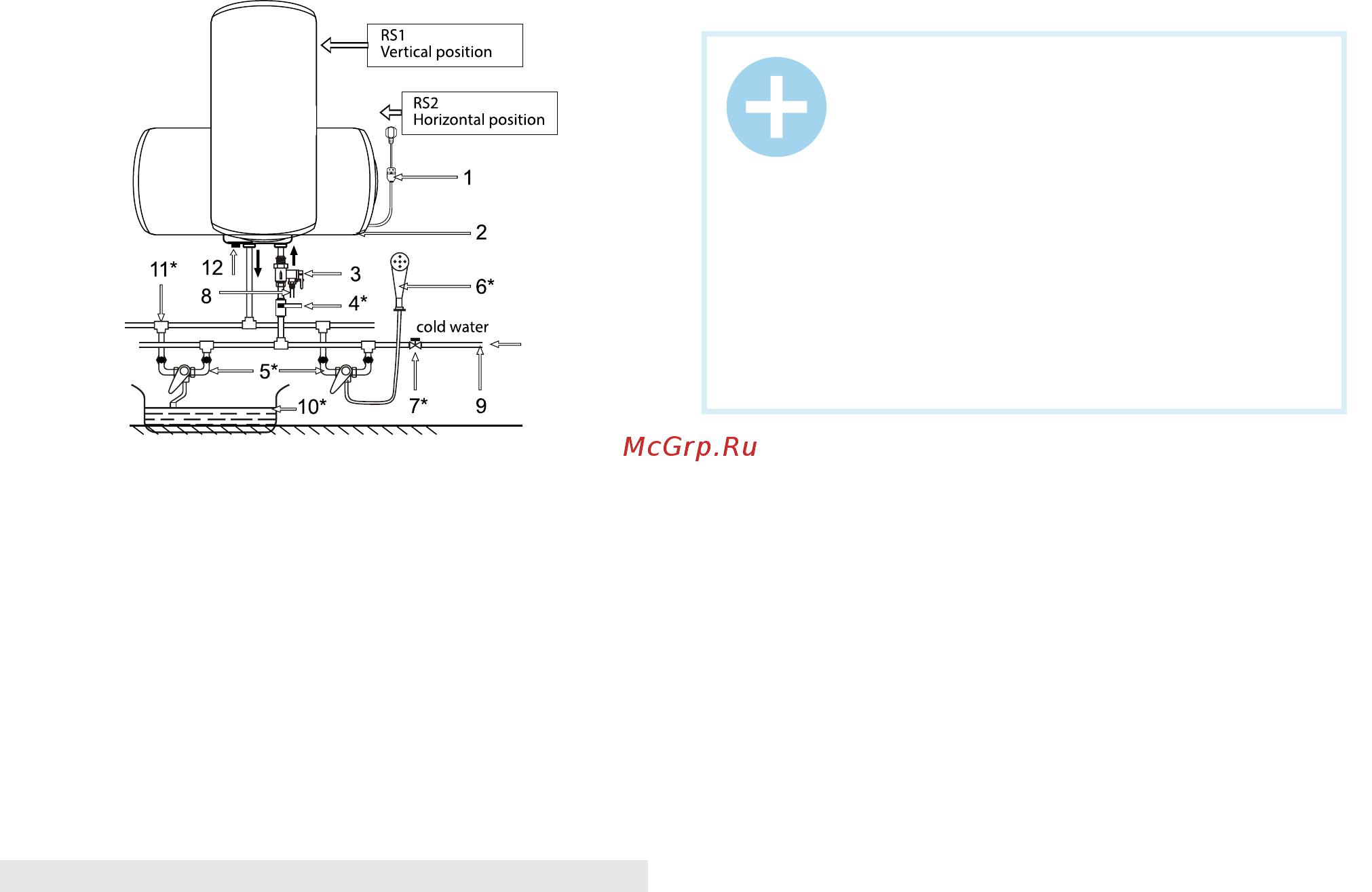

Fig. 6

1 – power cord with a plug and GFCI**

2 – mounted water heater

3 – composite pressure safety valve

4 – cold water inlet tap*

5 – mixer*

6 – shower header*

7 – water main shut-off valve

8 – discharge pipe

9 – water main

10 – tub*

11 – T-bend

1. Electric water heater should be mounted on a firm wall. If the wall is not

robust enough to hold the weight equal to the doubled weight of the overall

water heater weight, fully filled with water, then it should be mounted on a

special support.

2. After you chose the proper place to install the water heater, determine

points for holes for expansion hook bolts (to be determined in accordance

with the data sheet for the appliance you chose). Drill two holes of the

corresponding depth in the wall using a drill, dimensionally fit for expansion

bolts, enclosed with the water heater, insert bolts, turn the hook upwards,

securely tighten nuts and then hang the electric water heater on these

hooks (for RS1/RS2 series) (see Fig. 7).

3. Fix a power outlet to the wall. Requirements to the outlet are as follows:

230~V/10A, single-phase, three-wired. It is recommended to place the

outlet on the right side above the water heater.

NOTE:

Please, use accessories, provided by the

manufacturer, to install the water heater. Electric

water heater must not be mounted on a wall prior

you make sure that the bracket is installed firmly and

securely. Otherwise the electric water heater may fall

down from the wall, which may cause its damage and

even serious accidents involving bodily injury. When

determining points for bolt holes, it is necessary to

provision some spare space between the lower part

of the water heater and the floor, and as to the RS2

line there also must be some space between the right

side of the water heater and the wall on the right,

not less than 0.6 m to make it convenient to perform

maintenance if necessary.

Water heater mounting methods

Fig. 6 shows the way to mount the water heater for several consumption

points.

12 – magnesium anode-nozzle for water discharge (for RS2 series)

* not included in the scope of delivery

** depending on the product batch, GFCI can be located not within the power cable electric plug

Water heater mounting
