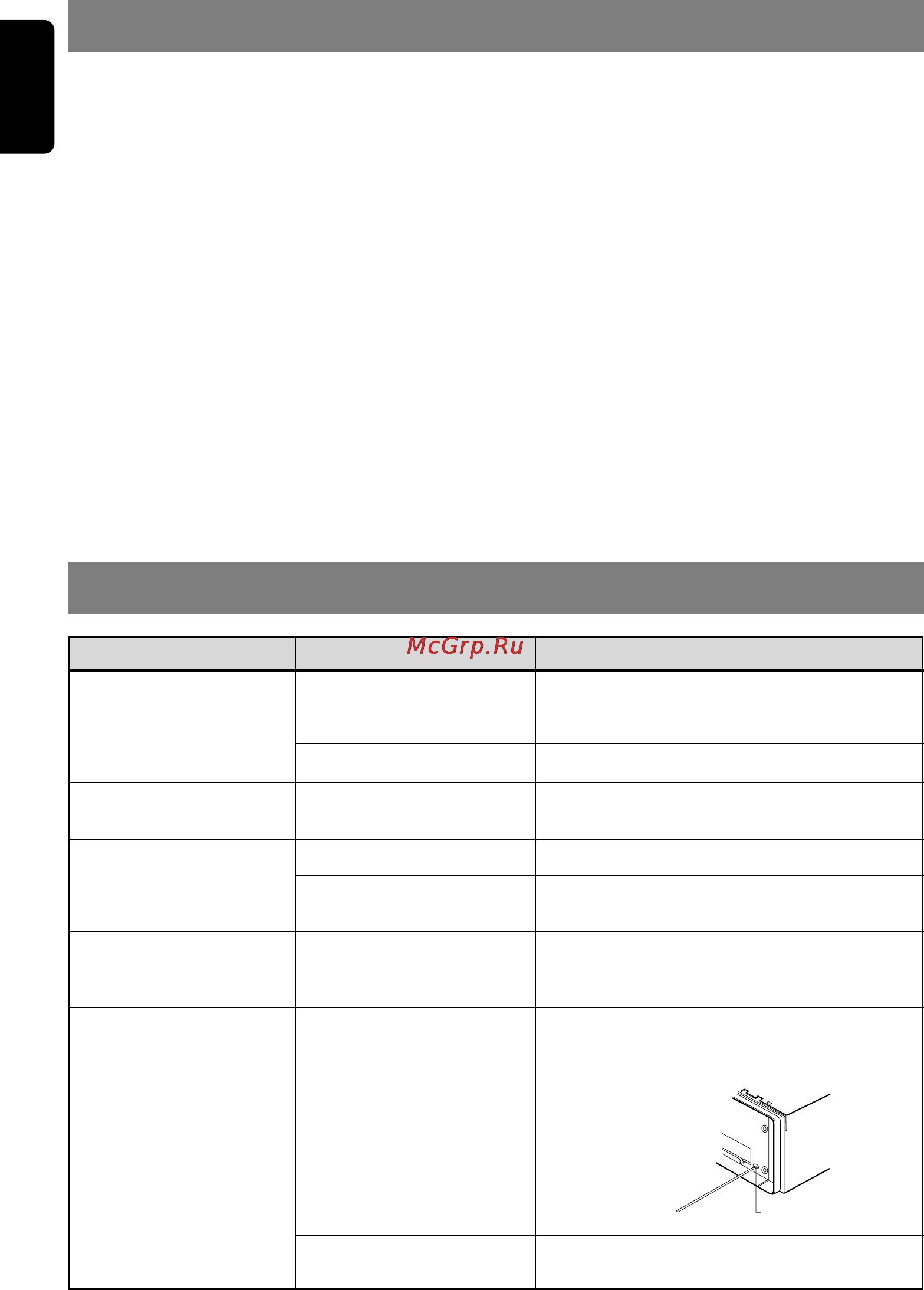

![Clarion DB168R [10/13] Specifications](/views2/1003594/page10/bga.png)
10 DB168R/BD169R/BD169RG
280-8304-00
English
7. IN CASE OF DIFFICULTY
Power does not turn on.
(No sound is produced.)
Compact disc cannot be
loaded.
Sound skips or is noisy.
Sound is bad directly after
power is turned on.
Nothing happens when
buttons are pressed.
Display is not accurate.
Problem Cause Solution
Fuse is blown.
Incorrect wiring.
Another compact disc is
already loaded.
Compact disc is dirty.
Compact disc is heaviiy
scratched or warped.
Water droplets may form on
the internal lens when the car
is parked in a humid place.
Microprocessor has
malfunctioned due to noise,
etc.
DCP or main unit connectors
are dirty.
Replace with a fuse of the same amperage. If
the fuse blows again, consult your store of
purchase.
Consult your store of purchase.
Eject the compact disc before loading the new
one.
Clean the compact disc with a soft cloth.
Replace with a compact disc with no scratches.
Let dry for about 1 hour with the power on.
Turn off the power, then press the Release
button and remove the DCP.
Press the reset button for about 2 seconds with
a thin rod.
Wipe the dirt off with a soft cloth moistened with
cleaning alcohol.
Reset button
6. SPECIFICATIONS
Radio section
Tuning System: PLL synthesizer tuner
Receiving Frequencies:
FM : 87.5 to 108 MHz (0.05 MHz steps)
MW : 531 to 1602 kHz (9 kHz steps)
LW : 153 to 279 kHz (3 kHz steps)
CD player section
System: Compact disc digital audio system
Frequency Response: 10 Hz to 20 kHz (± 1 dB)
Signal to Noise Ratio: 100 dB (1 kHz) IHF-A
Dynamic Range: 93 dB (1 kHz)
Distortion: 0.03%
General
Output Power: 4 ✕ 20 W (DIN 45324, +B=14.4V)
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable),
negative ground
Power Consumption: Less than 15 A
Speaker Impedance: 4 Ω (4 to 8 Ω allowable)
Auto Antenna Rated Current: 500 mA or less
Weight:
Main unit: 1.125 kg
Dimensions:
Main unit : 178 (W) ✕ 50 (H) ✕ 155 (D) mm
Note:
• Specifications and design are subject to change without notice for further improvement.
