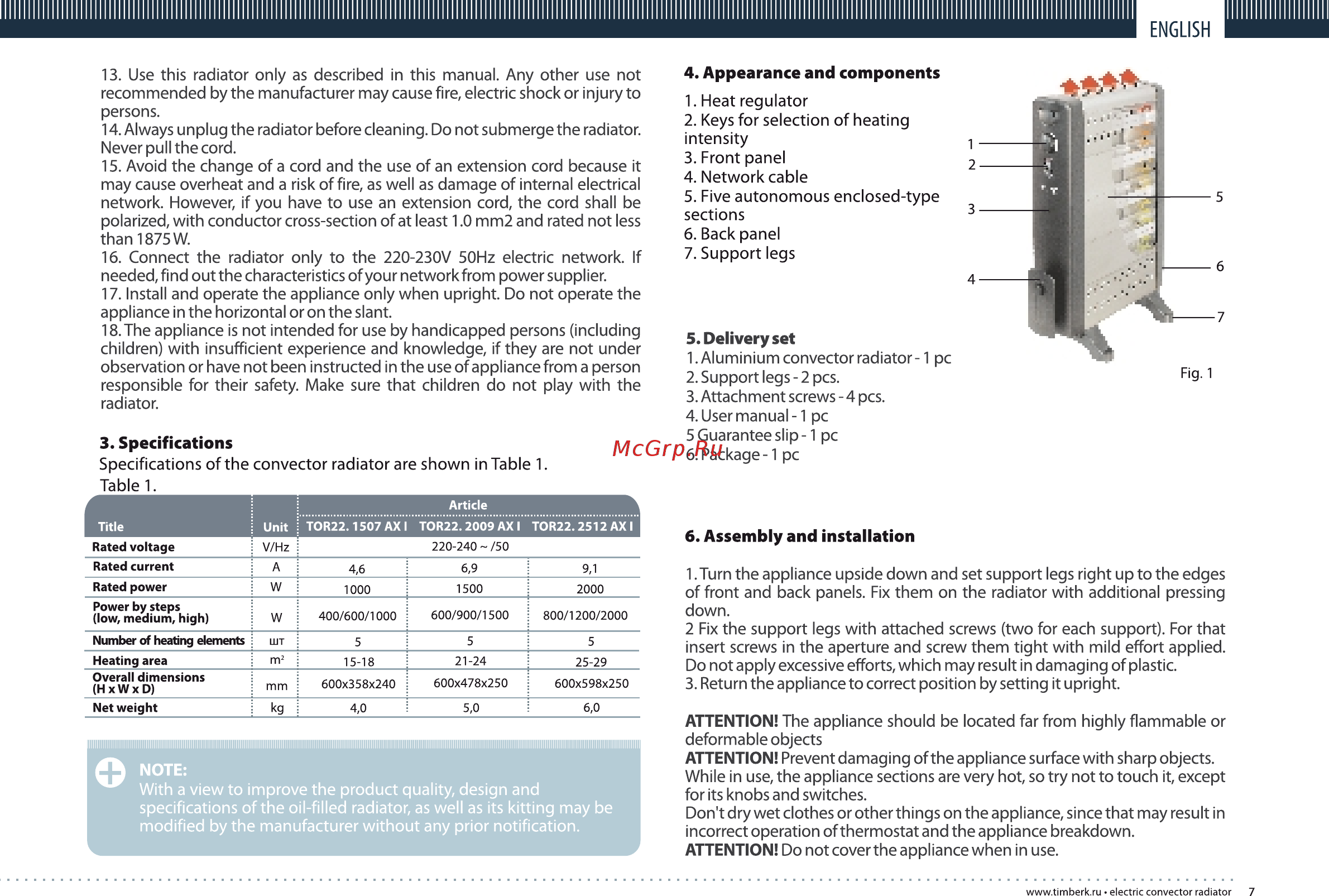

ENGLISH 13 Use this radiator only as described in this manual Any other use not recommended by the manufacturer may cause fire electric shock or injury to persons 14 Always unplug the radiator before cleaning Do not submerge the radiator Never pull the cord 15 Avoid the change of a cord and the use of an extension cord because it may cause overheat and a risk of fire as well as damage of internal electrical network However if you have to use an extension cord the cord shall be polarized with conductor cross section of at least 1 0 mm2 and rated not less than 1875 W 16 Connect the radiator only to the 220 230V 50Hz electric network If needed find out the characteristics ofyour network from power supplier 17 Install and operate the appliance only when upright Do not operate the appliance in the horizontal or on the slant 18 The appliance is not intended for use by handicapped persons including children with insufficient experience and knowledge if they are not under observation or have not been instructed in the use of appliance from a person responsible for their safety Make sure that children do not play with the radiator 3 Specifications Specifications of the convector radiator are shown in Table 1 Table 1 r Title Rated voltage 1 Heat regulator 2 Keys for selection of heating intensity 3 Front panel 4 Network cable 5 Five autonomous enclosed type sections 6 Back panel 7 Support legs 5 Delivery set 1 Aluminium convector radiator 1 pc 2 Support legs 2 pcs 3 Attachment screws 4 pcs 4 User manual 1 pc 5 Guarantee slip 1 pc 6 Package 1 pc Fig 1 Article Unit TOR22 1507 AX I TOR22 2009 AX 1 TOR22 2512AXI I 220 240 50 V Hz Rated current A 4 6 6 9 9 1 Rated power W 1000 1500 2000 Power by steps low medium high W 400 600 1000 600 900 1500 Number of heating elements LUT 5 5 5 Heating area Overall dimensions HxWxD m2 15 18 21 24 25 29 mm 600x358x240 600x478x250 600x598x250 kg 4 0 5 0 6 0 Net weight 4 Appearance and components 800 1200 2000 6 Assembly and installation I Turn the appliance upsidedown and set support legs right up to the edges of front and back panels Fix them on the radiator with additional pressing down 2 Fix the support legs with attached screws two for each support For that insert screws in the aperture and screw them tight with mild effort applied Do not apply excessive efforts which may result in damaging of plastic 3 Return the appliance to correct position by setting it upright ATTENTION The appliance should be located far from highly flammable or deformable in n I n I n in n I n I n I n I n in n I n I n I n in objects Q NOTE With a view to improve the product quality design and specifications of the oil filled radiator as well as its kitting may be modified by the manufacturer without any prior notification ATTENTION Prevent damaging of the appliance surface with sharp objects While in use the appliance sections are very hot so try not to touch it except for its knobs and switches Don t dry wet clothes or other things on the appliance since that may result in incorrect operation of thermostat and the appliance breakdown ATTENTION Do not cover the appliance when in use www timberk ru electric convector radiator 7 llllllllllllllll
