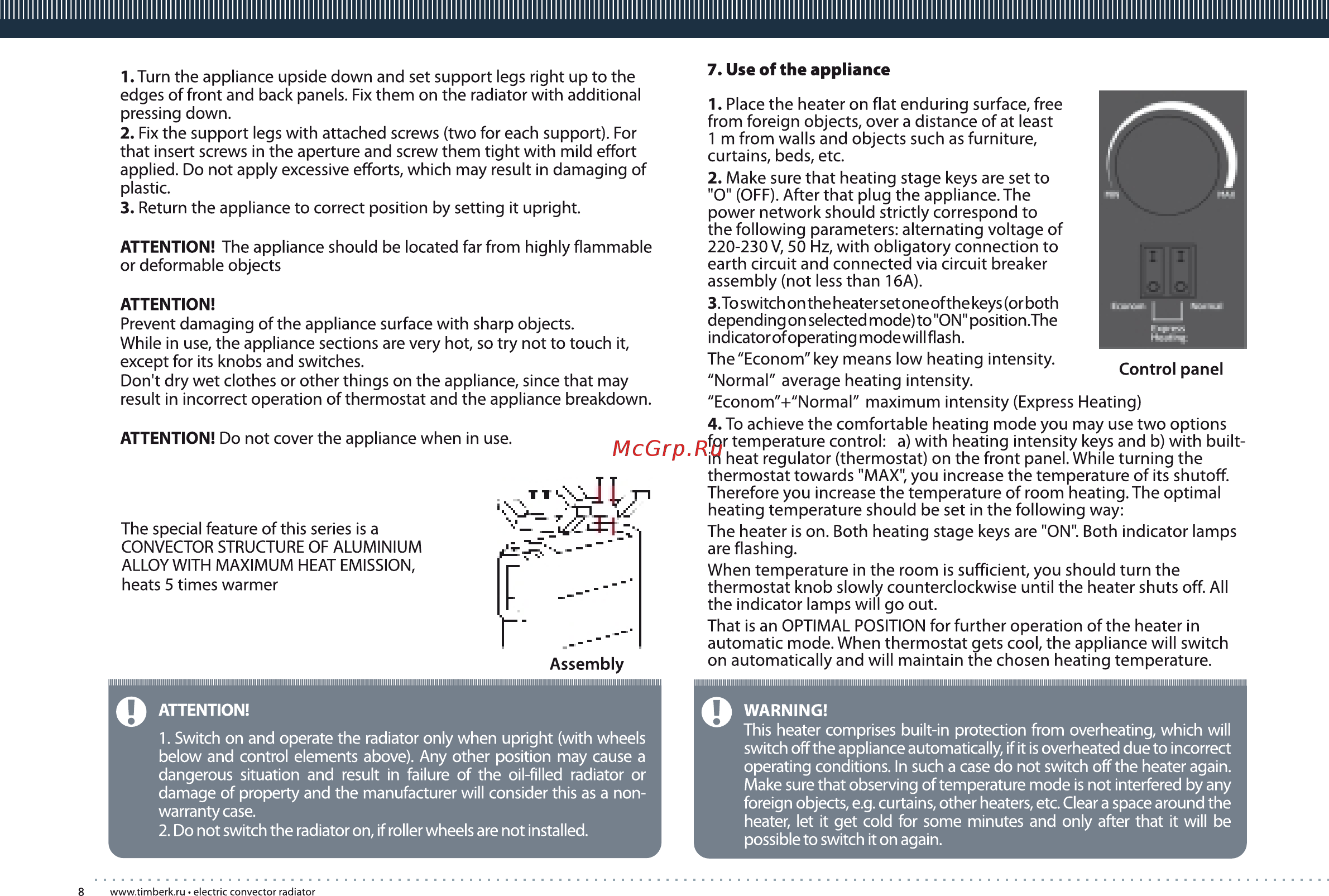

I Turn the appliance upside down and set support legs right up to the edges of front and back panels Fix them on the radiator with additional pressing down 2 Fix the support legs with attached screws two for each support For that insert screws in the aperture and screw them tight with mild effort applied Do not apply excessive efforts which may result in damaging of plastic 3 Return the appliance to correct position by setting it upright ATTENTION The appliance should be located far from highly flammable or deformable objects ATTENTION Prevent damaging of the appliance surface with sharp objects While in use the appliance sections are very hot so try not to touch it except for its knobs and switches Don t dry wet clothes or other things on the appliance since that may result in incorrect operation of thermostat and the appliance breakdown ATTENTION Do not cover the appliance when in use The special feature of this series is a CONVECTOR STRUCTURE OF ALUMINIUM ALLOY WITH MAXIMUM HEAT EMISSION heats 5 times warmer Assembly Q ATTENTION 1 Switch on and operate the radiator only when upright with wheels below and control elements above Any other position may cause a dangerous situation and result in failure of the oil filled radiator or damage of property and the manufacturer will consider this as a non warrantycase 2 Do not switch the radiator on if roller wheels are not installed 8 www timberk ru electric convector radiator 7 Use of the appliance 1 Place the heater on flat enduring surface free from foreign objects over a distance of at least 1 m from walls and objects such as furniture curtains beds etc 2 Make sure that heating stage keys are set to O OFF After that plug the appliance The power network should strictly correspond to the following parameters alternating voltage of 220 230 V 50 Hz with obligatory connection to earth circuit and connected via circuit breaker assembly not less than 16A 3 To switch on the heater set oneofthe keys or both depending on selected mode to ON position The indicatorofoperating mode willflash The Econom key means low heating intensity Control panel Normal average heating intensity Econom Normal maximum intensity Express Heating 4 To achieve the comfortable heating mode you may use two options for temperature control a with heating intensity keys and b with builtin heat regulator thermostat on the front panel While turning the thermostat towards MAX you increase the temperature of its shutoff Therefore you increase the temperature of room heating The optimal heating temperature should be set in the following way The heater is on Both heating stage keys are ON Both indicator lamps are flashing When temperature in the room is sufficient you should turn the thermostat knob slowly counterclockwise until the heater shuts off All the indicator lamps will go out That is an OPTIMAL POSITION for further operation of the heater in automatic mode When thermostat gets cool the appliance will switch on automatically and will maintain the chosen heating temperature O WARNING This heater comprises built in protection from overheating which will switch off the appliance automatically if it is overheated due to incorrect operating conditions In such a case do not switch off the heater again Make sure that observing of temperature mode is not interfered by any foreign objects e g curtains other heaters etc Clear a space around the heater let it get cold for some minutes and only after that it will be possible to switch it on again
