Timberk SWH FSQ1 30 V 30 л белый [9/40] Water heater control

www.timberk.com • electrical storage water heater

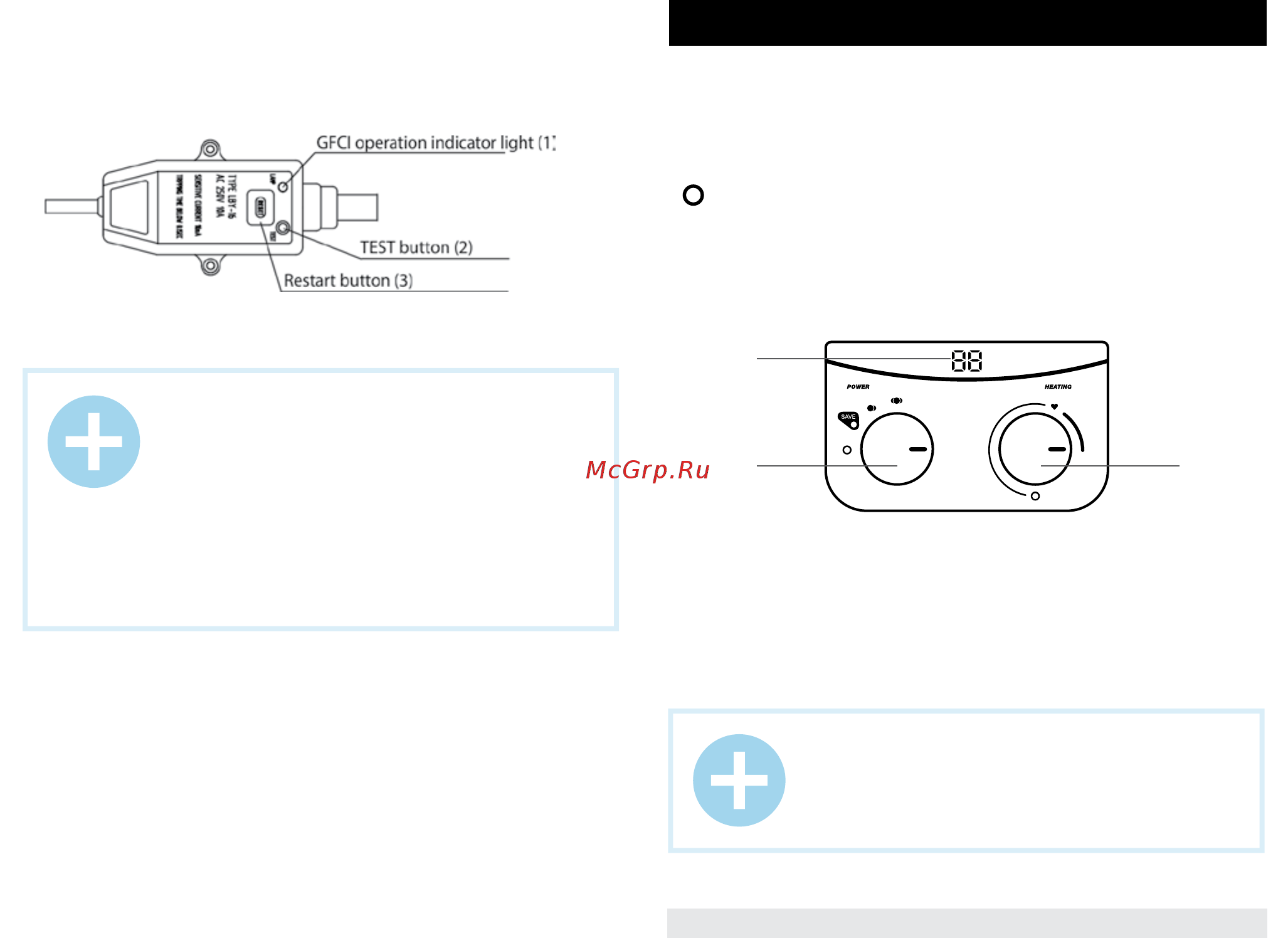

GFCI (Ground Fault Circuit Interrupter) (Fig. 9)

1. Connect the cable to the mains, indicator (1) will light up.

2. Press button (2) for testing, voltage will be cut off, indicator (1) will light

down and restart button (3) will go upwards.

3. Press button (3) to restart the appliance, voltage will be restored and

indicator (1) will light up.

Fig. 7

NOTE:

- if pressing test button (2) voltage is not cut off and/or

indicator (1) continues to be lighted, it means that GFCI

safety device is not operating properly.

- if pressing restart button (3) voltage is not restored

and/or indicator (1) doesn’t light up, it means that the

water heater is not operating properly. In both cases

disconnect the water heater and call the service center.

- to reduce the risk of an electric shock, do not

disassemble, remove or fill liquid in this appliance.

Control panel

1. Thermostat handle

Please, use this handle to set the desired temperature of water. Turning the

knob in a clockwise direction you increase temperature of water.

2. Switcher of power modes

« » - means OFF position. Turning the knob in a clockwise direction you

increase power from 800W up to 2000W

3. Indicators lighting

If light are blue it means the water heater works, but a water is not heating

inside. If lights are pink/red it means the heating element heats a water

inside tank.

8. WATER HEATER CONTROL

Fig. 8

Water heater operation

1. Switching on

1.1 At first, open one of the hot water outlet valves, then open the cold

water supply valve. The electric water heater will start filling with water.

When water flows from the hot tap freely, it means the water heater is fully

filled with water and you can close the hot water outlet valve.

NOTE:

During normal operation the cold water supply valve

must be set “open”.
