Chapter 1: Get Started with DX510
7
Appearance

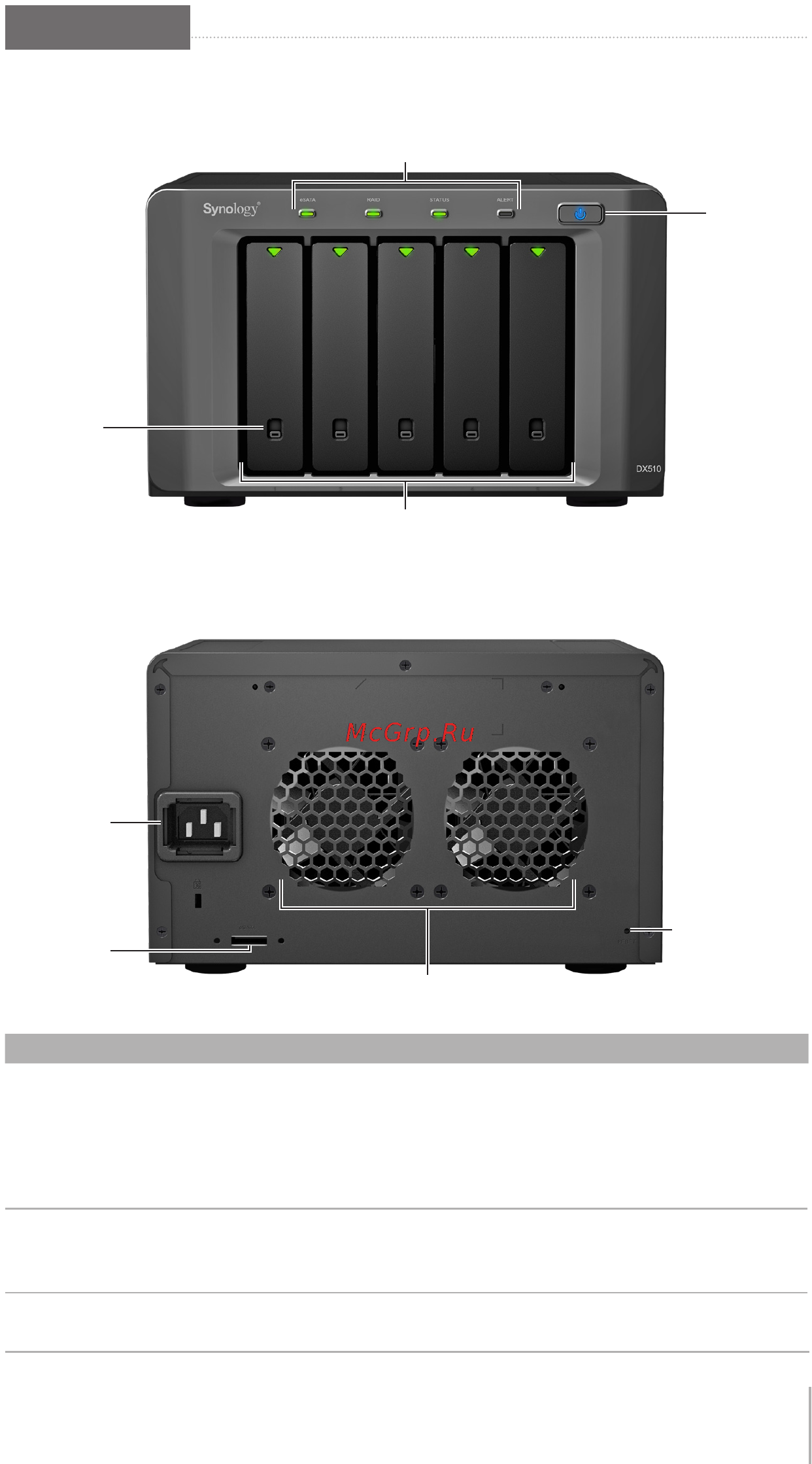

Front View
LED Indicators
POWER
Button
Hard Drive Tray
Hard Drive
Tray Lock
Back View
Power Port
eSATA Port
RESET Button
Fan
Article Name Location Description
POWER Button
Front
The POWER button is used to turn DX510 on or off.
Press and hold the button for 7 seconds to shut down
DX510.
Note:
DX510 will be turned on or off automatically when
the connected Synology DiskStation powers on or off.
LED Indicators
Front
The LED indicators are used to display the status of
the internal disks and the system. For complete details,
please refer to the next table:
LED Behavior
.
Hard Drive Tray
Front
The hard drive tray is designed for loading the hard
drives with DX510.
