Â Remember that the earth wire

must not be interrupted by the circuit-

breaker.

Â Alternatively, the electrical

connection may also be protected by

a high sensitivity differential circuit

breaker.

Â You are strongly advised to x

the relative yellow-green earth wire to

an efcient earthing system.

6.4. GAS CONNECTION

These instructions are prepared for

specialist personnel having required

competence, the installation of the

equipment should be suitable as per

the applicable standards.

All gas related works should be

conducted when the electric connection

was cut.

The value plate on the hob indicates

the gas type intended to be used for use

with the hob. Connection to the main

gas course or gas type shall be realized

after controlling the adjustment as

per the gas type. Connection to the

main gas source or gas cylinder shall

be conducted after checking the

adjustment according to the proper

gas type. If it is set properly look at the

following paragraphs:

Note that the LPG hoods should

have standarts stamp and 300 mmSS

(29,4 mbar) of outlet pressure.

Natural gas pressure is 200 mmSS

(19,6 mbar). Please consult the

authorized service for conversion to

natural gas or LPG.

Use only piping, gaskets or stamp as

per the applicable national standards.

In some countries where conic

connections are obligatory, conic

connection is provided. In such a case

the conic connection part should be

connected to the unit.

If the unit will be connected to a

exible hose, the length of the hose

shall not exceed 120 cm.

Before starting works related to gas

installation, please cut the gas supply.

Make the connection so that

no pressure will be applied on the

connection records and piping. Make

sure that the pipe will not cause any

clogging or contact with the sharp

corners.

Note that the gas hose will not be

laid through hot areas.

NOTE: Replace the gas hose of your

hob at 4 to 5 years even if it will be

undamaged.

NOTE: Check whether any gas

leakage after the connection with soap

and water. Do not ever use ame.

Make sure that no additional weight

to be applied on the gas hose.

And apply the following order for

installation:

1. In the order; male adaptor

cylindrical, gasket, female gas adaptor,

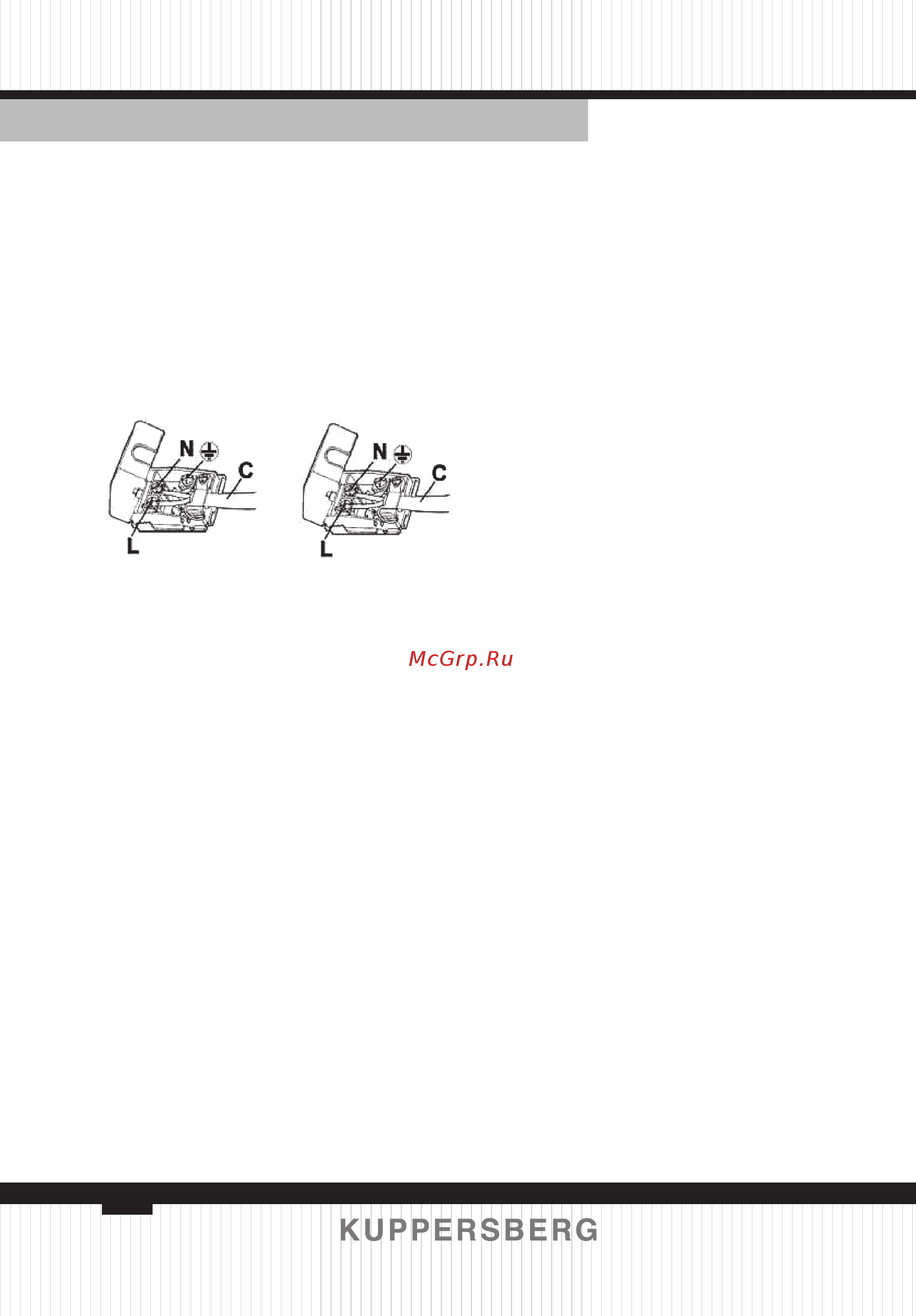

FIG. 4 FIG. 5
