6
АКВАПРОТЕКТ (рис. 6)
В случае если происходит утечка воды из
внутренней трубки (А), прозрачная внешняя
трубка (В) будет удерживать воду, чтобы
закончить цикл стирки. По окончанию
цикла стирки свяжитесь с авторизованным
сервисным центром для замены заливного
шланга.
ПРИМЕЧАНИЕ! НА УСТРОЙСТВА, БЛО-
КИРУЮЩИЕ ПОДАЧУ ВОДЫ В СЛУЧАЕ
ПРОТЕЧКИ, ГАРАНТИЯ НЕ РАСПРО-
СТРАНЯЕТСЯ.

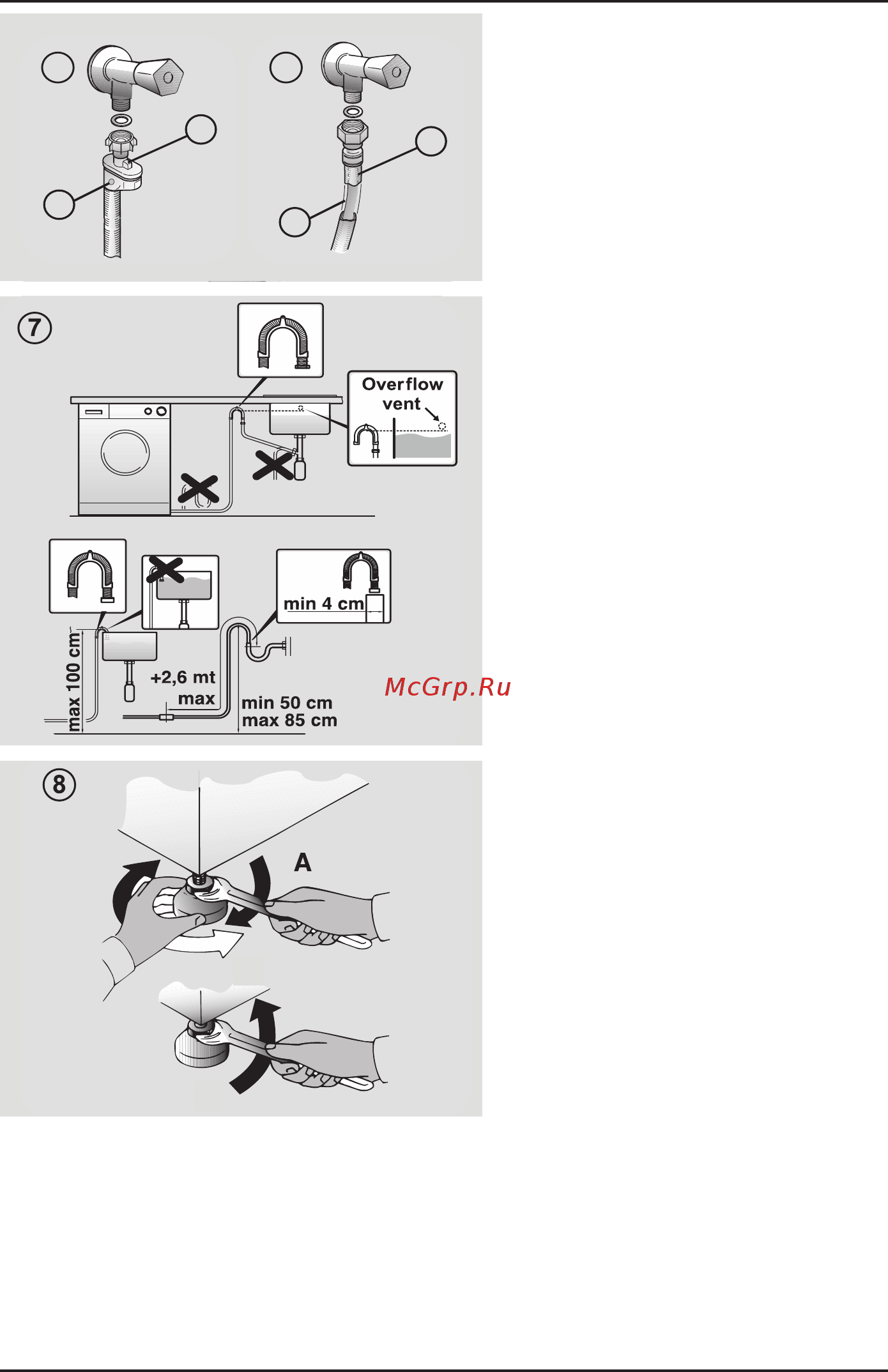

ПОДКЛЮЧЕНИЕ (рис. 7)
Стиральная машина должна быть
установлена таким образом, чтобы
заливные и сливные шланги не были
зажаты и не имели перегибов.
Гофрированный сливной шланг должен
быть подключен к трубе с высотой от пола
50-85 см, используйте изогнутый держатель
который идет в комплекте.
Если в качестве слива используется
раковина, гофрированный сливной шланг
должен быть расположен над отверстием
перелива, для предотвращения скопления
воды. Для более надежного крепления на
борту раковины используйте изогнутый
держатель.
РЕГУЛИРОВКА НОЖЕК (рис. 8)
При помощи гаечного ключа отрегулируйте
высоту 4 ножек стиральной машины в
диапазоне 820-840 мм (необходимо
снять установленные гайки и заменить их
гайками 5 мм). Используйте уровень.
1) Поверните против часовой стрелки
стопорную гайку (А), чтобы разблокировать
винт ножки.
2) Вращая винт ножки , поднимите/опустите
стиральную машину на нужную высоту.
3) Заблокируйте винт ножки, затянув
стопорную гайку (А) по часовой стрелки до
упора.
ВНИМАНИЕ! ЕСЛИ СТИРАЛЬНАЯ МАШИНА РАСПОЛОЖЕНА НА КОВРОВОМ ПО-
КРЫТИИ, УБЕДИТЕСЬ ЧТО ВЕНТИЛЯЦИОННЫЕ ОТВЕРСТИЯ НЕ ЗАБЛОКИРОВА-
НЫ.
ВНИМАНИЕ! ПОСЛЕ ПОДКЛЮЧЕНИЯ СТИРАЛЬНАЯ МАШИНА ДОЛЖНА БЫТЬ РАС-
ПОЛОЖЕНА ТАКИМ ОБРАЗОМ, ЧТОБЫ РОЗЕТКА БЫЛА ЛЕГКОДОСТУПНОЙ.
10
Level the appliance using the feet as
illustrated in figure 8:
a. turn the nut clockwise to release the
screw;
b. rotate the foot to raise or lower it until it
touches to the floor;
b. lock the foot, screwing in the nut, until it
tightens against to the bottom of the
washing machine.
Plug in the appliance.
The detergent draw is split into 3
compartments as illustrated in figure 9:
compartment "1": for prewash detergent;
compartment “ : for special additives,
softeners, starch fragrances, etc.;
compartment "2": for washing detergent.
10
WARNING:
contact the Customer Service Centre
should the power cord need
replacement.
WARNING:
some detergents are hard to remove.
In this case we recommend using the
specific container to be placed in the
drum (example in figure 10).
Detergent drawer
10
Level the appliance using the feet as
illustrated in figure 8:
a. turn the nut clockwise to release the
screw;
b. rotate the foot to raise or lower it until it
touches to the floor;
b. lock the foot, screwing in the nut, until it
tightens against to the bottom of the
washing machine.
Plug in the appliance.
The detergent draw is split into 3
compartments as illustrated in figure 9:
compartment "1": for prewash detergent;
compartment “ : for special additives,
softeners, starch fragrances, etc.;
compartment "2": for washing detergent.
10
WARNING:
contact the Customer Service Centre
should the power cord need
replacement.
WARNING:
some detergents are hard to remove.
In this case we recommend using the
specific container to be placed in the
drum (example in figure 10).
WARNING:
only use liquid products; the washing
machine is set to automatically dose
additives at each cycle during the last
rinse.
Detergent drawer
10
Level the appliance using the feet as
illustrated in figure 8:
a. turn the nut clockwise to release the
screw;
b. rotate the foot to raise or lower it until it
touches to the floor;
b. lock the foot, screwing in the nut, until it
tightens against to the bottom of the
washing machine.
Plug in the appliance.
The detergent draw is split into 3
compartments as illustrated in figure 9:
compartment "1": for prewash detergent;
compartment “ : for special additives,
softeners, starch fragrances, etc.;
compartment "2": for washing detergent.
10
WARNING:
contact the Customer Service Centre
should the power cord need
replacement.
WARNING:
some detergents are hard to remove.
In this case we recommend using the
specific container to be placed in the
drum (example in figure 10).
WARNING:
only use liquid products; the washing
machine is set to automatically dose
additives at each cycle during the last
rinse.
Detergent drawer
9
EN
Connect the water hose to the water
supply tap (fig. 3) only using the hose
supplied with the appliance (do not
reuse old hose-sets).
SOME MODELS may include one or
more of the following features:
HOT&COLD (fig. 4):
water mains connection settings with hot
and cold water for higher energy savings.
Connect the grey tube to the cold water
tap and the red one to the hot water
tap. The machine can be connected to
the cold water tap only: in this case, some
programs may start a few minutes later.
AQUASTOP (fig. 5):
a device located on the supply tube that
stops water flow if the tube deteriorates;
in this case, a red mark will appear in the
window “A” and the tube must be
replaced. To unscrew the nut, press the
one-way lock device "B".
AQUAPROTECT SUPPLY TUBE WITH
GUARD (fig. 6):
Should water leak from the primary
internal tube "A", the transparent
containment sheath "B" will contain water
to permit the washing cycle to complete.
At the end of the cycle, contact the
Customer Service Centre to replace the
supply tube.
The washing machine should be installed
in its final position such that the water fill
hose is not kinked or trapped. The
corrugated drain hose should be inserted
into suitable drain pipe of between 50 cm
and 85 cm height above the floor using
the curved drain hose support. If an under
sink connection is used the drain hose
must be routed above the sink overfill
opening to prevent back siphoning. Care
must be taken to avoid kinking or trapping
the drain hose (fig. 7).
3
1
4
B
A
5
B
A
6
Setting
Hydraulic connections
9
EN
Connect the water hose to the water
supply tap (fig. 3) only using the hose
supplied with the appliance (do not
reuse old hose-sets).
SOME MODELS may include one or
more of the following features:
HOT&COLD (fig. 4):
water mains connection settings with hot
and cold water for higher energy savings.
Connect the grey tube to the cold water
tap and the red one to the hot water
tap. The machine can be connected to
the cold water tap only: in this case, some
programs may start a few minutes later.
AQUASTOP (fig. 5):
a device located on the supply tube that
stops water flow if the tube deteriorates;
in this case, a red mark will appear in the
window “A” and the tube must be
replaced. To unscrew the nut, press the
one-way lock device "B".
AQUAPROTECT SUPPLY TUBE WITH
GUARD (fig. 6):
Should water leak from the primary
internal tube "A", the transparent
containment sheath "B" will contain water
to permit the washing cycle to complete.
At the end of the cycle, contact the
Customer Service Centre to replace the
supply tube.
The washing machine should be installed
in its final position such that the water fill
hose is not kinked or trapped. The
corrugated drain hose should be inserted
into suitable drain pipe of between 50 cm
and 85 cm height above the floor using
the curved drain hose support. If an under
sink connection is used the drain hose
must be routed above the sink overfill
opening to prevent back siphoning. Care
must be taken to avoid kinking or trapping
the drain hose (fig. 7).
3
1
4
B
A
5
B
A
6
Setting
Hydraulic connections
