DTX501E 19

English

Owner’s

Manual

DVB-T

Video Format: MPEG-2.

Main Menu: Installation, System, Channel list and

Preferences.

Frequency Range: 174 MHz-230 MHz

470 MHZ-862 MHz

Sensitivity: ≤ -79.5 dbm .

General

Power source voltage:

14.4 V DC (10.8 to 15.6 V allowable)

Video output level: 1.0 Vp-p (75 ohm)

Antenna impedance: 50 ohm

Ground: Negative

DTX501E dimensions:

(125 mm) width, (30 mm) height, (95 mm) depth

DTX501E weight: 320 g

Note:

• Speciﬁcations and design are subject to change

without notice for further improvement.

14. INSTALLATION/WIRE CONNECTION GUIDE

1. Before Starting

1. This set is exclusively for use in cars with a negative ground

12V power supply.

2. Read these instructions carefully.

3. Be sure to disconnect the battery “-” terminal before starting.

This is to prevent short circuits during installation. (Figure 1)

2. Package Contents

Main Unit ............................................................. 1

Remote Control ................................................... 1

Battery (CR2025) ................................................. 1

(Installed in remote control)

IR Cable ............................................................... 1

TV Antenna .......................................................... 2

Power Cable ........................................................ 1

Connector Cable(8PIN Cable) ............................. 1

Connector Cable(RCA) ....................................... 1

Installation Brackets ............................................ 2

Installation Screw M2.6 ....................................... 4

Installation Screw M3 .......................................... 4

Warranty Card ..................................................... 1

Owner’s Manual and Installation Manual ............ 1

CONTENTS

1. Before Starting ..................................................................................................................19

2. Package Contents .............................................................................................................19

3. General Cautions...............................................................................................................19

4. Cautions On Installation ....................................................................................................19

5. Cautions On Wiring ...........................................................................................................20

6. Wire Connections ..............................................................................................................20

13. SPECIFICATIONS

3. General Cautions

1. Do not open the case. There are no user- serviceable parts inside. If you drop anything into the unit during installation, consult

your dealer or an authorized Clarion service center.

2. Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol etc. For tough dirt, apply a little

cold or warm water to a soft cloth and wipe off the dirt gently.

4. Cautions on Installation

1. Prepare all articles necessary for installing the source unit

before starting.

2. If you have to do any work on the car body, such as drilling

holes, consult your car dealer before hand.

3. Use the enclosed screws for installation. Using other screws

can cause damage.

Chassis Chassis

Damage

Max. 8 mm (M5 screw)

Max. 4mm (M2.6 screw)

Chassis Chassis

Damage

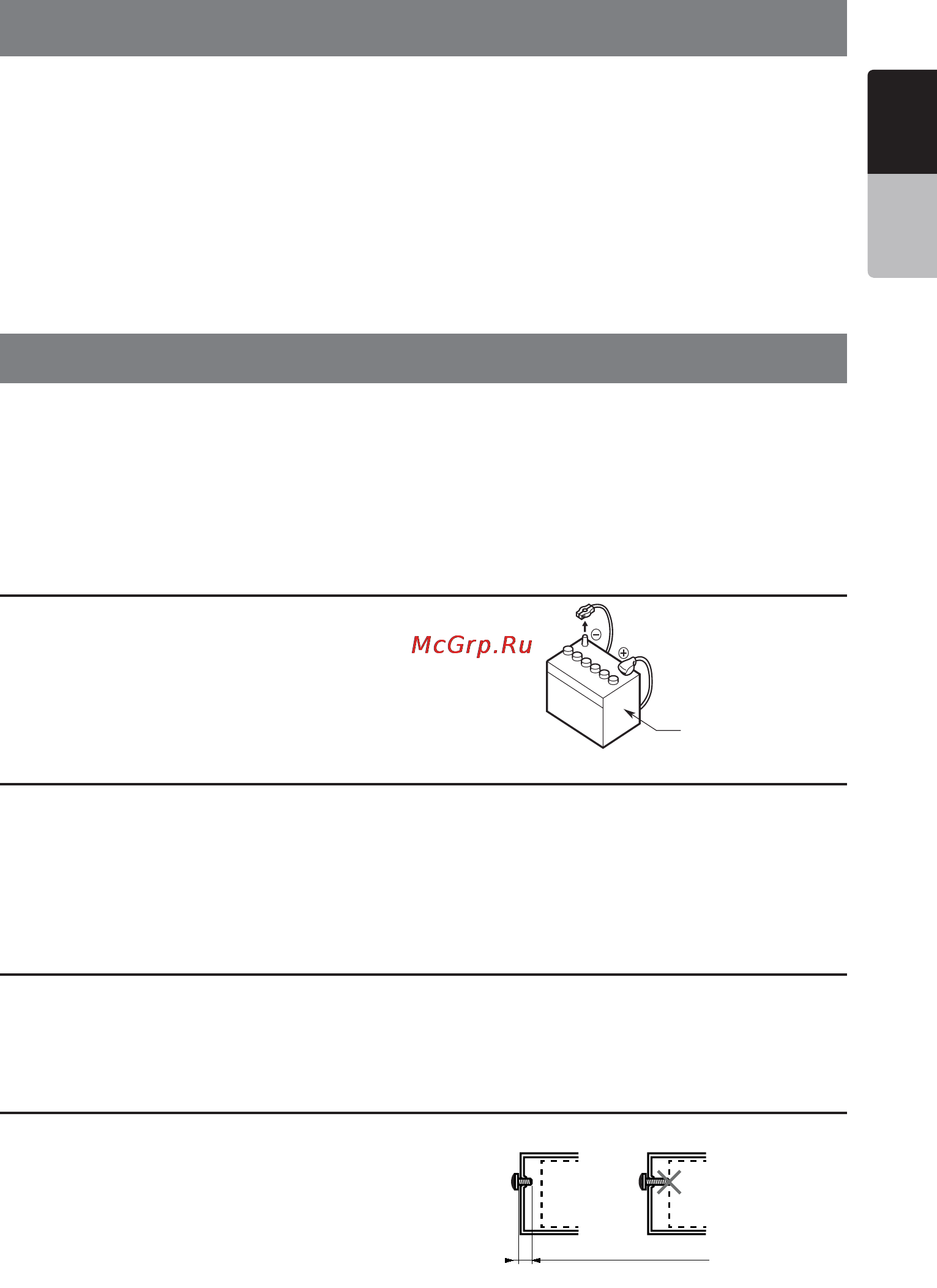

Figure 1

Car battery
