Hitachi DV14DMRTH [11/47] 2 model dv 14dmr
![Hitachi DV14DMRTH [11/47] 2 model dv 14dmr](/views2/1366196/page11/bgb.png)
--- 8 ---
Screwdriver Machine screw
••••••••
6 mm (1/4")
Wood screw
••••••••••••
8 dia. x 75 mm (#20 x 3")
Drill Brick
••••••••••••••••••••••
14 mm (9/16") [Depth 30 mm (1-1/4")]
Metal
••••••
Mild steel 13 mm (1/2") [Thickness 1.6 mm (1/16")]
Aluminum 13 mm (1/2") [Thickness 1.6 mm (1/16")]
Wood
••••••••••••••••••••••
45 mm (1-25/32") [Thickness 18 mm (11/16")]
Mount type
••••••
Screw-on (UNF 1/2" --- 20)
Diameter
•••••••••
1.5 --- 13 mm (1/16" --- 1/2")
Low: 0 --- 400/min, High: 0 --- 1,750/min
Slip torque
••••••••
1.5 --- 7.0 N
•
m (15 --- 70 kgf
•
cm, 13 --- 61 in-lbs.) [22 stages]
Max. torque
•••••••
Low: 52 N
•
m (530 kgf
•
cm, 460 in-lbs.) High: 10 N
•
m (102 kgf
•
cm, 89 in-lbs.)
Fan cooled DC magnet motor
Trigger switch with pushing button for forward and reverse rotation changeover (with brake)
T-type (with soft-grip handle)
Body
•••••••
Glassfiber reinforced polycarbonate resin (black) and thermoplastic elastomer (green)
Battery
••••
Glassfiber reinforced polyamide resin (black)
Charger
••
ABS resin (black)
Sealed cylindrical nickel-cadmium storage battery
Nominal voltage
•••••••••••••••
DC 14.4 V
Nominal life
•••••••••••••••••••••
Charging/discharging: Approx. 1,000 times
Nominal capacity
•••••••••••••
2.0 Ah
Sealed cylindrical nickel-metal-hydride storage battery
Nominal voltage
•••••••••••••••
DC 14.4 V
Nominal life
•••••••••••••••••••••
Charging/discharging: Approx. 500 times
Nominal capacity
•••••••••••••
2.6/3.0 Ah
Overcharge protection system:
(1) Battery voltage detection (
2
V system)
Ni-MH battery temprature detection (dT/dt system) for Ni-MH battery
(2) Battery surface temperature detection (thermostat or thermistor)
(3) 120 minutes timer
Power input: 56 W
Charging time: Approx. 50 minutes [for type EB 14B battery at 20ûC (68ûF)]
Approx. 60 minutes [for type EB 1426H battery at 20ûC (68ûF)]
Approx. 70 minutes [for type EB 1430H battery at 20ûC (68ûF)]
Operable ambient temperature range: 0 ûC --- 40ûC (32ûF --- 104ûF)
The maximum allowable temperature of the type EB 14B battery is 60ûC (140ûF) and
the type EB 1426H or EB 1430H battery is 45ûC (113ûF).

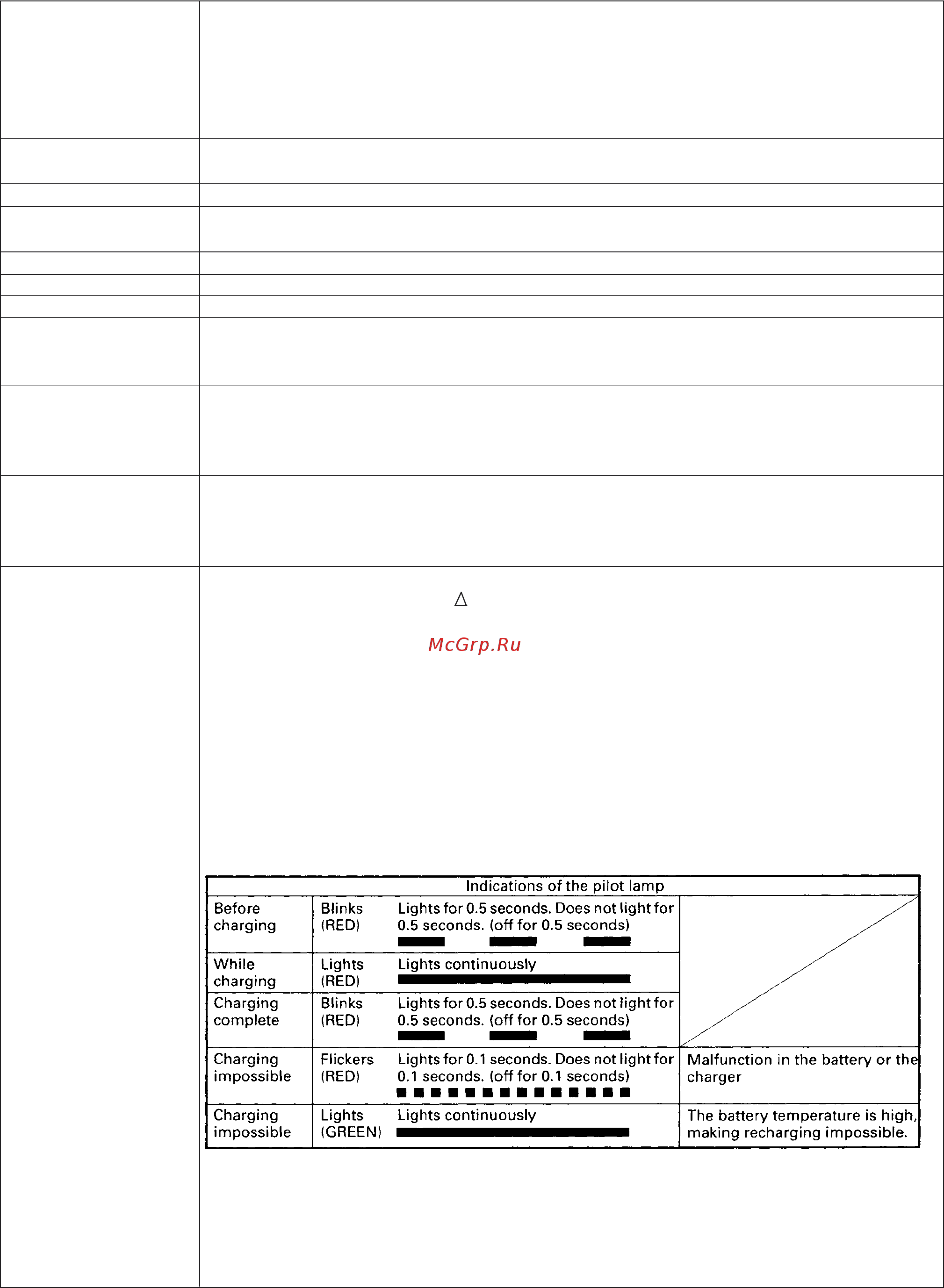

Indication method of battery charging function:
5-2. Model DV 14DMR
Capacity
Keyless chuck
(13VLRL-N)
Rotation speed (No-load)
Type of motor
Torque
Type of switch
Handle configuration
Enclosure
Battery
(Type EB 14B)
Charger
(Model UC 14YFA)
Battery
(Type EB 1426H/
EB 1430H)
