--- 4 ---

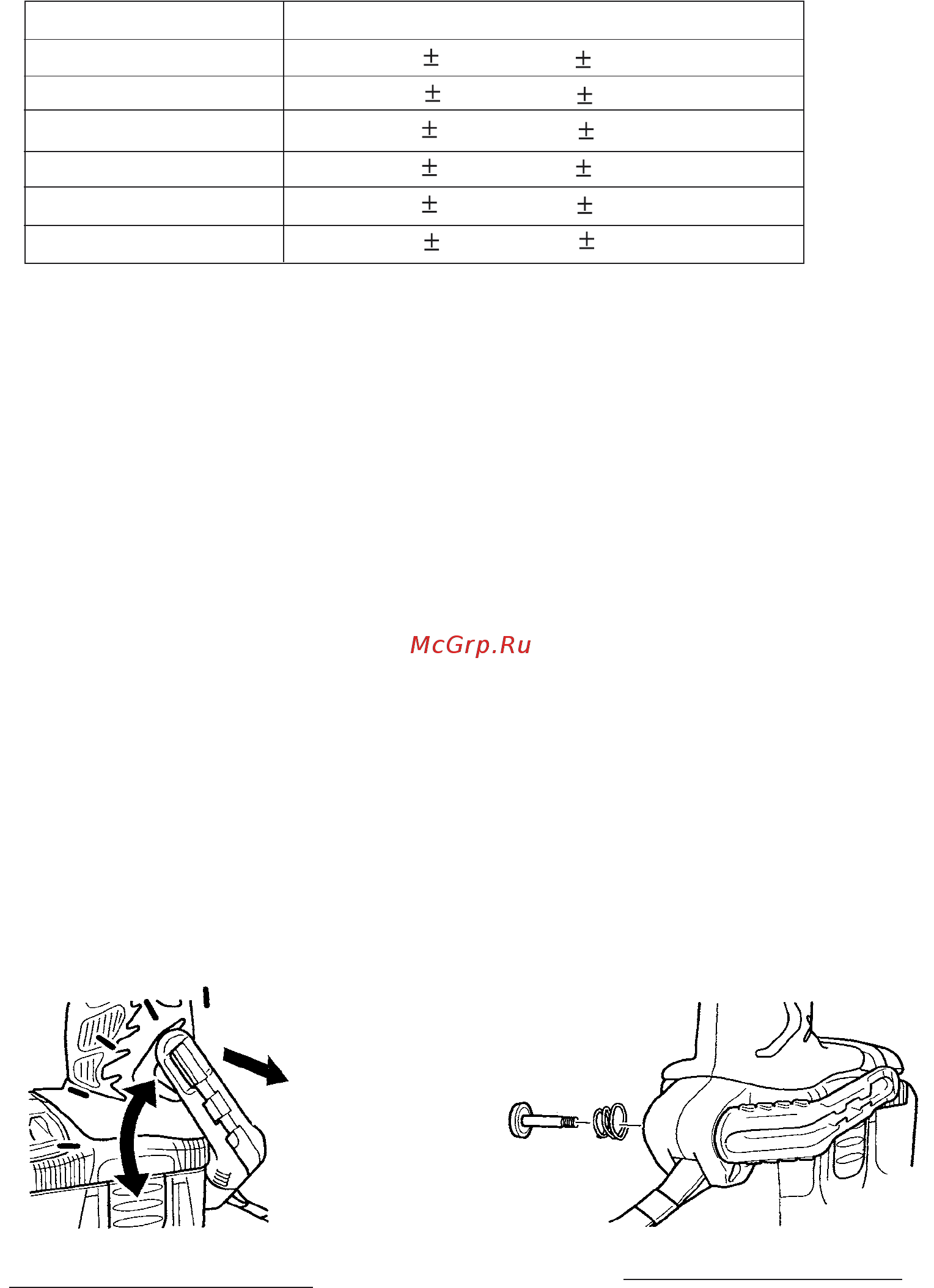

4-1-3. 22-position torque adjustable clutch
The 22-stage clutch ensures fine torque adjustment (see Table 3). The tightening torque is selectable up to
7 N
•
m. The wider torque selectable range extends the range of applicable works.
4-1-4. 13 mm keyless chuck is operable with one hand and equipped with ratcheting lock mechanism
The sleeve can be turned with one hand. The driver bits can be easily replaced by holding the main unit with one
hand while turning the sleeve with the other hand. The Models DV 18DMR and DV 14DMR are also equipped
with the ratcheting lock mechanism to prevent the sleeve from loosening during operation. A simple twist until a
click is heard locks the sleeve tight.
4-1-5. Soft-grip handle
The handle is widely covered with soft-touch elastomer (rubber-like soft resin). It is slip-resistant and securely fits
in the palm of a hand even if the gripping hand sweats.
4-1-6. One-touch hook
(1) The hook can be quickly slid out whenever necessary and slid in when not necessary.
(2) The hook is mountable on either side using a flat-blade screwdriver or a coin.
(3) The angle of the hook is adjustable in five steps.
* There may be difference in operation depending on the screw shapes and workpieces.
Perform a test before actual driving.
Clutch cap position
1
4
10
13
19
22
Tightening torque
1.5 0.5 N
•
m {15 5 kgf
•
cm}
2.3 0.6 N
•
m {23 6 kgf
•
cm}
3.8 0.7 N
•
m {38 7 kgf
•
cm}
4.6 0.8 N
•
m {46 8 kgf
•
cm}
6.2 0.9 N
•
m {62 9 kgf
•
cm}
7 1.0 N
•
m {70 10 kgf
•
cm}
Angle-adjustable in 5 steps
Mountable on either side
Table 3
