ENGLISHen
10
carried out. Before fitting the battery pack, make
sure that the machine is switched off.
6.1 Battery pack
Charge the battery pack before use (8).
If performance diminishes, recharge the battery
pack.
The ideal storage temperature is between 10°C and
30°C.
"Li-Power" li-ion battery packs have a capacity and
signal indicator: (11)
- Press the button (10), the LEDs indicate the
charge level.
- If one LED is flashing, the battery pack is almost
flat and must be recharged.
Removal:
Press the battery pack release (9) button and pull
the battery pack (8) forwards
.
Inserting:
Slide in the battery pack (8) until it engages.
6.2 Setting the direction of rotation, engag-
ing the transporting safety device
(switch-on lock)
Do not actuate the rotation selector switch or
engage the transportation lock (4) unless the
motor has stopped completely!
Actuate the rotation selector switch / Engage the
transportation lock (4)
R = Right rotation set
(insert screws)
L = Left rotation set
(remove screws)
0 = Central position: transportation lock setting
(switch-on lock)
6.3 Switching on and off
Switching on: press the trigger switch (5).
Switching off: release the trigger switch (5).
6.4
Speed
/ Tightening torque
The speed and tightening torque are connected
directly. The lower the speed, the lower the tight-
ening torque.
The tightening torque is influenced in two ways:
1) Preselect maximum tightening torque.
You can select one of three tightening torque
settings by pressing the button (7). The maximum
tightening torques are provided in the table on page
3 (M
MAX
, M
MED
, M
MIN
).
Button (7) lights up to indicate which setting is
selected.
= Does not light up = max. torque
= Flashing = medium torque
= Continuously lit = min. torque
2) Stepless adjustment of the tightening torque:
The speed and tightening torque can be adjusted
steplessly by pressing the trigger (5) firmly or lightly,
thus adapting to working conditions.
Recommendation: determine the correct setting
by carrying out trial screwdriving.
6.5
Changing screwdriving bit
for
SSD...
Inserting screwdriving bit: Slide locking sleeve
(3) forward and insert screwdriving bit as far as the
stop. Release locking sleeve (3).
Pull on the screwdriver bit to check that it is
correctly seated.
Removing screwdriving bit: Slide locking sleeve
(3) forward and remove screwdriving bit.

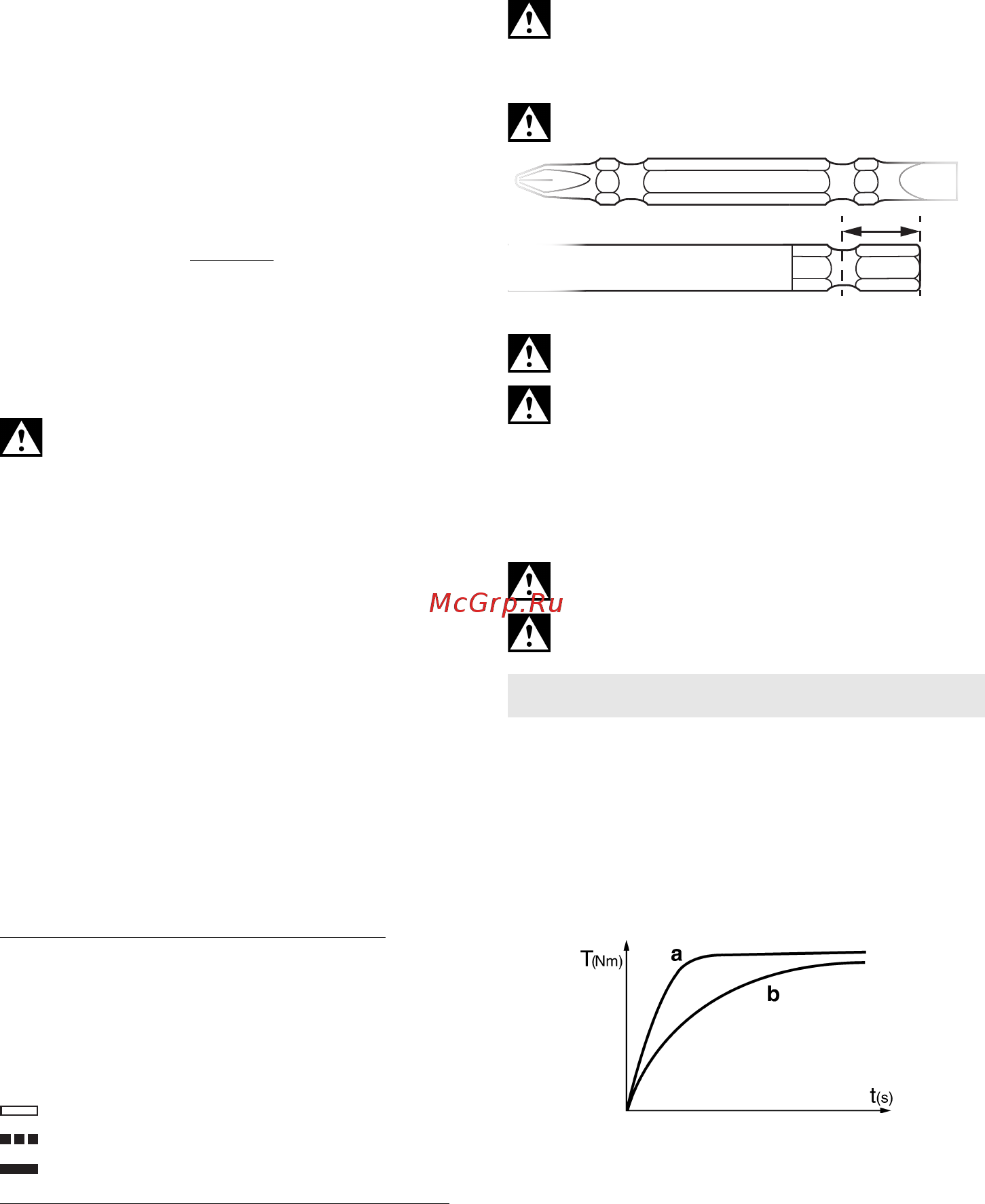

Only use screwdriving bits with such plug-in
ends:
The screwdriving bit used must match the
screw.
Damaged screwdriving bits must not be used.
6.6
Changing
SSW... screwdriving bits
Inserting screwdriving bit: Fit the tool on the
square attachment (1) until the limit stop.
Removing screwdriving bit: Pull the tool from the
square attachment (1).
The screwdriving bit used must match the
screw.
Damaged screwdriving bits must not be used.
Mount the machine on the screw, ensuring it is
aligned straight.
The screwdriving process has two elements:
inserting the screw and
tightening the screw with the percussion mech-
anism.
The tightening torque depends on the impact dura-
tion.
With an impact duration of approx. 5 seconds, the
maximum tightening torque has been reached.
The torque curve depends on the type of applica-
tion:
With a hard screwdriving application (screw-
couplings in hard material such as metal), maximum
MAX
MED
MIN
7. Use
9,5 mm (3/8“)
