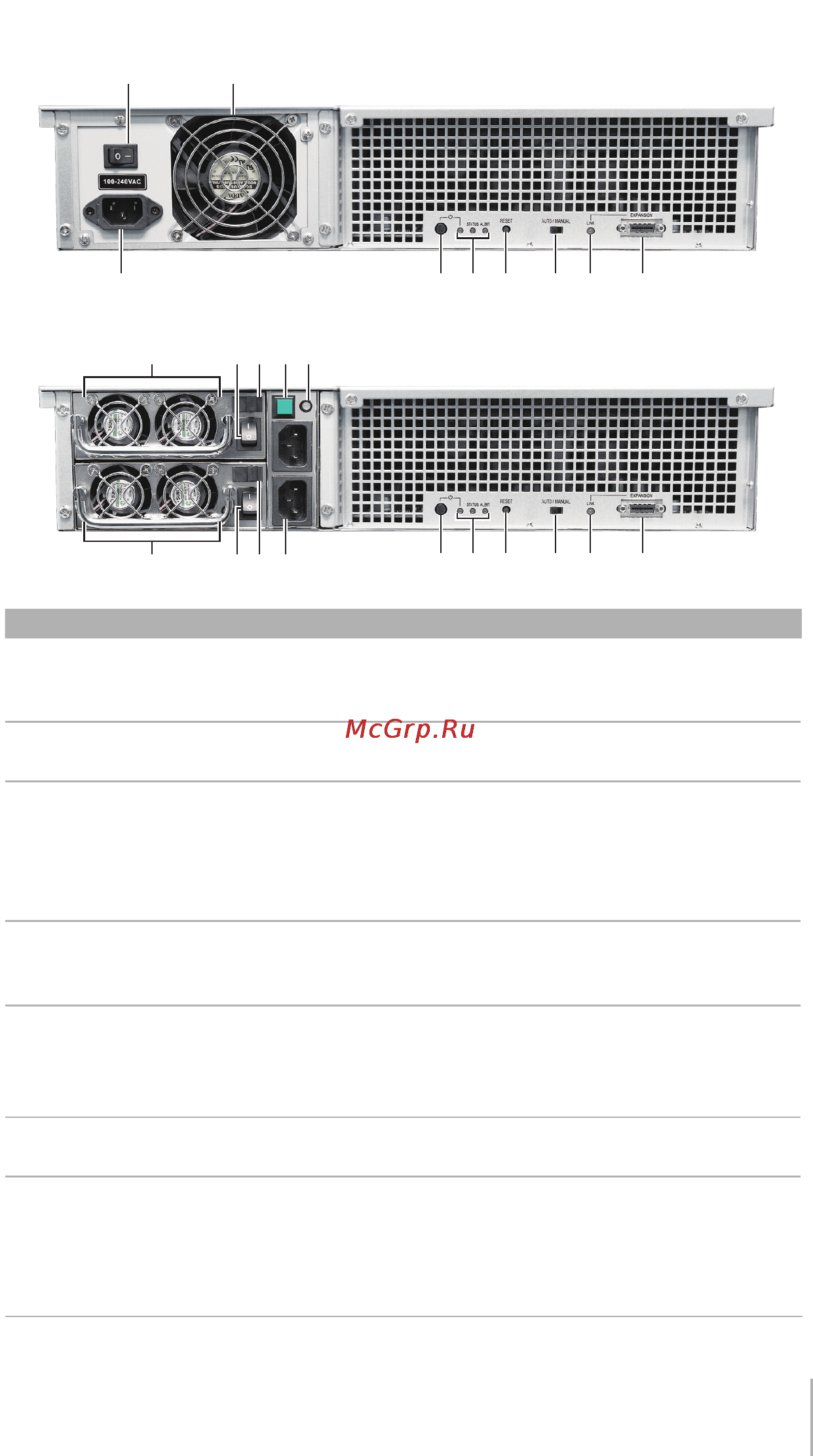

Chapter 1: Get Started with RX1211/RX1211RP
7
Back View
78
9
3 1 4 5 1 6
RX1211
RX1211RP
3910
10 11 1
87
7 8
1 4 5 1 6
Article Name Description
1
LED
Indicators
The LED indicators are used to display the status of the system.
For complete details, please refer to the next table:
LED
Behavior
.
2
Hard Drive
Trays
The hard drive trays are designed for loading the hard drives
with RX1211/RX1211RP.
3
POWER
Button
The POWER button is used to turn RX1211/RX1211RP on
or off. Press and hold the button for 7 seconds to shut down
RX1211/RX1211RP.
Note:
The POWER button only works when you slide the AUTO/
MANUAL switch (No. 5) to MANUAL.
4
RESET
Button
The RESET button is used to restore the settings to the factory
default.
5
AUTO/
MANUAL
Switch
The AUTO/MANUAL switch is used to enable or disable
automatic power on/off. If it is set to AUTO, RX1211/RX1211RP
will be turned on or off automatically when the connected Synology
RS2211+/RS2211RP+ powers on or off.
6
EXPANSION
Port
The EXPANSION port is used to connect RX1211/RX1211RP to
RackStation.
7 Fan
The power fans are built to exhaust waste heat out of the power
supply.
The system fans (inside RX1211/RX1211RP) are built to
exhaust waste heat out of RX1211/RX1211RP. If the fan is not
working, RX1211/RX1211RP will “beep” every few seconds.
