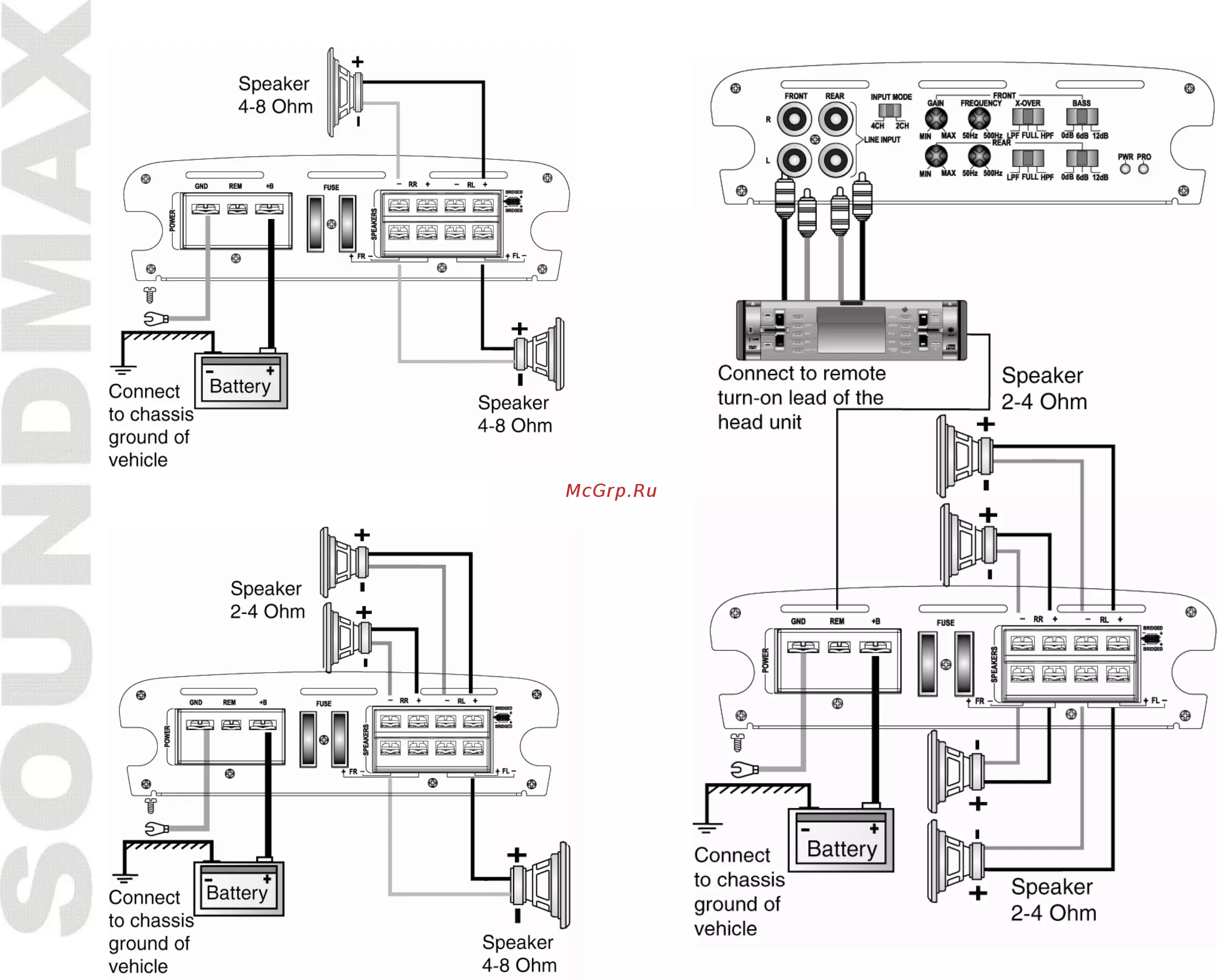

Speaker connection

This amplifier can operate in one-, two-, three- or four-channel mode. The minimum impedance for single

channel bridged operation is 4 or 8 ohms, mono operation 2 - 4 Ohm. Tri-channel power is referred to

stereo and mono at the same time. Minimum impedance remains the same for three channel

(front/subwoofer) systems when proper passive crossovers are used. Connect right and left speaker wire to

corresponding speaker output terminals of the amplifier. Be sure to have the positive wire from the speaker

connected to the positive speaker terminal of the amplifier and the negative wire from the speaker must

connect with the negative terminal of the amplifier. Reversing any of the connections will result in the

speaker cones moving out of phase which causes bass cancellation.
