12

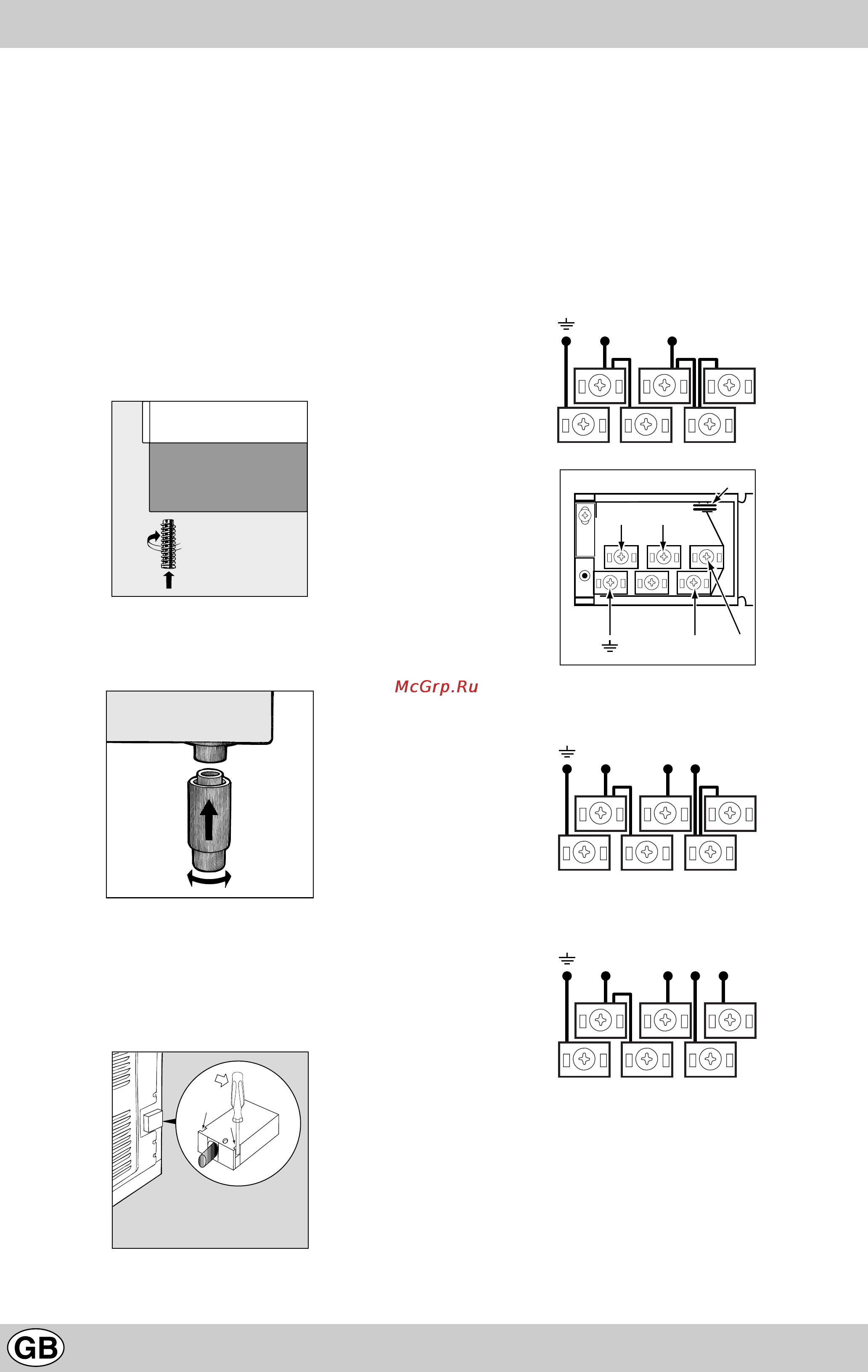

Installation Instructions
The following instructions should be read by a qualified
technician to ensure that the appliance is installed,
regulated and technically serviced correctly in compliance
with current regulations.
Important: The power supply to the appliance must be
cut off before any adjustments or maintenance work is
done on it.
Positioning
The cooker is manufactured with type X degree protection
against overheating.
Levelling Your Appliance (only on certain models)
4 support feet which are adjusted using screws are located
in the lower part of the cooker. These level off the oven
when necessary. It is essential that the cooker be standing
level.
Mounting the legs (only on certain models)
Press-fit legs are supplied which fit under the base of your
cooker.
Fitting on a Power Supply Cable
Opening the terminal board:
• Using a screwdriver, prise on the side tabs of the
terminal board cover;
• Pull open the cover of the terminal board.
To install the cable, proceed as follows:
• unscrew the wire clamp screw and the contact screws
Note: the jumpers are factory-set for a single-phase
230V connection (Fig. A).
• to make the electrical connections illustrated in fig. C
and fig. D, use the two jumpers housed in the box (fig.
B - reference “P”)
• fasten the supply cable in place with the clamp and
close the cover of the terminal board.
NL
230V 1N~
H07RN-F 3x4 CEI-UNEL 35364
1
3
2
4
5
Fig. A
N
L2
L1
L3
P
Fig. B
NL2L1
400V 2N~
H05RR-F 4x2.5 CEI-UNEL 35363
1
3
2
4
5
Fig. C
NL3L1L2
400V 3N~
H05RR-F 5x2.5 CEI-UNEL 35363
1
3
2
4
5
Fig. D
Connecting the supply cable to the mains
Install a standardised plug corresponding to the load
indicated on the data plate. When connecting the cable
directly to the mains, install an omnipolar circuit-breaker
with a minimum contact opening of 3 mm between the
appliance and the mains. The omnipolar circuit breaker
should be sized according to the load and should comply
with current regulations (the green-yellow earth wire should
not be interrupted by the circuit breaker). The supply cable
should be positioned so that it does not reach a tempera-
