AXIS 215 PTZ/AXIS 215 PTZ-E - Setup
12

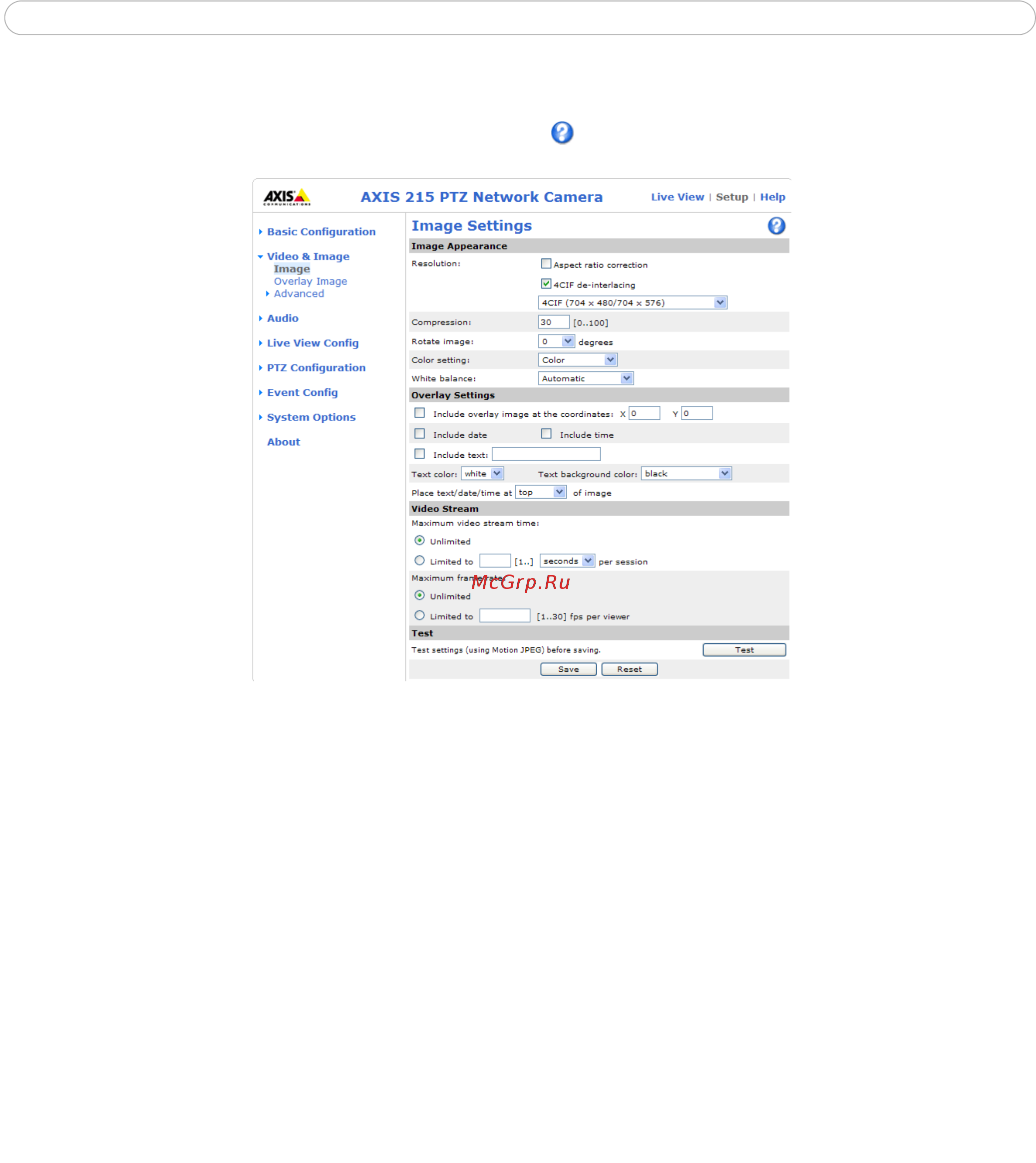

Video & Image settings
The following descriptions offer examples of the available features in the AXIS 215 PTZ/AXIS 215 PTZ-E. For
details of each setting, please refer to the online help files
.
To optimize the video images to your requirements, modify the following settings under Image Appearance:
• Resolution (including Aspect ratio correction and 4CIF de-interlacing)
• Compression
•Rotate image
• Color setting
Notes: •All configuration of images and overlays will affect the performance of the AXIS 215 PTZ/AXIS 215 PTZ-E, depending on the usage and
the available bandwidth. Please keep in mind the following when changing the image settings:
• Lower compression improves image quality, but generates larger files
• Color uses more bandwidth than Black & White
• Rotating the image will lower the maximum frame rate
• When using MPEG-4 as the video format, the compression setting will define the minimum compression level. The compression level will
temporarily increase as and when required, i.e. when the bit rate approaches the maximum value as defined in the current profile@level
combination.
• In certain conditions, the white balancing system will not operate effectively. See Video Image Problems, on page 43 for more
information.
You may need to click the Stop and Play buttons on the Live View page before the settings take effect.
