AXIS 215 PTZ/AXIS 215 PTZ-E - Setup
15
MPEG-4

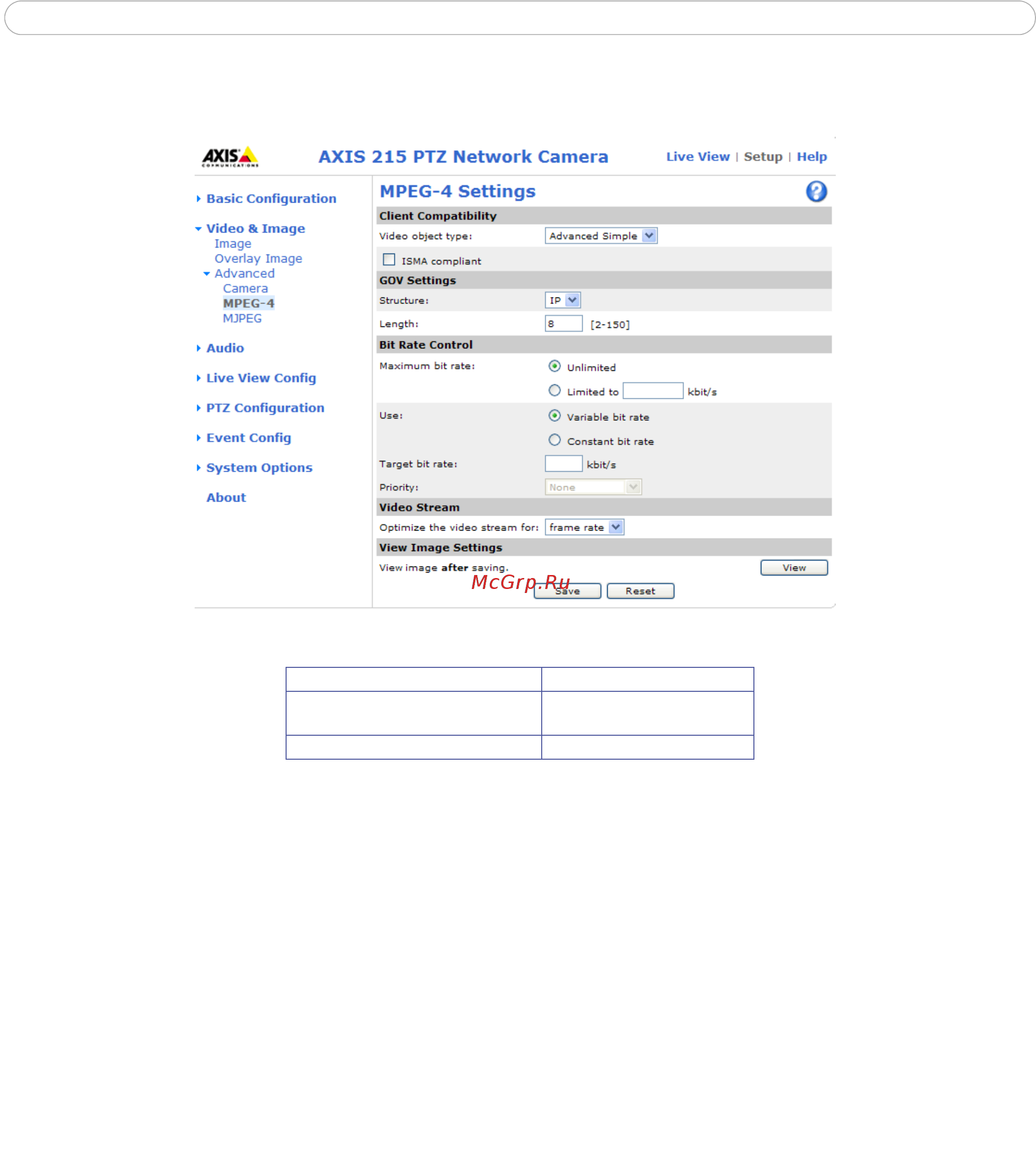

The AXIS 215 PTZ/AXIS 215 PTZ-E supports the following different MPEG-4 profiles and levels
:
Level 5 is preferred if there is enough bandwidth available, as the image quality of the video stream will be
better than if level 3 is used. The viewing client must support the profile used for the video stream otherwise the
MPEG-4 stream can not be viewed.
Note: AXIS Media Control supports all the configuration possibilities available on this page.
Client Compatibility
Select the correct combination of Video object type and ISMA compliant to use for your viewing client.
Video object type can be:
• Simple - This sets the video coding type to H.263, as used by e.g. QuickTime.
• Advanced Simple - Sets the video coding type to MPEG-4 part 2, as used by e.g. AMC (AXIS Media
Control). This is the recommended setting.
ISMA compliant - This option when enabled configures the generated stream to be ISMA compliant, which
includes limiting the bit rate to 1500 kbit/s.
GOV Settings
The GOV structure can be set to either I or IP, which describes the type of images included in the video stream,
as well as their internal order. The IP-structure generally sends the differences compared to the previous image
and far fewer complete images, so this method uses much less bandwidth than the I-structure. The I-structure
gives higher frame rates when using a high resolution, but requires more bandwidth.
The GOV length determines the sum total of P-images and I-images in a GOV. Setting the GOV length to a high
value saves considerably on bandwidth. However there may be noticeable decay in the image at high values.
Profile@Level Properties
Advanced Simple Profile @ Level 3b Max bit rate = 1,5 Mbps
ISMA compliant
Advanced Simple Profile @ Level 5 Max Bit rate = 8 Mbit/s
