6
AXIS 216FD/FD-V/MFD/MFD-V - Product overview

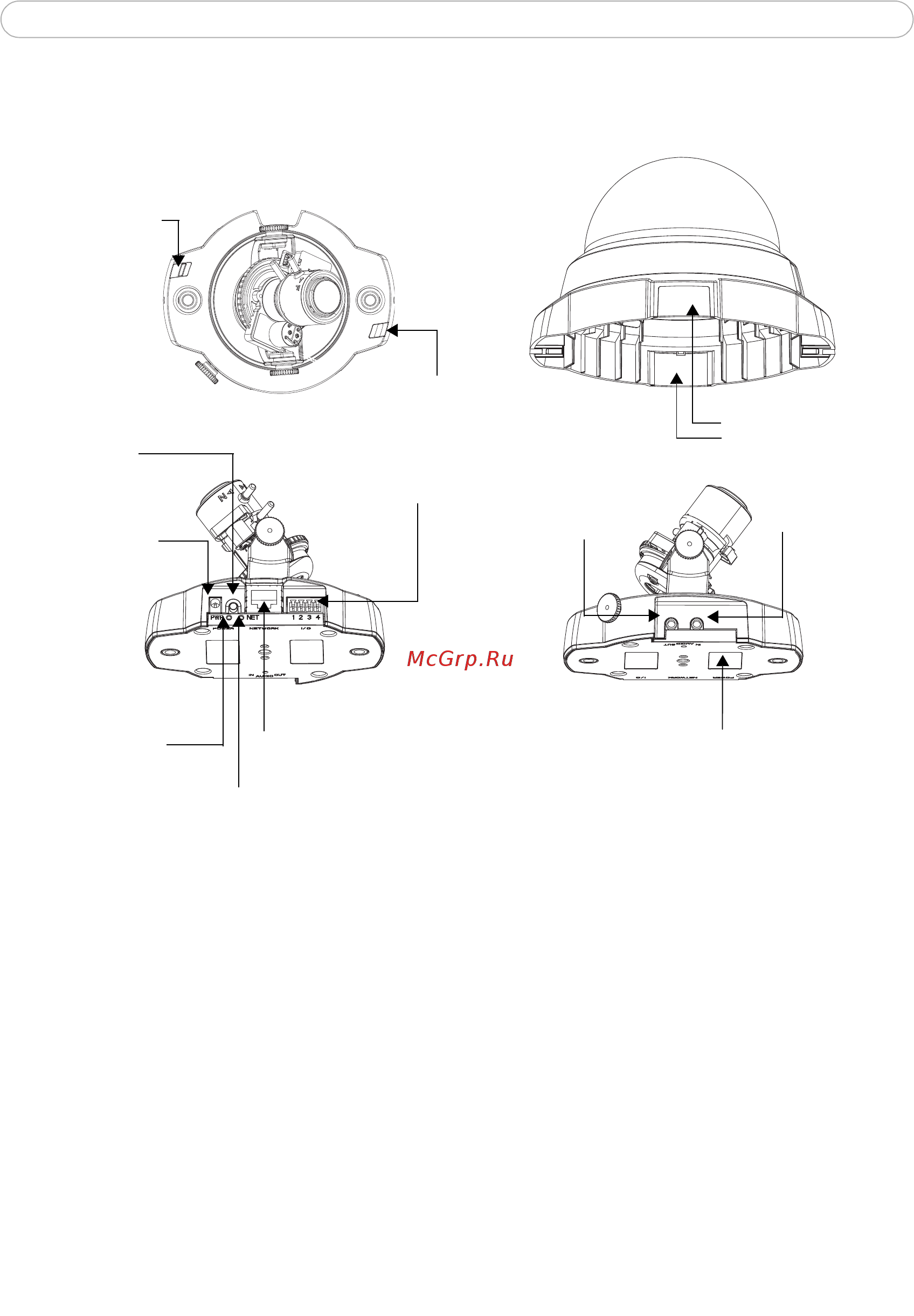

Network camera overview
Microphone - built-in microphone. This can be disabled by inserting a plug in the 'Audio
in' connector.
Power Connector -
for connection of the PS-H power adapter (included).
I/O Connector - the I/O
terminal connector provides the physical interface to one transistor
output, one digital input and an auxiliary connection point for DC power. For more
information, see The I/O Terminal Connector,
on page 47.
Network Connector -
The camera connects to the network via a standard network
connector. Supporting NWAY, the camera detects the speed of the local network segment
(10BaseT/100BaseTX Ethernet). Supporting PoE (Power over Ethernet), the camera can be
powered directly from the network cabling.
Network
connector
Serial number (S/N)
Please make a note of the
The serial number is required
during the installation.
serial number and retain
for future reference.
Power
I/O terminal
connector
Dome casing
connector
Camera unit
Power
indicator
Network
indicator
Audio Out
Audio In
Status
indicator
Microphone
(LED)
(LED)
(LED)
Control
button
Cover
plates
and PoE
