e) The wall in direct contact with the back panel of the

cooker must be made of non-flammable materials.

Connecting the gas

The appliance should be connected to the mains or to a

gas cylinder in compliance with current directives. Before

making the connection, check that the cooker is regulated

for the gas supply you are using. If not, follow the

instructions indicated in the paragraph “Adapting to

different types of gas”. On some models the gas supply

can be connected on the left or on the right, as necessary;

to change the connection, reverse the position of the hose

holder with that of the cap and replace replace the gasket

(supplied with the appliance). When using liquid gas from

a cylinder, install a pressure regulator which complies with

current directive.

Important: check that the supply pressure complies with

the values indicated in table 1 “Characteristics of the

burners and nozzles” since this will ensure safe operation,

correct consumption and ensure a longer life to your

appliance.

Connection with hose

Make the connection using a gas hose complying with

the the characteristics provided in current directive. The

internal diameter of the pipe used is as follows:

- 8mm for liquid gas;

- 13mm for methane gas.

When installing the hose, remember to take the following

precautions:

• No part of the hose should touch parts whose tempe-

rature exceeds 50°C;

• The length of the hose should be less than 1500 mm;

• The hose should not be subject to twisting or pulling,

and should not have bends or kinks.

• The hose should not touch objects with sharp edges,

any moving parts, and it should not be crushed;

• The full length of the hose should be easy to inspect in

order to check its condition;

Check that the hose fits firmly into place at the two ends

and fix it with clamps complying to current directive.If any

of the above recommendations can not be adopted, flexible

metal pipes should be used.

Should the cooker be installed according to the conditions

of Class 2, subdivision 1, only a flexible metal pipe which

is in compliance with current safety standards should be

used to make the connection to the gas mains.

Connecting a flexible jointless stainless steel pipe

to a threaded attachment

Remove the hose holder fitted on the appliance. The gas

supply pipe fitting is a threaded 1/2 gas cylindrical male

attachment. Only pipes and gaskets complying with current

directives. The full length of the pipe must not exceed 2000

mm.

Tight control

Important: when installation has been completed, check

the pipe fitting for leaks with a soapy solution. Never use a

flame. Once the connection has been made, ensure that

the flexible metal tube does not touch any moving parts

and is not crushed.

Connecting the supply cable to the mains

Install a normalised plug corresponding to the load

indicated on the data plate. When connecting the cable

directly to the mains, install an omnipolar circuit-breaker

with a minimum contact opening of 3 mm between the

appliance and the mains. The omnipolar circuit breaker

should be sized according to the load and should comply

with current regulations (the earth wire should not be

interrupted by the circuit breaker).

The supply cable should be positioned so that it does not

reach a temperature of more than 50°C with respect to

the room temperature, along its length. Before making the

connection, check that:

• the limiter valve and the home system can support the

appliance load (see data plate);

• the mains is properly earthed in compliance with

current directives and regulations;

• there is easy access to the socket and omnipolar circuit

breaker, once the hob has been installed.

N.B: never use reducers, adaptors or shunts since they

can cause heating or burning.

Adapting the cooker to different types of gas

In order to adapt the cooker to a different type of gas with

respect to the gas for which it was produced (indicated on

the label attached to the lid), follow these steps:

a) replace the hose holder mounted on the appliance with

that supplied in the bag of “cooker accessories”.

Important: the hose holder for liquid gas is marked 8, the

hose holder for methane gas is marked 13. Always fit the

sealing gasket.

b) Replacing the burner nozzles on the hob:

• remove the grids and slide the burners from their

housings;

• unscrew the nozzles using a 7 mm socket spanner,

and replace them with nozzles for the new type of gas

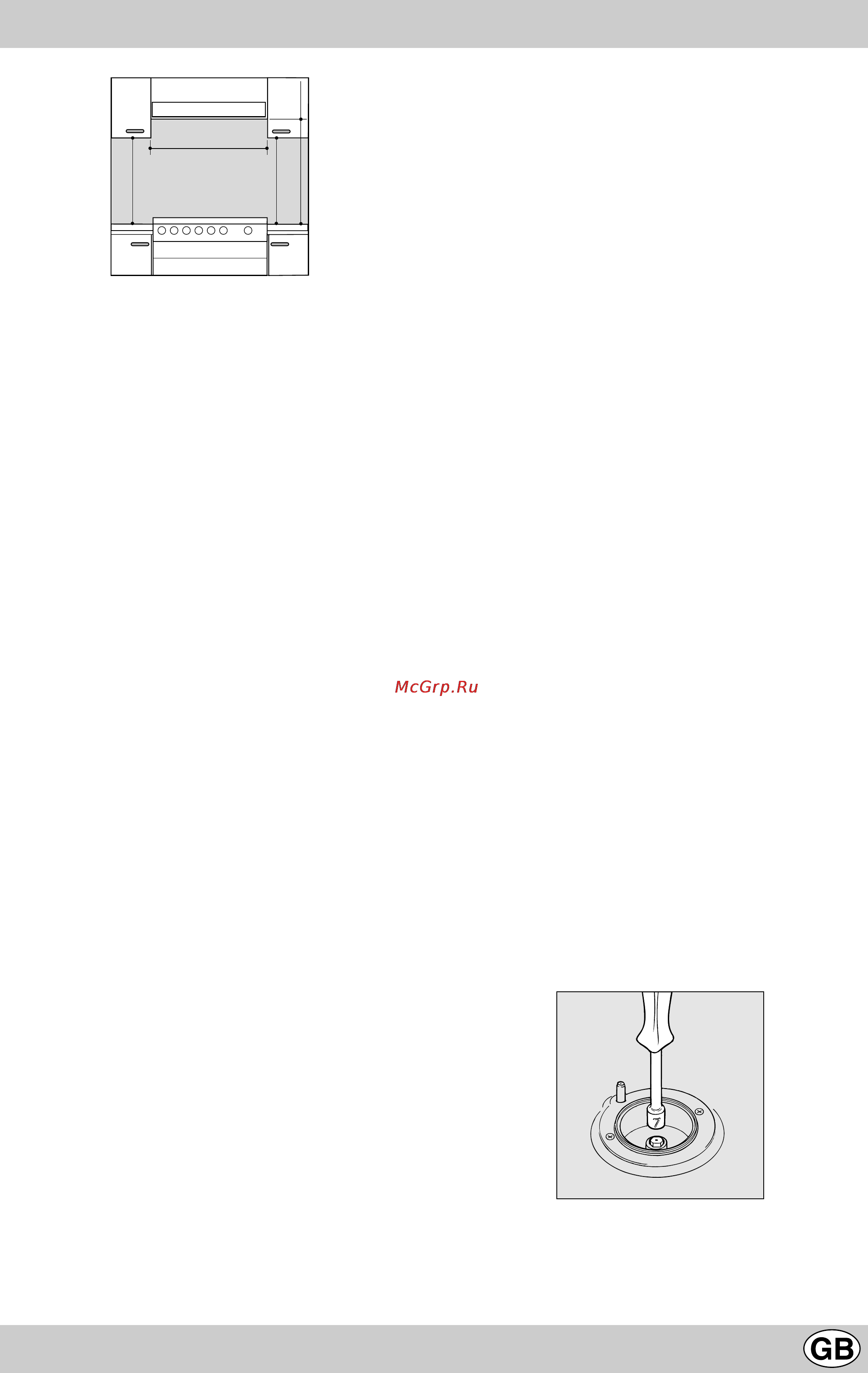

HOOD

420

Min.

min.

650

mm. with hood

min.

700

mm. without hood

mm.

600

Min. mm.

420

Min. mm.
