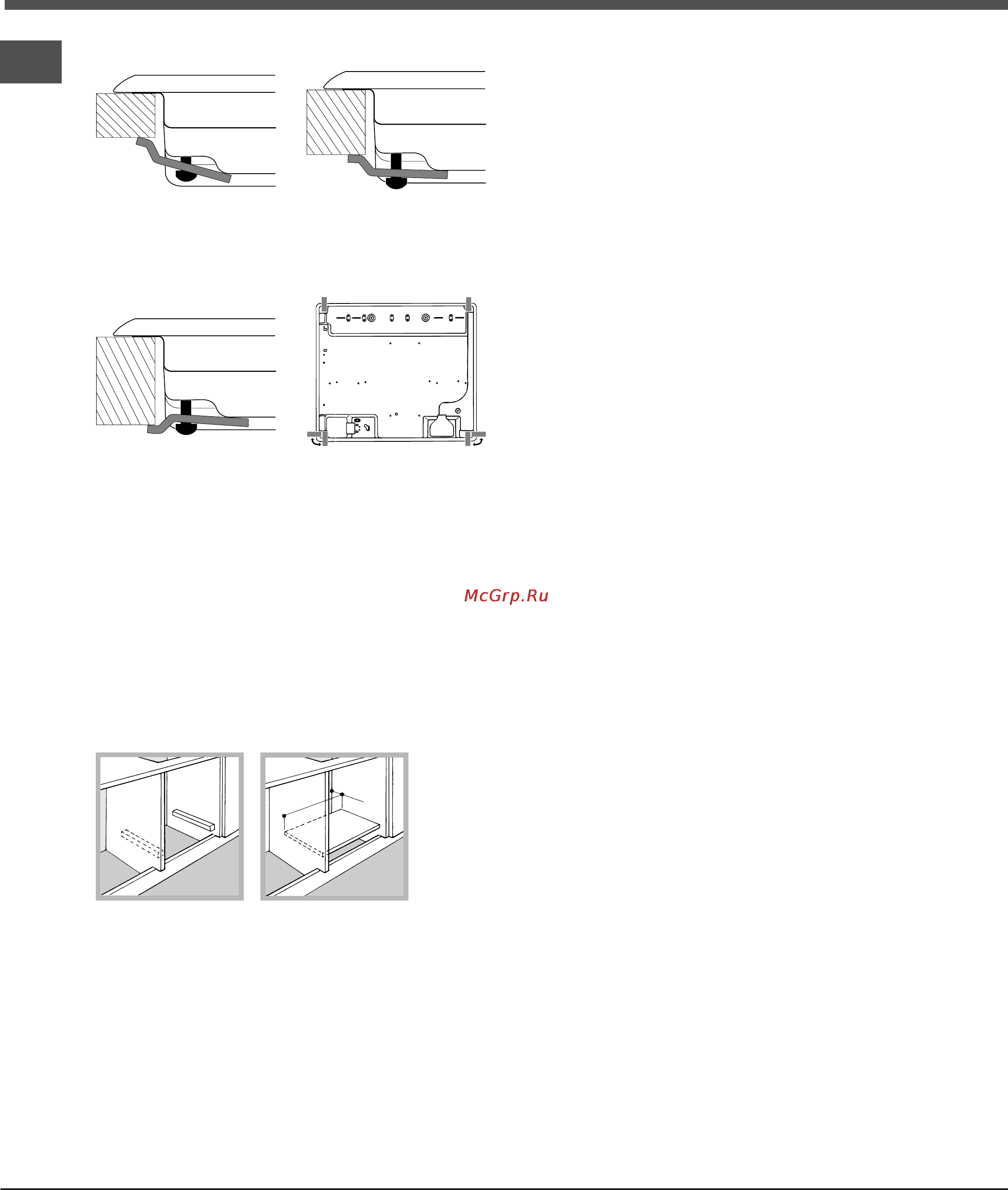

Hook fastening diagram

Hooking position Hooking position

for top H=20 mm for top H=30 mm

Front

Hooking position Back

for top H=40 mm

 Use the hooks contained in the accessory pack

 Where the hob is not installed over a built-in oven, a

wooden panel must be installed as insulation. This

must be placed at a minimum distance of 20 mm from

the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the

cabinet must be removed. It is advisable to install the

oven so that it rests on two strips of wood, or on a

completely flat surface with an opening of at least 45 x

560 mm (see diagrams).

! The hob can only be installed above built-in ovens with a

cooling ventilation system.

Electrical connection

Hobs equipped with a three-pole power supply cable are

designed to operate with alternating current at the voltage

and frequency indicated on the data plate (this is located

on the lower part of the appliance). The earth wire in the

cable has a green and yellow cover. If the appliance is to

be installed above a built-in electric oven, the electrical

connection of the hob and the oven must be carried out

separately, both for electrical safety purposes and to

make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load

indicated on the data plate.

The appliance must be directly connected to the mains using

an omnipolar circuit-breaker with a minimum contact opening

of 3 mm installed between the appliance and the mains. The

circuit-breaker must be suitable for the charge indicated and

must comply with current electrical regulations (the earthing

wire must not be interrupted by the circuit-breaker). The

supply cable must not come into contact with surfaces with

temperatures higher than 50°C.

 The installer must ensure that the correct electrical

connection has been made and that it is compliant with

safety regulations.

Before connecting to the power supply, make sure that:

 The appliance is earthed and the plug is compliant with

the law.

 The socket can withstand the maximum power of the

appliance, which is indicated on the data plate.

 The voltage is in the range between the values indicated

on the data plate.

 The socket is compatible with the plug of the appliance. If

the socket is incompatible with the plug, ask an

authorised technician to replace it. Do not use extension

cords or multiple sockets.

 Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

 The cable must not be bent or compressed.

 The cable must be checked regularly and replaced by

authorised technicians only (see Assistance).

 The manufacturer declines any liability should these safety

measures not be observed.

Gas connection

The appliance should be connected to the main gas supply

or to a gas cylinder in compliance with current national

regulations. Before carrying out the connection, make sure

the cooker is compatible with the gas supply you wish to

use. If this is not the case, follow the instructions indicated in

the paragraph Adapting to different types of gas.

When using liquid gas from a cylinder, install a pressure

regulator which complies with current national regulations.

560 mm.

45 mm.
