GB
16

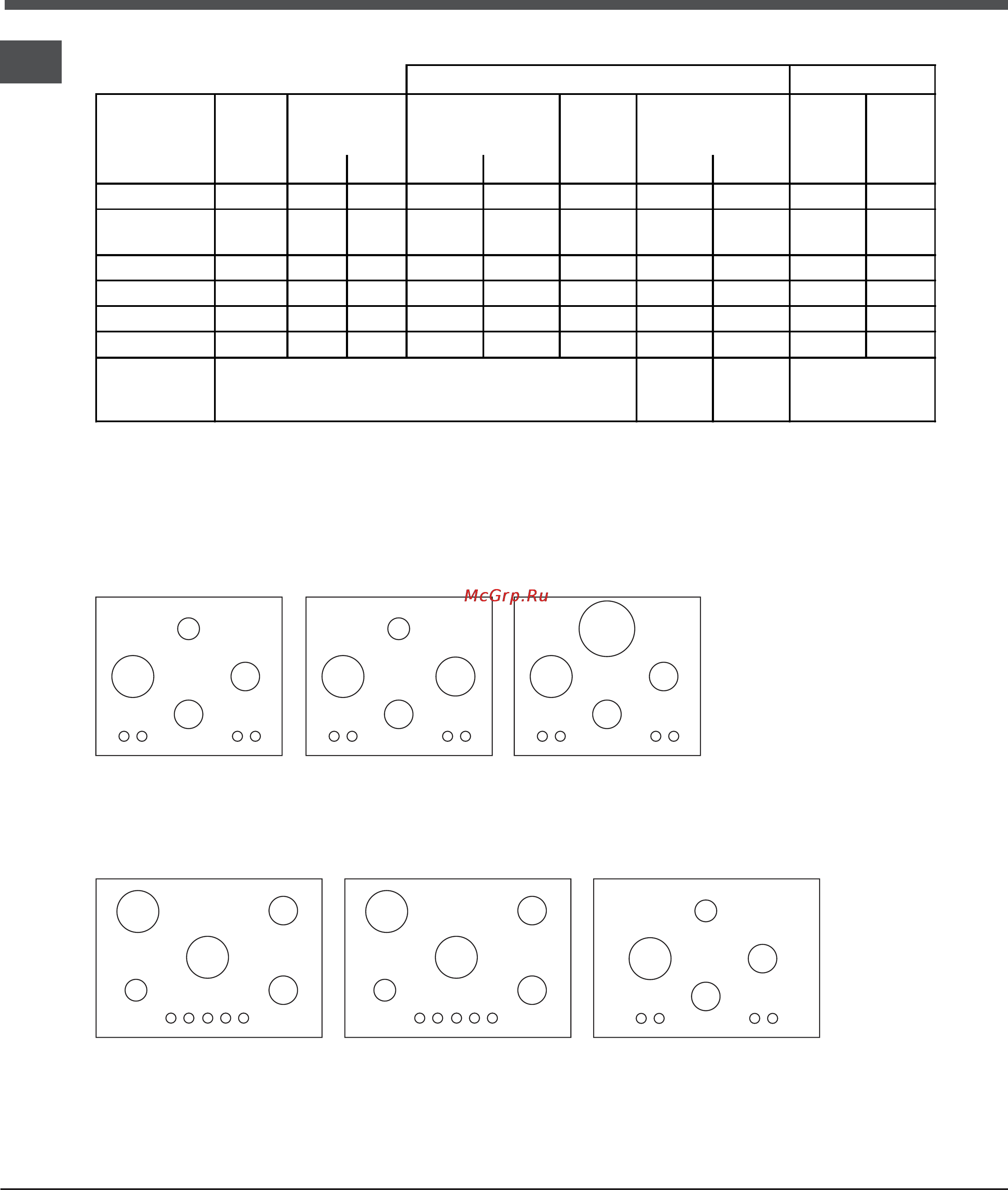

Burner and nozzle specifications
Table 1
Liquid Gas Natural Gas
Burner Diameter
(mm)
Thermal power
kW (p.c.s.*)
By-Pass
1/100
(mm)
Nozzle
1/100
Flow*
g/h
Nozzle
1/100
Flow*
l/h
Nomin. Ridot. (1) (mm) *** ** (mm)
Fast (R)
100 3,00 0,70 41 39 86 218 214 116 286
Reduced Fast
(RR)
100 2,60 0,70 41 39 80 189 186 110 248
Ultrarapid (UR)
100 3,40 0,70 41 39 91 247 243 123 324
Semi Fast (S)
75 1,65 0.40 30 28 64 120 118 96 157
Auxiliary (A)
55 1,00 0,40 30 28 50 73 71 79 95
Mini WOK (MW)
110 3,50 1,30 - 57 91 254 250 138 333
Supply
Pressures
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
28-30
20
35
37
25
45
20
17
25
* At 15°C and 1013 mbar-dry gas
** Propane P.C.S. = 50.37 MJ/kg.
*** Butane P.C.S. = 49.47 MJ/kg.
Natural P.C.S. = 37.78 MJ/m
3
(1) Only for appliances with the security device.
Ø 145
S
RS
A
S
RS
A
S
RR MW
A
UR
RR
S
S
A
MW
RR
S
S
TD 750 S IX/HA TD 751 S GH/HA
TQ 751 S GH/HA
TQ 751 S IX/HA
TZ 751 S /HA
TD 640 IX/HA
TD 640 S GH/HA
TD 640 S IX/HA
TQ 640 S GH/HA
TQ 640 S IX/HA
TZ 640 S /HA
A
S
RS
TD 740 S IX/HA
TD 641 S IX/HA TD 631 S IX/HA
