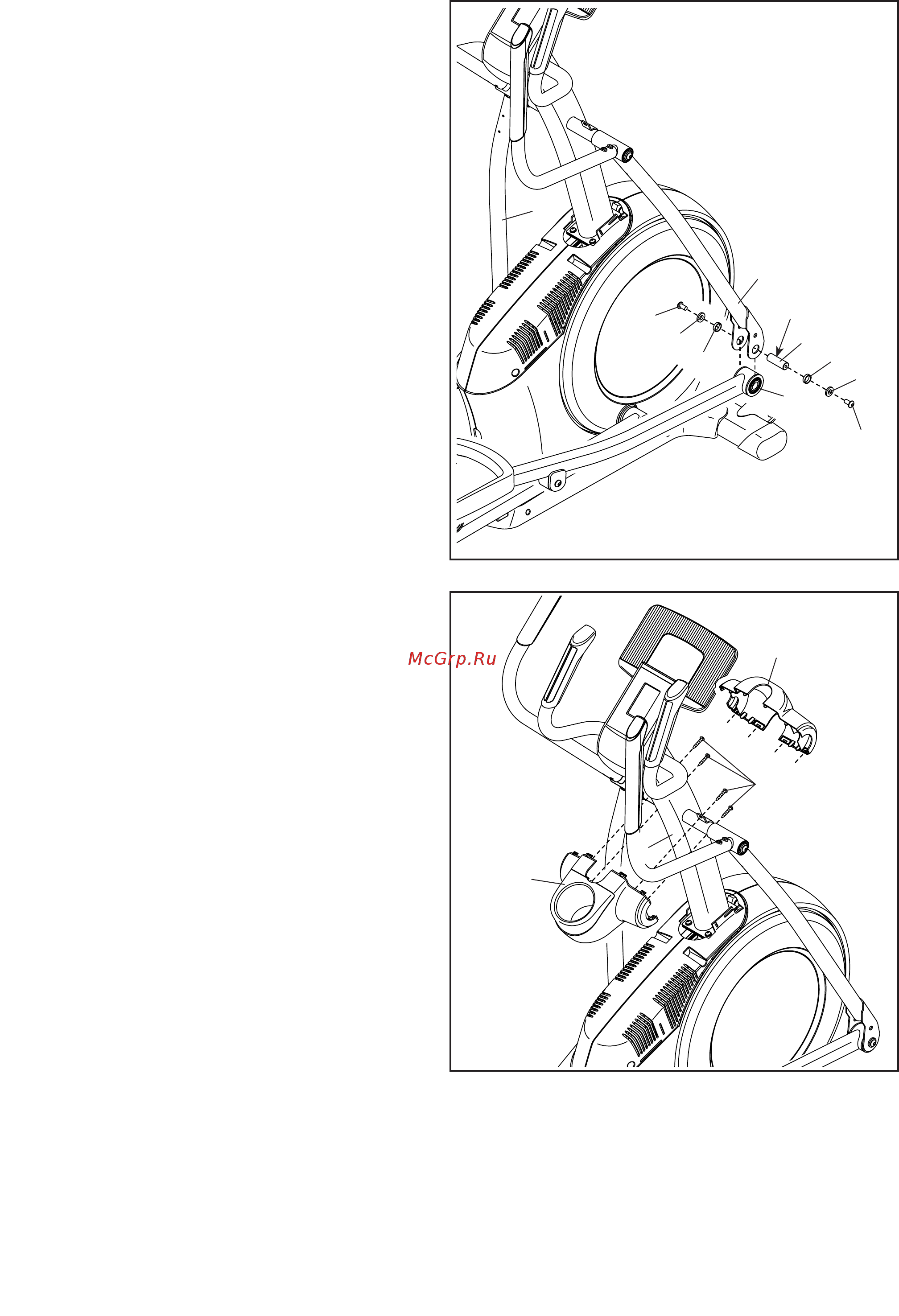

14. Orient the Rear Upright Cover (81) as shown.

Attach the Rear Upright Cover (81) to the Upright

(4) with four M4 x 16mm Screws (101); start all

the Screws, and then tighten them.

Next, orient the Front Upright Cover (12) as

shown.

Attach the Front Upright Cover (12) around the

Upright (4) by pressing the hooks on the Rear

Upright Cover (81) onto the tabs on the Front

Upright Cover.

101

13. Apply a small amount of grease to one of the

Pedal Arm Axles (64).

Next, slide an M8 Washer (97) and an Axle

Spacer (77) onto an M8 x 13mm Screw (82), and

tighten the Screw a few turns into the Pedal Arm

Axle (64).

While a second person holds the front end of the

Right Pedal Arm (58) inside the bracket on the

Right Upper Body Leg (60), insert the Pedal Arm

Axle (64) into both parts.

Slide an M8 Washer (97) and an Axle Spacer

(77) onto another M8 x 13mm Screw (82), and

tighten the Screw a few turns into the Pedal Arm

Axle (64). Then, tighten both Screws at the

same time.

Repeat this step on the other side of the

elliptical.

Grease
