General
F2030 is equipped with an internal electronic control
that handles those functions that are necessary for
operation of the heat pump, for example defrosting,
stop at max/min temperature, connection of the
compressor heater as well as enabling the heater for
the condensation watering trough and monitoring of
pressure switches.
The temperatures, number of starts and the operating
time can also be read.
The integrated controller is set during installation and
can be used during a service.
Under normal operating conditions the home owner
does not need to have access to the controller.
F2030 has an integrated return line sensor that limits
the return temperature.
F2030 can also be switched on/off via signals from
other control equipment or a thermostat. If F2030 is
controlled from a NIBE indoor module (accessory) the
control is described in the instructions supplied.
The indoor module communicates with NIBE SMO or
F2030 which means that settings and measurement
values from F2030 can be adjusted and read in the in-
door module.
Navigation

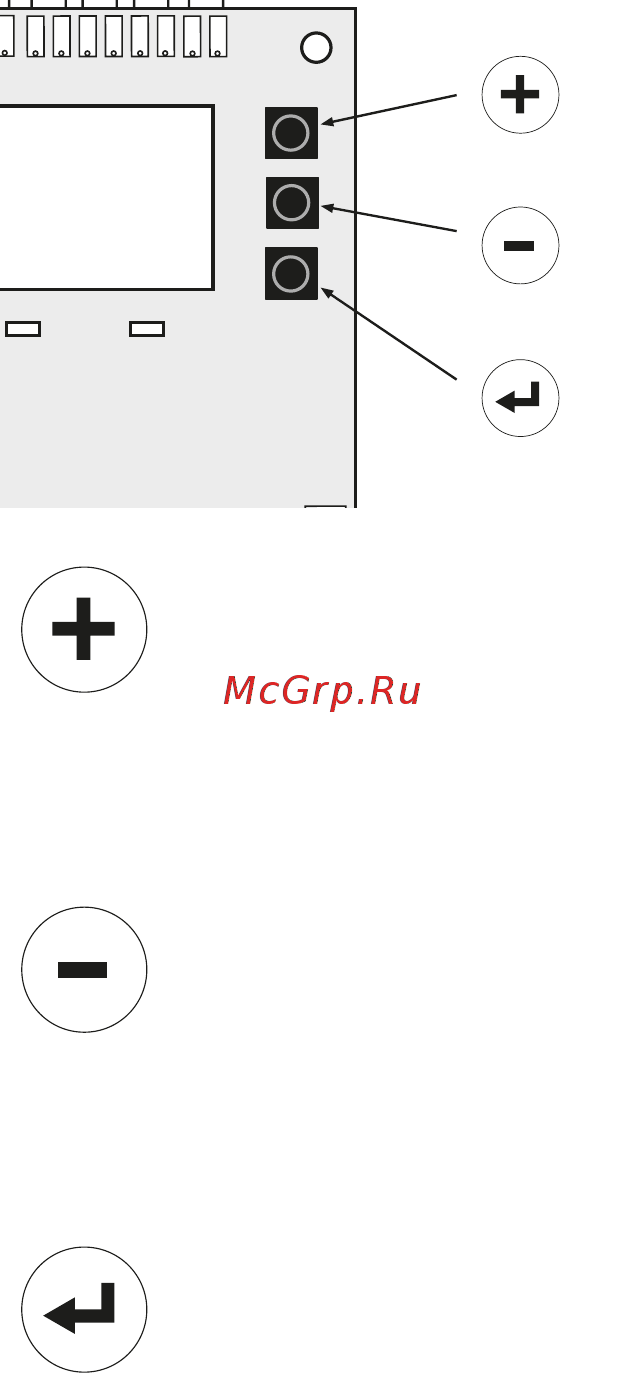

34
Plus button
The plus button (S1) is used to browse
through the channel system (forwards) or
raise the value of the selected parameter.
See the section “Control” – “Channel descrip-
tion”
Minus button
The minus button (S2) is used to browse
through the channel system (backwards) or
lower the value of the selected parameter.
See the section “Control” – “Channel descrip-
tion”
Enter button
The Enter button (S3) is used to activate and
confirm value changes.
See the section “Control” – “Channel descrip-
tion”
To modify a value, first press the Enter button to activ-
ate modification mode, the value flashes. Adjust the
value as required using the Plus button or Minus but-
ton. Holding the Plus button or Minus button in for
about 3 seconds speeds up the change in value. Then
confirm using the Enter button. The value will stop
flashing.
The instructions are divided into three parts: status,
temperatures and adjustable values.
Quick movement between the different types is carried
out by pressing the enter button when STATUS, TEMP.
or ADJUST. are displayed.
