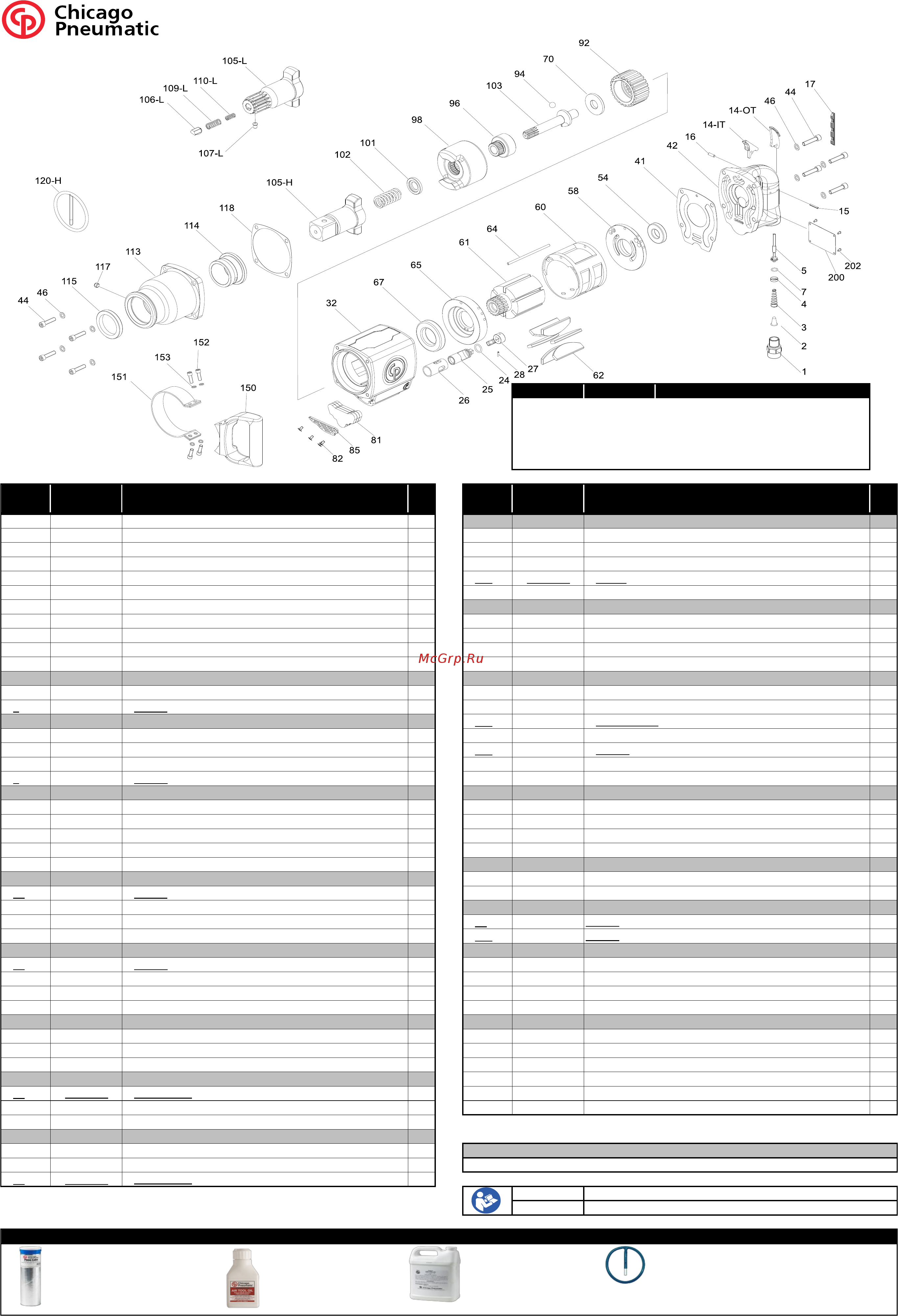

CP6120-D35H/L Series
Impact Wrench 1-1/2" / Spline #5
Model C
Item Bond
1 / 42 Loctite 243 P 88-95 N.m 65-70 ft.lbs
44 / 32 - P 27-30 N.m 20-22 ft.lbs
82 / 32 Loctite 243 P 3-4 N.m 2-3 ft.lbs
115 / 113 Loctite 262 -
117 / 113 Loctite 243 P 2.3-2.8 N.m 1.7-2.1 ft.lbs
Item No. Part No Description Qty. Item No. Part No Description Qty.
32 2050562363
Housing-Motor 1
I 6153990650 Timing Shaft Kit
60 C117064 Liner 1 70 C117055 Washer
1
61 C117066 Rotor 1 94 Ball-Steel
1
62 C117056 Blade 6 101 C117051 Seat-Spring
1
92 C117061 Coupling 1 102 C117054 Spring
1
96 C117060 Cam-Dog 1 103 C117067 Shaft-Timing
1
98 C117068 Dog 1 J 2050563143 Socket Retainer Kit (Spline #5)
105-H C117620 Anvil-Square Drive 1
106-L
Plunger 1
105-L C117069 Anvil-Spline # 5 (Including Kit: J) 1
107-L
Button-Lock 1
120-H C134694 Ring-Retaining 1" 1/2 Dia 86Mm 1
109-L
Spring 1
2050557643 Label-Warning
1
110-L
Spring 1
A 2050563053 Air Inlet Kit K 6153990660 Clutch Housing Ass'Y
1 Throttle Cap 1
113
Housing-Clutch 1
2 Screen 1
114 2050563313
Bushing 1
B 6153990580 Throttle Valve Kit
115
Seal- Grease 1
3 Throttle Spring
1
117
Plug-Pipe 1
4 Retainer-O Ring
1
118
Gasket 1
5 Valve-Throttle
1
44 S062777
Screw 4
7 O-Ring
1
46 2050557513
Lock Washer 4
C 6153990590 Trigger Kit L 6153990670 Side Handle Kit
14-IT Trigger-Inside
1
150
Handle-Support 1
14-OT Trigger-Outside
1
151 Spacer-Band 1
15 Pin
1
152 Screw 4
16 Pin-Roll
1
153 Lock Washer 4
17 Cover-Trigger Slot
1
M 6153990680 Nameplate Kit
D 6153990600 Rear Handle Kit 200 Nameplate
1
41 Gasket
1
202 Screw-Drive
4
42 Handle-Rear
1
N 6153990690 Gasket Kit
44 Screw
4
41
Gasket 1
46 Lock Washer
4
118
Gasket 1
E 6153990610 Reverse Valve Kit O 2050563193 Screws Kit
24 O-Ring
1
44 Screw
8
25 Valve-Reverse
1
46 Lock Washer
8
27 Lever-Reverse Valve
1
152 Screw 4
28 Pin-Roll
1
153 Lock Washer 4
F 6153990620 Exhaust Kit P 6153990700 Small Parts Kit
81 Muffler 1 15 Pin
1
82 Screw 4 16 Pin-Roll
1
85 Plate-Exhaust 1 17 Cover-Trigger Slot 1
G 6153990630 Rear Endplate Ass'Y 28 Pin-Roll
1
54
C075812 Bearing-Ball 1
64 Pin-Dowel 1
58
Plate-Upper End 1
117 Plug-Pipe 1
64
Pin-Dowel 1
H 6153990640 Front Endplate Ass'Y
64
Pin-Dowel 1
6153990710 TUNE UP KIT
65
Plate-Lower End 1
Incl. item Nos. 2, 7, 24, 41, 46, 62, 81, 115, 118
67 C117047
Bearing-Ball 1
2050563243 Operator'S Manual
6159948710 Safety Instructions
Recommended accessories
Pneu-lube Clutch Grease Protecto-lube Oil Airoilene Oil Retaining Rings
(for clutch lubrication) (to clean motor parts) (for air lubrication) C134693 2-7/8" - 73mm
8940158455 (3.5 oz. - 100g) CA149661 (4 oz - 0.12 l) P089507 (1 gal - 3.8 l) C134694 3-3/8" - 86mm
8940158456 (14 oz. - 400g) CA000046 (20 oz - 0.59 l) C134695 3-7/8" - 98mm
C134696 4-3/8" - 111mm
Spare parts without part number are not sold separately. High wear parts are underlined.
Contact us at www.cp.com
2050563253 Rev. 05
06/2018
